Ricoh AF-5 User manual

www.butkus.us

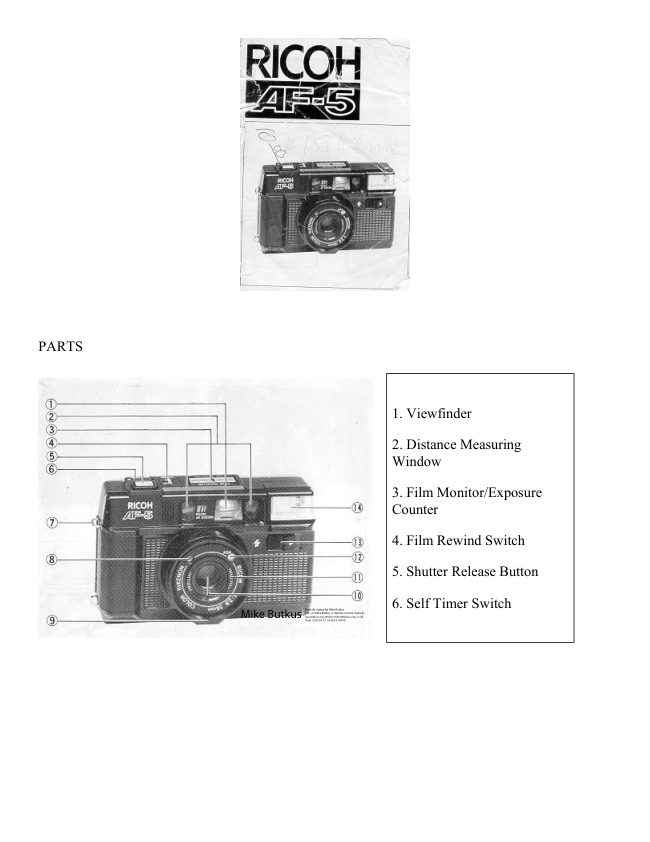

                                                                 7. Strap Eyelet

                                                                 8. Photocell

                                                                 9. Shutter Release Lock
                                                       Button

                                                           10. Lens

                                                           11. Film Speed Ring

                                                           12. Film Speed Window

                                                           13. Flash Unit Switch




14. Built-in Flash Unit
                                        21. Film Rewind Release Button
15. Viewfinder Eyepiece
                                        22. Tripod Socket
16. Flash Ready Lamp
                                        23. Sprocket
17. Film Rewind Shaft
                                        24. Film Take-up Spool
18. Film Chamber
                                        25. Film Check Window
19. Battery Compartment Cover
                                        26. Finger Rest
20. Film Guides



We are most gratified that you have selected the RICOH AF-5. All you have to do is point the

camera at the subject you wish to photograph and press the shutter release button. Focusing and
exposure are done automatically. In addition, film loading, advance and rewinding are also
automatic, so that everyone can enjoy this easy to use camera.

Please read these instructions carefully before you use the camera.

INSERTING THE BATTERIES

This camera will not operate unless the batteries are inserted. It is important to install the batteries
properly.

1. Push the Battery Compartment Cover in the direction of the arrow <~3 to open. (Fig. 1 )

2. Insert two batteries, checking that the + and - on the batteries are lined up correctly, according to
the polarity diagram inside the battery compartment. (Fig. 2)

3. Close the Battery Compartment Cover by pushing it in the direction of the arrow. (Fig. 3)

Batteries to use Two Alkaline penlight batteries or Two Manganese penlight batteries.

· Do not use Nickel Cadmium batteries.

· Please remove the batteries from the camera when you do not use the camera for a long period of
time.

www.butkus.us

CHECKING THE BATTERIES

Remove the Lens Cap before you check the batteries. If the lens cap is left on, a safety device will
operate to prevent the Shutter Release Button from being activated.

* Make sure the Shutter Release Button is not pressed in when you are removing the lens cap, as a
frame may be taken in error.

1. Cover the Photocell (small glass window next lens) with your hand, and press the Shutter
Release Button in halfway. (Fig. 4)

2. If the red Camera Shake Warning Signal ~ in the Viewfinder blinks, then the batteries are in
working order. (Fig. 5)

In normal temperatures (at 20 C and with new Alkaline batteries) without using the Flash Unit,
approximately 70 rolls of 36 exposure film can be taken. If the Flash Unit is used for every frame,
then 7 rolls of 36 exposure film can be taken. Please change both batteries to new ones of the same
kind in the following cases:

A. The red Camera Shake Warning Signal Undoes not blink when you have covered the Photocell
with your hand and the Shutter Release Button is pressed in.

B. The shutter cannot be released (remember to remove the Lens Cap).

C. The Flash Ready Lamp takes more than 30 seconds to light up.

D. The Film Advance or Film Rewind does not operate.

E. The batteries have been in the camera for more than one year (even without using the camera,
batteries will run down naturally).

· Generally, in cold conditions, the capacity of the batteries decreases, and in some cases, the
camera may not operate properly. You should either warm the batteries or keep a spare set in your
pocket, inserting them just before you use the camera. Incidentally, batteries that have lost their
capacity in cold temperatures, will recover in normal temperatures, so do not throw them away.

3. Flash Ready Lamp
When the flash is fully charged and ready for shooting, this lamp will light up.

4. Auto-Focus Frame
The Auto-Focus Frame focuses automatically on the subject that lies within it.

5. Zone Marks
These marks indicate the focusing distances. When the ; mark blinks, then the subject is too close
to the camera. You should move further away from the subject.

6. Camera Shake Warning Signal
If this lamp blinks when the Shutter Release Button is pressed halfway, then you should change to
flash photography.

www.butkus.us


SHOOTING ON AUTO-FOCUS

1. Set the subject you wish to take within the Auto-Focus Frame in the center of the Viewfinder.
(Fig. 16)

2. When you press the Shutter Release Button halfway, the Zone Marks will light up to indicate the
focusing distance. If the mark blinks, you should move back a little as the camera is too close to the
subject. (Fig. 17)

3. If the Camera Shake Warning Signal does not light, gently press the Shutter Release Button in
fully to take the picture. The film will advance automatically as soon as the shutter has been
released. (Fig. 18)

· Please be careful not to cover the Distance Measuring Window at the front of the camera
accidentally, as the focusing will not be correct.

· Please keep the Distance Measuring Window clean so that the focusing is accurate. If it gets dirty,
please wipe it clean with a sob cloth.

· There may be rare cases where the subject cannot be properly focused.

(For instance, subjects that do not reflect light well, glossy subjects, or subjects taken through
glass.)

Shooting Distance
For subjects that are less than 1 m away from the camera, it is not possible to obtain a sharp focus.

PRE-FOCUS SHOOTING

When the subject you wish to focus on is outside the Auto-Focus Frame, or if the subject is difficult
to focus on, you should use the "prefocus" feature.

When the subject is outside the Auto-Focus Frame

1. If you want to photograph two people, there may be cases where neither of them can be set
within the Auto-Focus Frame in the center of the Viewfinder. If you release the shutter, the
background will be in focus, and the people which are the main subject will be out-of-focus. (Fig.
19)

2. Move the camera so that one of the people is within the AutoFocus Frame. (Fig. 20)

3. Press the Shutter Release Button halfway so that the Zone Mark lights up and the focusing
distance is indicated. Keep your finger pressed down on the Shutter Release Button. (Fig. 21 )

4. Return the camera to its former position so that both people are in the Field of View Frame, then
press the Shutter Release Button fully to take the picture. (Fig. 22)





When the subject is difficult to focus on

1. When you take subjects that are difficult to focus on, find another subject at about the same
distance from the camera. Use that subject in the same way as described above.

· When you remove your finger from the Shutter Release Button, prefocusing will be cancelled, so
you can then go on to focus again as many times as you wish.

REWINDING THE FILM

When the end of the film has been reached, an electronic sound will be emitted. Please rewind the
film immediately.

1. Push the Film Rewind Release Button on the underside of the camera. (Fig. 23)

www.butkus.us

2. Push the Film Rewind Switch on the top of the camera in the direction of the arrow. (Fig. 24)

3. As you rewind the film, the Exposure Counter will run backwards. When the "S" appears in the
Exposure Counter window, slide the Film Rewind Switch back to its former position. Film
rewinding is now completed and you can unload the film. (Fig. 25)

· Do not open the back cover until the "S" has appeared in the Exposure Counter window.

FLASH PHOTOGRAPHY


Change to flash photography when the Camera Shake Warning Signal (   ) in the Viewfinder
blinks when the Shutter Release Button is pressed halfway.

1. Push the Flash Unit Switch in the direction of the arrow ~ and the Flash Unit will pop up turning
the power source on automatically. (Fig. 26)

2. Check that the Flash Ready Lamp in the Viewfinder is lit, then take the picture. (Fig. 27)


Flash photography distance Shooting range:

1 m/3.3 ft - 4.3 m/14.1 ft (ASA100)

1 m/3.3 ft - 5.2 m/17 ft (ASA400)

1.4 m/4.6 ft - 5.5 m/18.2 ft (ASA1000)

· Always push the Flash Unit back in when not in use. (If it is left up, the batteries will wear out
faster.)

· If the Shutter Release Button is kept pressed halfway with the Flash Unit on, the Flash Unit will
not be charged. Allow the flash to charge by removing your finger from the shutter release.

· Be careful not to put your finger in front of the flash window.

· If the Shutter Release Button is pressed before the Flash Ready Lamp lights up, the picture will be
under-exposed.

· You can use the Flash Unit as a fill-in light for daytime photography too.

USING THE SELF-TIMER

1. Slide the Self-Timer Switch fully in the direction of the arrow. (Fig. 28)

2. When the Shutter Release Button is pressed, an electronic sound will be emitted. The shutter will
be released about 10 seconds later. (Fig. 29)

3. When you have finished using the Self-Timer, please slide the Self-Timer Switch back to its
former position. (Fig. 30)

· If you wish to cancel the Self-Timer, slide the Self-Timer Switch back to its former position.

· When using the Flash Unit together with the Self-Timer, press the Shutter Release Button only
after the Flash Ready Lamp is lit.

www.butkus.us

OTHER FEATURES

1. Shutter Release Lock
When the lens cap is put on, the shutter will be locked. This is a convenient mechanism that
prevents you taking a picture with the lens cap in place, or releasing the shutter by mistake. (Fig. 31
)

2. Film Check Window
You can confirm whether a film is loaded or not by looking through the Film Check Window. (Fig.
32)

3. Diopter Correction
There is a Diopter Correction Adapter to enable people who are near or far sighted to see more
clearly through the viewfinder. Please use the Diopter Correction Adapter for the RICOH SLR
cameras. It slides on the Viewfinder Eyepiece. (Fig. 33)





MAJOR SPECIFICATIONS

Type: 35 mm lens shutter type with automatic focusing

Lens: 38 mm F2.8 Color Rikenon lens, 4 elements 3 groups filter diameter 46 mm

Focusing: Automatic focusing with pre-focus facility.

       Distance measuring (shooting) range 1 m - 00

Shutter: Programmed A type electronic shutter.

Self-timer: Built-in. Operating delay of approx. 10 sees.

Viewfinder: Albada type with bright frame viewfinder (with parallax correction marks).
Magnification: 0.46 X Field of View 83%, Diopter Correction Adapter can be attached.

Viewfinder information: Field of View Frame, Parallax Correction Marks, Auto-Focus Frame,
Zone Marks, Camera Shake Warning Signal, Flash Ready Lamp.

Exposure Adjustment: With Cds Photocell, Exposure Coupling Range EV6 - EV17 (ASA 100)

Film Speed Range: ASA 25 ~ ASA 1000

Film Advance/Rewind: By electric motor with Film Check Window

Film Loading: RICOH Auto-Load system

Exposure Counter: Additive, reversed when rewinding

Built-in Flash: Flash photography by turning of Flash Unit Switch

Guide Number: 12 (ASA 100)m. Exposure adjustment through flash-matic system.

Interval between flashes: About 7 seconds

Number of shots possible: With new Alkaline batteries (under normal temperatures of 20 C)

Without using flash unit: more than 70 rolls of 36 exposure film.

     When using the flash unit repeatedly: more than 7 rolls of 36 exposure film.

Power Source: 2 penlight Alkaline batteries or 2 penlight Manganese batteries

     Do not use Nickel Cadmium batteries)

Dimensions: 129 mm (W) x 79 mm (H) x 55 mm (D)

Weight: 330 g (without batteries)

Specifications and appearance of this camera are subject to change without notice.
