[- Congratulations on your choice of the Zenza Bronica ETR single
lens reflex camera which will offer you high quality performance,
handling convenience and versatility required for professional pho-
tography. The Zenza Bronica ETR has been developed as a complete
modular "system" camera, with a very high degree of interchange-
ability in lenses, finders, focusing screens, film backs, etc. At the same
time, it has a full range of other valuable accessories which will permit
its use in many other day-to-day assignments, requiring a fast-handling
camera with complete exposure automation.
To get best results from your camera, may we suggest that you read
this instruction manual carefully, before you even touch the camera.
Thoroughly familiarize yourself with its working parts, before loading
your fir.st roll of film, and your pleasure in using the Zenza Bronica
ETR will be even greater.View original page 2Page 3 · Read text
www.butkus.us

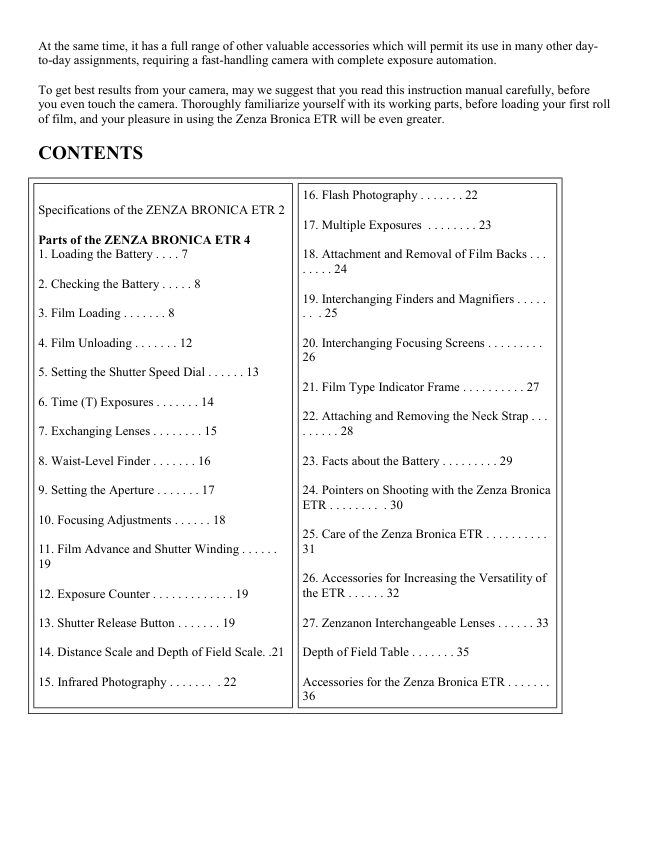

Gontents
Specifications of the
ZENZA BRONICA ETR ...2 17. Multiple Exposures . .23
Parts of the ZENZA BRONICA ETR ...4 18. Attachment and Removal of
1. Loading the Battery. . . ...7 Film Backs. . .24
2. Checking the Battery . . ...8 19. lnterchanging Finders and
3. Film Loading . . ...8 Magnifiers . .25
4. Film Unloading . .12 20. lnterchanging Focusing Screens . .26
5. Setting the Shutter Speed Dial . . .13 21. Film Type lndicator Frame . . . . .27
6. Time (T) Exposures. . .14 22. Attaching and Removing the
7. Exchanging Lenses. . .15 NeckStrap ...28
8. Waist-Level Finder. ..16 23. Factsaboutthe Battery . . . . . . . .29
9. Setting the Aperture . .17 24. Pointers on Shooting with
10. Focusing Adjustments . . . .18 theZenza Bronica ETR ..30
11. Film Advance and Shutter Cocking .19 25. Care of the Zenza Bronica ETR . . . . . . .31
12. Exposure Counter .19 26. Accessories for lncreasing
13. Shutter Release Button. .19 theVersatilityofthe ETR. . . . . . .32
14. Distance Scale and Depth of Field Scale. .21 27. Zenzanon lnterchangeable Lenses . .33
15. lnfrared Photography. . . .22 Depth of Field Table . .35
16. Flash Photography. . . .22 Accessories for the Zenza Bronica ETR . . . . . 36
oView original page 3Page 4 · Read text
specifications of the zENzA BRoNlcA ETR
Type 4.5cm x 6cm format lens shutter single lens reflex
camera. with interihangeable lens, film back, finder and
focusing screen systems.
1 :1 .29 closely Frame size 42.5mm x 55.1mm (side/length ratio of
matches standard paper and reproduction sizes)
Film 120 roll film (15 exPosures)
Standard lens Zenzanon E 75mm F2.8 lens; interchangeable type; 5
elements in 4 groups; multi-layer anti'reflection coated;
50o angle of view; F22 minimum aperture, helical focus-
ing from inf. to 60cm.(2 ft.)
Filter size 58mm diameter screw mount on 75mm lens; 62mm di-
ameter screw mount on lenses from 40mm to 250mm
focal lengths.
Lens mount Exclusive four-claw Bronica bayonet mount.
Lens diaphragm Fully automatic instant reopening lens diaphragm
action; equal-distant aperture scale graduations; depth
of field previewing.
Shutter Electronic control SEIKO *b between-lens leaf shutter;
shutter speeds 8 sec. to 1/500 sec. plus T (time ex-
posures); mechanical control setting 1/500 sec.
Multiple exposure Multiple exposures possible with lever on body.
Film back Daylight loading interchangeable type, exclusive backs
for 12O 115 exposures) and 22O (3O exposures) roll
fims,70mm (90 exposures) film and Polaroid film pack'
(Supplied with 120 roll film back.)
@View original page 4Page 5 · Read text
www.butkus.us
F inder lnterchangeable waist-level focusing hood; single_action
opening/closing; flip-up interchangeable type magnifier
(standard magnifier --1.s diopter)l tinder magnification
with 75mm lens 1.25x.
Focusing screen lnterchangeable type; standard type has split_image
rangefinder spot surrounded by microprism ring; matie
center with full-area fresnel lens type also available.
Accessory mount Exclusive Bronica accessory mount on left side of body.
Flash synchronization X-setting (up to l/500 sec.)
Battery checking Battery check button plus green-colored LED light on
top of body.
Battery Single 6-volt silver oxide battery (Eveready No. b44,
UCAR No. 544 or Matlory No. pX-28).
Dimensions 11Omm U412"1wide x 106mm (4-114,,llhish x t57mm
16-114"1 long (with standard lens and waist-Gvet finder).
Weight 1,346 grams (2.9 lbs.): ETR camera with waist level
finder and 75mm F2.8 lens
493 giams (1 lb.): ETR body onty (with battery)
326 grams 111.4 oz.l: 12O roll film back only
417 grams (14.6 oz.l: Tbmm F2.8 lens only
1 10 grams (3.8 oz.): Waist level finder oniyView original page 5Page 8 · Read text
www.butkus.us
Neck strap stud Battery check button.
Film plane mark
Mike Butkus DigitallyDN:ou=Butkus.org,email=mike@butkus.org,Date:cn=Mike2025.12.20signedButkus,by17:42:49Mikeo, Butkusc=US-05'00'
utter release button
Manual film winder rip shutter locking ring Lens release dut Neck strap stud
release connection locking ring Flash synch contact
Motor drive contacts release socket Film back release
Bron ica accessory mount buttonView original page 8Page 10 · Read text
www.butkus.us
LoEdinE:.the,,Befiert
A. The electronically-controlled B. Depress the battery chamber C. Coincide the polarity marks
shutter will not work without button with your finger while, (+) (-) on the battery with load i ng the battery. at the same time, moving the similiar polarity indications in
The shutter will be mechanically- battery chamber cover in the the battery chamber. Then,controlled, without a battery, arrow-indicated direction and push in the negative end of theand will be released at 1 /s0d the cover will come off. battery first and follow with
sec., regardless of the setting on the positive end.
the shutter speed dial. I nsert the battery chamberUse one silver oxide battery cover into place, by first insert-
(EVEREADY No.544 or equiv- ing the end marked BATTERY.
alent). Then move the cover opposite* The battery can be purchased arrow-indicated to thein most photographic supply tion until it locks. direc-
or electrical appliance stores. * Should the battery be re-
versed, the shutter will only work
mechanically at 1/500 sec. O ]View original page 10Page 11 · Read text
