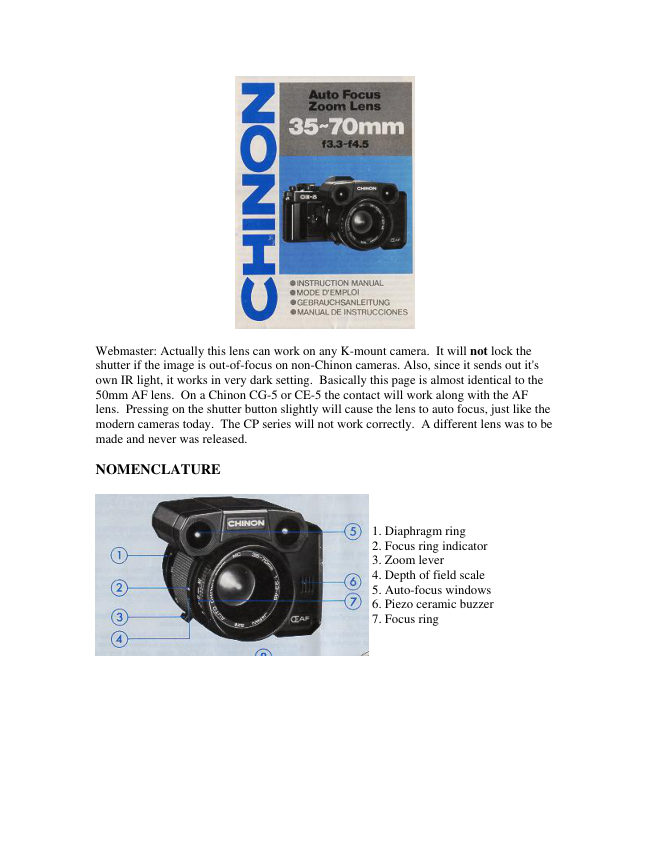

Chinon AF 35-70 Zoom User manual

Webmaster: Actually this lens can work on any K-mount camera.  It will not lock the
shutter if the image is out-of-focus on non-Chinon cameras. Also, since it sends out it's
own IR light, it works in very dark setting. Basically this page is almost identical to the
50mm AF lens. On a Chinon CG-5 or CE-5 the contact will work along with the AF
lens. Pressing on the shutter button slightly will cause the lens to auto focus, just like the
modern cameras today. The CP series will not work correctly. A different lens was to be
made and never was released.

NOMENCLATURE



                                                          1. Diaphragm ring
                                                          2. Focus ring indicator
                                                          3. Zoom lever
                                                          4. Depth of field scale
                                                          5. Auto-focus windows
                                                          6. Piezo ceramic buzzer
                                                          7. Focus ring

8. Bayonet mount
                                                          9. Auto-focus contacts to camera
                                           body
                                                    10. F stop index mark
                                                    11. In-focus LED (Green)/Battery
                                              check lamp
                                                    12. Focusing panel
                                                    13. Battery chamber cover
                                                    14. Sound signal switch
                                                    15. Auto-focus button
                                                    16. Power switch



INTRODUCTION
Welcome to the world of CHINON photography.
Chinon has developed a new infrared auto focus system which permits stepless operation
even in total darkness.

How It Works:

An infrared Light Emitting Diode (LED) sends out an infrared beam to the subject. The
beam is then reflected back to the cameras internal infrared receiving sensor. The angle at
which the infrared reflected beam is received indicates the camera-to-subject distance via
triangulation. A micro servo motor positions the receiving sensor which in turn positions
the lens in or out to the correct setting. All this technology takes place at lightning speed,
so the lens is correctly positioned at the press of a button.
Unlike other infrared auto focus systems that select predetermined focus zones, the
CHINON AUTO-FOCUS LENS is entirely stepless between 1 m (3.3ft) and infinity (oo).
Another key feature of the Chinon Infrared System is a cancelable prefocus lock that
allows you to position the focused subject anywhere in the viewfinder. To safeguard the
infrared system from ambient infrared sunlight, the infrared beam oscillates at the
frequency of 12,500 cycles per second.

Your new Chinon 50 mm auto focus lens is perfect when shooting under adverse lighting
conditions. With the 50 mm AF you do not have to worry about the often time consuming
task of focusing.

CARE OF THE AUTO-FOCUS LENS:
Your CHINON auto-focus lens is a precision instrument. Used with care, it will provide
years of service. Protect your lens from dirt, rain, dampness, and excessive heat. Avoid
touching the lens. To clean the lens wipe it gently with a soft lintless cloth or lens tissue.
Do not use eyeglass tissues as they might damage the coating. Occasionally clean the
autofocus windows with a camel hair brush. When you are storing the lens for a long

period of time (more than three months), always be sure to remove the batteries from the
battery chamber.

NOTE: DO NOT place your 35-70mm AF lens near a strong magnetic filed (i.e. TV, or
radio). This might permanently affect the accuracy of the AF system.


SPECIFICATIONS:
System: Infrared Automatic Focusing System (Capability of Manual Focusing)

Auto Focus Indicator: Built-in with red and green LED





Auto Focus Audible Signal with On/Off Control: Built-in (piezo ceramic buzzer)

Auto Focus Button: Built-in. When depressing Auto Focus Button, automatically set
the lens to the focus position and indicate you by the green LED and audible signal.

Focus Range: Stepless operation from 1 m (3.3 ft) to no

Aperture Range: F/3.3 - F/22

Battery Check: Built-in via GREEN LED

Battery: 3 AAA size Alkaline batteries (LR03: 1.5V x 3) operate the auto focus unit

Lens: Chinon F/3.3 - 4.5 35-70 mm multi-coated zoom lens

Lens Construction: 7 elements in 7 groups

Filter Size: 52mm

Lens Mount: Chinon Bayonet Mount (K-mount, Pentax K, Ricoh K)

Dimensions: 101(W) x 83(H) x 88 (L) mm ( 3.97 x 3.26 x 3.48)

Weight: 630 grams (22.22 oz) without batteries


INSTALLING THE BATTERIES:
Turn the lock at the bottom of the auto focus unit to the "O" position and remove the
battery chamber cover (fig. 1). Insert three "AAA" 1.5 V Alkaline batteries (LR03) into
the battery chamber. Each battery must be positioned correctly to correspond with the
plus (+) and minus (-) signs indicated in the compartment (fig.2). After each battery is
positioned, lock the cover by turning to the "C" position.





NOTE: Since the batteries rapidly loose power at low temperature, we suggest that you
carry a fresh set of batteries. They should be placed inside your coat to be help warm.

BATTERY TESTING:
The battery condition can be checked by pushing the autofocus button (battery check
button) and holding it for 4-5 seconds. The battery check LED (green) on the focusing
panel will illuminate if the battery voltage is sufficient (fig.3).





NOTE: The battery check LED (green) on the focusing panel will not illuminate if the
batteries are installed incorrectly.

MOUNTING THE LENS:

1. Remove the rear lens cap from Chinon auto-
                                      focus lens (fig.4).



                                            2. Remove the lens or body cap from your
                                  camera body (fig. 5).





3. Attach the auto-focus lens in the same manner as you would attach any other lens
(fig.6).





AUTO FOCUSING:

                               Look through the viewfinder and center the
                                        subject by utilizing the split image with
                                   microprism collar in the viewfinder. Depress the
                                      auto-focus button, the focus ring will rotate
                                       automatically until the subject is in focus (fig.7).
                               The direction of rotation will be displayed on the
                                      focusing panel by a red arrow. When the camera
                                                 is in focus, the in-focus LED on the top of the
                                      auto-focus unit will light up and you will hear a
                                    "beep" sound if the sound signal switch is in the
                             "ON" position (fig.8). Once the lens is in focus,
                                        the lens will automatically stop and you may
                                 remove your finger from the auto-focus button.

NOTE: It is recommended when setting the auto-focus mode that apertures between F/4
- 22 are selected. For your convenience these lens opening are engraved in green. When
lighting conditions require larger lens openings we suggest checking the focus with the
focusing grid in the viewfinder. DO NOT cover the auto-focus windows with your
fingers. Otherwise, the lens will not focus properly.

MANUAL FOCUS:
Your Chinon auto-focus zoom lens can also be operated manually in the normal manner.
When the subject is located less than 1 M (3.3 ft.) you have to focus me subject manually.
When focusing manually, set the power switch to me "OFF" position.

The following subjects should be avoided when using your 50 mm AF lens in the auto
focus mode:

* Shiny subjects such as water surfaces or exterior of a car. Since the AF system sends
out a beam of infrared light, these surfaces will deflect the beam, resulting in improper
focus. These subjects can be focused either manually or by ensuring that the shiny
reflective surface is directly perpendicular to the infrared beam. You can manually check
the auto-focus operation in these situations by viewing the split image range finder.

* Subjects through a glass window. In most instances if the 50 mm AF lens is beyond 2
cm from the glass surface, the AF beam will not penetrate and incorrect focusing may
result.

* Non-reflectable subjects (smoke, fog, etc.) Just as beam of light from a flash light will
pass through these subjects, so will the infrared beam of your 50mm AF lens.

Should you have to take pictures under the above conditions, you may focus the camera
manually or estimate the camera-to-subject distance.


AUTO FOCUSING:

1. Set the power switch (on the back lens) to the "ON" position.

2. Look through the viewfinder and center your subject in the split micro prism center
spot. Set the aperture in accordance with the information obtained by the camera (fig. 7).

3. Depress the auto-focus button, me focus ring will rotate automatically until me subject
is in focus. When used with the Chinon CE-5 or CG-5 35 mm SLR cameras; operate the
film advance lever and depress the shutter release button hallway, the focus ring will
notate automatically to me correct focusing position (fig. 8).

4. The direction of rotation will be displayed on the focusing panel by a red arrow. When
me image is in focus, the in-focus LED on top of the auto-focus unit will light up and you
will hear a beep sound if the sound signal is set to me "ON" position.

NOTE: When me subject is too close to be auto focused, (when the subject is located less
than 1 M (3.3 ft), a continuous audible signal will be emitted, signaling manual focusing
is required.

FOCUS LOCK: (Non CG or CE-5 cameras)
If you should desire to have your subject "off center" in the picture, first center the
subject and focus as previously described, then, remove your finger from the auto-focus
button. The focus will automatically lock. Next, recompose your picture with the subject
in the desired position in the viewfinder and depress the shutter release button (fig.9).

(CG-5 or CE-5 models)
If you should desire to have your subject "off center" in the picture, first center the
subject and focus as previously described, then, without removing your finger from the
auto-focus button or the shutter release button, compose your Picture with the subject in
the desired position in the viewfinder, and then depress the shutter release button (fig. 9).

APERTURE SETTING, EXPECIALLY FOR THE FLASH
PHOTOGRAPHY
For your 35-70mm auto-focus zoom lens, align the aperture setting to the green F stop
index mark when the focal length is set for 35mm. Align the aperture setting to the
yellow F stop mark when the focal length is set for 70mm.

INFRARED PHOTOGRAPHY:
When using infrared film, an extra focusing adjustment must be made manually. After
focusing, note the figure that is adjacent to the green indication line on the distance scale
(fig 10 ) then' move that figure over to the red infrared mark engraved on the lens. This
adjustment is only required for black and white infrared film. When using color infrared
film, focus in the normal way. See Fig. 10 above.





                                       NOTE: Read the
                                                               instructions packed with the
                                                              infrared film for further
                                                           information.





NOTE: All accessories can be used on your 50 mm AF lens, however, the following
three accessories are not recommended.

1. Close-up lens

2. Lens hood

3. Extension Tubes

NOTE: When the lens must be used with one of the above accessories, focusing must be
adjusted manually.

NOTE: Filters such as polarizes, starburst or any other type which requires rotation to
achieve desired effects, should be adjusted AFTER the AF lens has been focused.
