Chinon Auto 6001 / 5501 User manual

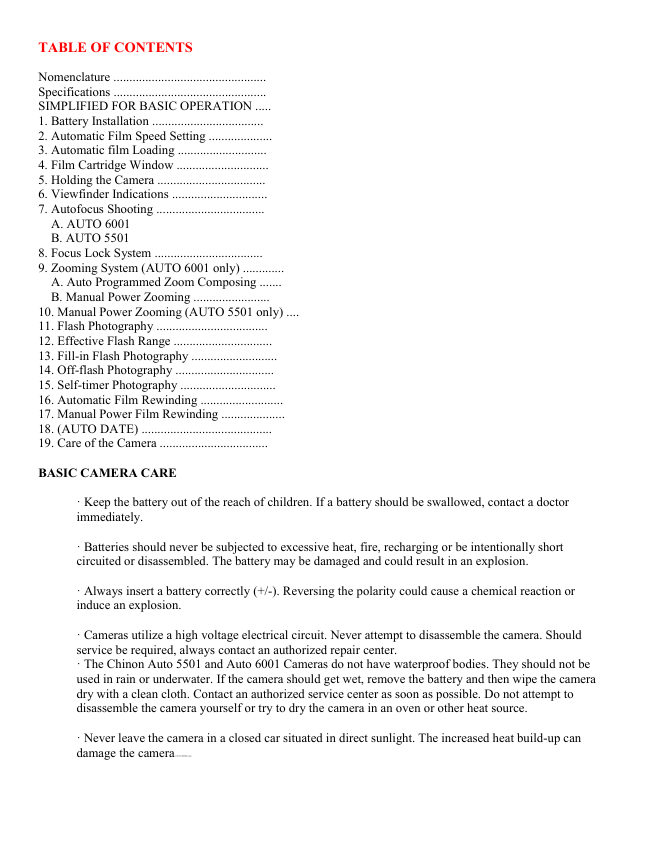

TABLE OF CONTENTS

Nomenclature ................................................
Specifications ................................................
SIMPLIFIED FOR BASIC OPERATION .....
1. Battery Installation ...................................
2. Automatic Film Speed Setting ....................
3. Automatic film Loading ............................
4. Film Cartridge Window .............................
5. Holding the Camera ..................................
6. Viewfinder Indications ..............................
7. Autofocus Shooting ..................................
  A. AUTO 6001
  B. AUTO 5501
8. Focus Lock System ..................................
9. Zooming System (AUTO 6001 only) .............
  A. Auto Programmed Zoom Composing .......
  B. Manual Power Zooming ........................
10. Manual Power Zooming (AUTO 5501 only) ....
11. Flash Photography ...................................
12. Effective Flash Range ...............................
13. Fill-in Flash Photography ...........................
14. Off-flash Photography ...............................
15. Self-timer Photography ..............................
16. Automatic Film Rewinding ..........................
17. Manual Power Film Rewinding ....................
18. (AUTO DATE) .........................................
19. Care of the Camera ..................................

BASIC CAMERA CARE

         · Keep the battery out of the reach of children. If a battery should be swallowed, contact a doctor
       immediately.

         · Batteries should never be subjected to excessive heat, fire, recharging or be intentionally short
        circuited or disassembled. The battery may be damaged and could result in an explosion.

         · Always insert a battery correctly (+/-). Reversing the polarity could cause a chemical reaction or
       induce an explosion.

         · Cameras utilize a high voltage electrical circuit. Never attempt to disassemble the camera. Should
       service be required, always contact an authorized repair center.
         · The Chinon Auto 5501 and Auto 6001 Cameras do not have waterproof bodies. They should not be
       used in rain or underwater. If the camera should get wet, remove the battery and then wipe the camera
       dry with a clean cloth. Contact an authorized service center as soon as possible. Do not attempt to
       disassemble the camera yourself or try to dry the camera in an oven or other heat source.

         · Never leave the camera in a closed car situated in direct sunlight. The increased heat build-up can
      damage the camera.www.4.butkus.org

· The neck strap of the camera may cause injury to small children. Always keep the camera safely stored
       out of the reach of small children.



NOMENCLATURE

1. Manual rewind button

2. Self-timer button

3. Main switch

4. Shutter release button

5. Self-timer indication LED

6. Lens

7. Exposure metering window

8. Viewfinder

9. Flash

10. Flash mode button

11. Auto focus window

12. Film type window

13. Back cover

14. Take up spool

15. Film type mark

16. Battery compartment cover

17. Viewfinder eyepiece





18. Power zoom button (Tale/Wide)

19. Film guide

20. Film chamber

21. Automatic film speed setting contacts

22. Film rewind shaft

23. Tripod socket

24. Frame counter

25. OK monitor (Green) LED

AUTO 6001 SPECIFICATIONS

MAIN FEATURES: -35 mm compact zoom camera

-2 stage Auto program zoom system

-Multi AF system

-Auto DX sensing programmed AE

-Fully motorized film transport

-Built-in sensor flash

-Built-in electronic self-timer

-Long life lithium battery

FILM TYPE: 35 mm film cartridge

PICTURE SIZE: 24x36 mm

LENS: Aperture ratio: F/3.6-7.9

Focal length: f/38 mm-90 mm

Lens construction: 8 elements in 7 groups

Zooming: 2 modes: 2 stage auto program zoom mode: Day light zoom program, Low light zoom program;
  Manual power zoom mode

FINDER: Type: Actual imaging zoom finder

  Magnification: 0.39-0.86x

  Coverage: 82%

  Diopter: - 1.0

Finder indications: Auto focus frame, parallax compensation mark, LED Indication: OK monitor (Green
LED),
   light on - "OK indication, blinking - near distance warning, light off - flash charging/low power

FOCUSING SYSTEM: Type: Multi infrared auto focusing system;

AF effective range: W: 1.0 m (39.5") - inf., T: 1.1 m (43.5~) - inf. Prefocus and cancelable

SHUTTER: Type: Stepping motor controlled chargeless shutter

Type of shutter release: Electromagnetic release

Shutter speed range: Approx. 1/4 sec.-1/300 sec.

EXPOSURE DIETER: Type: Programmed AE

Photocell: CdS

Exposure range: Normal program mode: W: EV9.5 - 17, T: EV 11.8 - EV 19.3

Flash program mode: W: EV 6-17, T: EV 8.3 - EV 19.3

Film speed sensing: Automatic for DX films, ISO 100, 200, 400, 1000: ISO 100 for DX films

TRANSPORTATION: Film loading: Auto loading

First frame setting: Automatic setting when the film door is closed

Film winding: Motorized winding

Film rewinding: Motorized rewinding

Rewinding actuation: Automatic

Rewinding stop: Automatic

Rewind button: Yes

Frame counter: ~ Built-in

FLASH: type: Sensor flash

Flashmatic: Yes

Auto recharging: Yes

Flash GN: 14 (ISO 100. meter)

Effective range: Auto program zoom mode: 1.0-6.6 m (39.5' - 21 .6')

Effective range: W: 1.0-6.6 m (39.5"-21.6'), T: 1.1-3.0 m (43.5~-9.84')

Recycle time: Approx. 4 sec.

Fill flash: Yes

Off flash: Yes

Slow synchro: Yes

OTHER FEATURES: Power source: Lithium battery pack (2CR5 x 1 ): replaceable     4www .butkus.org

Battery check: Yes

Film door window: Built-in

Tripod screw: Built-in: Universal 1/4~'

Self-timer: Built-in: approx. 10 sec.

Auto power shut off: Yes

Strap: Attachable

Lens filter: Built-in sky-light filter

Size: 138 (W) x 77 (H) x 70 (D) (5.4x3.0x2.7)

Weight: 380 9 (13.3 ounces)




AUTO 5501 SPECIFICATIONS

MAIN FEATURES: -35 mm compact Zoom camera

-Infrared Auto focusing system

-Auto DX sensing programmed AE

-Fully motorized film transport

-Built-in sensor flash

-Built-in electronic self-timer

-Long life lithium battery

FILM TYPE: 35 mm film cartridge

PICTURE SIZE: 24x36 mm

LENS: Aperture ratio: F/3.6-7.9

Focal length: f/38 mm-90 mm

Lens construction: 8 elements in 7 groups

Zooming: Manual power zoom

FINDER: Type: Actual imaging zoom finder

Magnification: 0.39-0.86x

Coverage: 82%

Diopter: - 1.0

Finder indications: Auto focus frame, parallax compensation mark

LED Indications: OK monitor (Green LED), light on - "OK" indication, blinking - near distance warning,
   light off - flash charging/low power

FOCUSING SYSTEM: Type: Infrared auto focusing system: 18 steps

AF effective range: W: 1.0 m (39.5 )—inf., T: 1.1 m (43.5") inf.

Prefocus and cancelable

SHUTTER: Type: Stepping motor controlled chargeless shutter

Type of shutter release: Electromagnetic release

Shutter speed range: Approx. 1/4 sec. -1/300 sec.

EXPOSURE METER: Type: Programmed AE

Photo cell: CdS

Exposure range: Normal program mode: W: EV9.5 - 17, T: EV 11.8-19.3

Flash program mode: W: EV 6-17, T: EV 8.3-19.3

Film speed sensing: Automatic for DX films, ISO 100, 200, 400, 1000; ISO 100 for non DX films

TRANSPORTATION: Film loading: Auto loading

First frame setting: Automatic setting when the film door is closed

Film winding: Motorized winding

Film rewinding: Motorized rewinding

Rewinding actuation: Automatic

Rewinding stop: Automatic

Rewind button: Yes

Frame counter: Built-in

FLASH: Type: Sensor flash

Flashmatic: Yes

Auto recharging: Yes

Flash GN: 14 (ISO 100. meter)

Effective range: W: 1.0-6.6 m (39.5~-21.6'), T: 1.1-3.0 m (43.5 -9 84 )

Recycle time: Approx. 4 seconds

Fill flash: Yes

Off flash: Yes

Slow synchro: Yes

OTHER FEATURES: Power source: Lithium battery pack 12CR5x1): replaceable       4www.butkus.org

Battery check: Yes

Film door window: Built-in

Tripod screw: Built-in: Universal 1/4"

Self-timer: Built-in: approx. 10 seconds

Auto power shut off: Yes

Strap: Attachable

Lens filter: Built-in sky-light filter

Size: 138 (W) x 77 (H) x 70 (D) (5.4 x 3.0 x 2.7)

Weight: 380g (13.3 ounces)

Simplified guide for basic operation

(AUTO 6001 AND AUTO 5501)

1. Install lithium battery (Fig. A).

        2. With the AUTO 6001, slide the main switch to the "AUTO" position (Fig. B). With the AUTO 5501,
        slide the main switch to the "POWER" position.
3. Load the film correctly and close the back door (Fig. C).
        4. Be sure the frame counter shows "1" in the frame counter window (Fig. D).

        5. Direct the AF mark toward your subject (Fig. E).





        6. Release the shutter by pressing the shutter release button gently (Fig. F).

        7. Automatic film rewinding starts at the end of the roll. The frame counter will show "S" upon
       completion (Fig.  G).www.4.butkus.org

8. Remove the exposed film (Fig. H).

1. Battery installation (AUTO 6001 and AUTO 5501)





       (1 ) Use a coin and turn it toward the arrow mark to unlock the battery cover. Open the battery cover by
        sliding it away from the camera (Fig. 1).

        (2) Place a 6 volt lithium battery (2CR5) in the battery compartment in accordance with the positive (+)
      and the negative (-) marks shown inside (Fig. 2).

        (3) Slide the battery cover back to its closed position and lock the battery cover (Fig. 3)





Note:

When the shutter release is locked or when winding/rewinding becomes extremely slow replace the battery with
a new one.

Battery performance declines in cold temperatures. Keep the camera as warm as possible in cold weather.

         - The lithium battery will last about three years when used at a frequency of one roll of film of 24
       exposures with 50% use of flash on a monthly basis, at room temperature. (Chinon Laboratory Testing)
2. Automatic film speed setting (AUTO 6001 and AUTO 5501)

The film speed is automatically set when using a DX-coded film of ISO 100 to ISO 1000

(Fig. 4). Non DX film will be set to ISO 100. When using reversal film (Slide Film), use films of ISO 100, 200,
400, or 1000.


3. Automatic film loading (AUTO 6001 and AUTO 5501)

Always load and unload your camera in subdued light and never in direct sunlight. This

will greatly minimize the possibility of fogging the film.

(1) Open the back cover by sliding the back cover release button downwards (Fig. 5).

(2) Insert the film cartridge into the film chamber (Fig. 6).

(3) Place the trimmed end of the film on the take-up spool up to the film tip mark. Make

sure that the film lies flat between the film guides and that the film perforations engage the sprocket teeth (Fig.
7).

(4) Close the back cover The film will automatically advance to the first frame and the

frame counter will show "1 " in the frame counter window. www.4.butkus.org

Note:

If the frame counter does not show "1 " after the film is loaded, open the back cover and reload the film.
When placing the trimmed end of the film on the take-up spool, the length of the film pulled out from the film
cartridge should not be too long or too short relative to the film tip mark. If too much film is pulled out from the
cartridge, adjust the film length by pushing the film back into its cartridge so that the trimmed end of the film
will be precisely placed at the film tip mark


4. Film cartridge window (AUTO 6001 and AUTO 5501)





The Chinon AUTO 6001 and AUTO 5501 are equipped with a convenient film cartridge window so that you
can confirm what type of film is being used.





                                6

5. Holding the camera (AUTO 6001 and AUTO 5501)





Hold your camera firmly in both hands with at least one elbow at your side to ensure camera steadiness when
taking a picture.

Do not cover the lens, flash unit, exposure metering window or auto focus windows with your fingers.





Always press the shutter release button gently to prevent blurred pictures caused by camera shake.

6. View finder (AUTO 6001 and AUTO 5501)

1. AF mark

2. Parallax marks

3. AF indicator LED (Green)

When taking a picture closer than 1.3 meters (3.9 ft), the image area is indicated by the two parallax marks in
the top left and right of the viewfinder. Compose the photograph within the imaginary zone extending from the
comer of the parallax marks.



7-A. Auto focus shooting (Only for AUTO 6001)

The Chinon AUTO 6001 is equipped with a unique foolproof Multi Auto Focus System where the optimum
focus distance is achieved by measuring several different spots with in the range of the AF mark.

(1 ) Direct the AF mark toward the subject (Fig. 8).

(2) Gently press the shutter release button halfway. The optimum focusing distance is determined by the subject
in the AF mark. The AF indication LED (green) in the viewfinder frame will light up (Fig. 9).

(3) Fully press the shutter release button to take the photograph.





Note:
If the AF indication LED blinks continuously, the subject is too close to the camera to be in focus.

The effective coverage angle of the Multi Auto-Focusing System varies with the lend, focal length (Fig. 10), as
per the illustration below. In the telephoto lens setting the actual effective coverage angle is wider than the AF
mark. However, at the wide angle setting, effective coverage will be narrower than the AF mark. Therefore,
when taking a photograph of a small subject, it is recommended to point the center of the AF mark directly at
the subject to obtain the best results.

Note:
The following subjects will not be properly auto-focused. In these situations we recommend that you focus on
another object at approximately the same distance from the camera and use the focus-lock feature described in
the next section.
Shiny subjects such as water or the exterior of a car body.
Subject shot through a glass window.
Semi-reflective subjects.
Surfaces that reflect almost no light such as dark hair. www.4.butkus.org


7-B. Auto focus shooting (Only for AUTO 5501)

(1 ) Direct the center of the AF mark toward the subject (Fig. 11).
        (2) Gently press the shutter release button halfway The AF indication LED (Green) in the viewfinder
      frame will light up (Fig. 12).

        (3) Fully press the shutter release button to take the photograph.

         · If the AF indication LED blinks, the subject is too close to the camera to be focused properly.





8. Focus lock system (AUTO 6001 and AUTO 5501)

This feature may be used when the main subject is located "OFF CENTER" in the view finder

       (1 ) Focus on the main subject by placing the subject within the auto-focus mark and partially depress
       the shutter release button until the AF indication LED light up (Fig. 13).

        (2) While holding the shutter release button in this position. recompose the subject within the viewfinder
      and fully depress the shutter release to take the picture (Fig. 14).

(3) The locked focus setting will be held only as long as you partially depress the shutter release button
      and the AF indication LED remains lighted. This focus lock feature can be cancelled by removing your
        finger from the release button.





9. Zooming system (Only for AUTO 6001) The Chinon AUTO 6001 is equipped with the world's first 2
stage auto programmed zoom composing system that automatically selects an optimum picture composing
angle based upon the dates of the subject distance, its position relative to the camera and scene brightness.

A. Auto programmed zoom composing

(1 ) Slide the main switch to the "AUTO" (Auto Programmed Zoom) position (Fig. 15).

(2) Point the multi AF mark at the subject (Fig. 16).

(3) Press the shutter release button halfway and the camera will automatically set the zoom lens to the correct
programmed focal length according to the subject composition (Fig. 17).

(4) Press the shutter release button completely to take the photograph.





Note:
In day-light situations, the auto programmed zoom composing system is basically designed for portrait picture
taking. Therefore, when a picture with a wider perspective, such as scene is desired, use of the manual power
zooming mode is recommended.

In low-light situations (when the sensor flash fires), the auto programmed zoom composing system will selects
a lens focal length with a wider position than for day light situations. This will help to avoid an under exposed
photograph of the main subject.

When the camera is not in use, the main switch should be turned to the "OFF" position in order to protect the
lens system from accidental damage.

Never push or twist the lens barrel as this may cause damage to the zoom lens.

The zoom system will not function while the shutter release button is depressed.

B. Manual power zooming

When you prefer to compose the picture yourself, use the manual power zooming system.

(1) Slide the main switch to the "POWER" (Manual Power Zooming) position (Fig. 18)





(2) Turning the manual power zoom lever to the right (TELE) or to the left (WIDE) will change the image size
(Fig. 19).

(3) Select the preferred composition by turning the manual power zoom lever while looking at the subject
through the viewfinder

(4) Press the shutter release button completely to take the photograph.

Note:

When the camera is not in use the main switch should be turned to the "OFF" position in order to protect the
fens system from accidental damage.

Never push or twist the lens barrel as this may cause damage to the zoom lens.

The zoom system will not function while the shutter release button is depressed.

10. Manual power zooming (AUTO 5501)

The Chinon AUTO 5501 is equipped with a manual power zoom to enable you to select the zoom range to
compose the picture.

(1 ) Turn the manual power zoom lever to the right (TELE) or to the left (WIDE) to change the zoom range
(Fig. 20).

(2) Select the preferred composition by turning the manual power zoom lever while looking at the subject
through the viewfinder.

(3) Press the shutter release button completely to take the photograph.

Note:
When the camera is not in use, the main switch should be turned to the "OFF" position in order to protect the
lens system from accidental damage.
Never push or twist the lens barrel as this may cause damage to the zoom lens.
The zoom system will not function while the shutter release button is depressed.



11. Flash photography (AUTO 6001 and AUTO 5501)

The Chinon AUTO 6001 and AUTO 5501 automatically sense the scene brightness and fire the flash when
needed.

(1 ) When the shutter release button is pressed halfway and it the AF indication LED blinks once and then
disappears, it means the flash is being charged. You must wait until it glows steadily before you take a picture.
If it does not blink during the
flash charging cycle or does not glow at all, the battery is too weak and battery replacement is required.

(2) The flash will be fully charged in about 4 seconds when using a fresh battery.

Note:
The shutter cannot be released until the flash is completely charged. The flash will be charged even if the
shutter release is kept fully depressed. The shutter will be released immediately upon the completion of the flash
charging cycle.

- When the main switch is fumed on after a bang period of inactivity, the initial flash recycling time may take
longer than the normal flash recycling time. www.4.butkus.org

12. Effective flash range (AUTO 6001 and AUTO 5501)


        (Auto programmed Zoom (WIDE)                           (TELE)
       ISO 100           1.0 - 6.6 m (3 - 21.6 ft)         ISO 100            1.1 - 3 m (3.6 - 9.8 ft.)
       ISO 200           1.0 - 9.3 m (3 - 30.5 ft)         ISO 200          1.1 - 4.2 m (3.6 - 13.7 ft.)
       ISO 400           1.0 - 42.9 m (3 - 42.9 ft)        ISO 400           1.1 - 6.0 m (3.6 - 19.6 ft.)
       ISO 1000           1.0 18.5 m (3 - 60.6 ft)        ISO 1000          1.1 - 8.4 m (3.6 - 27.5 ft.)

(Webmaster: be reminded that any flash distance is also based on what items reflect the light back
to the electric eye. Hence, your subjects 40 feet back will still be underexposed if a number of
objects 15 feet from the camera reflect enough light back to turn off the electric eye.)
