Chinon DSL User manual

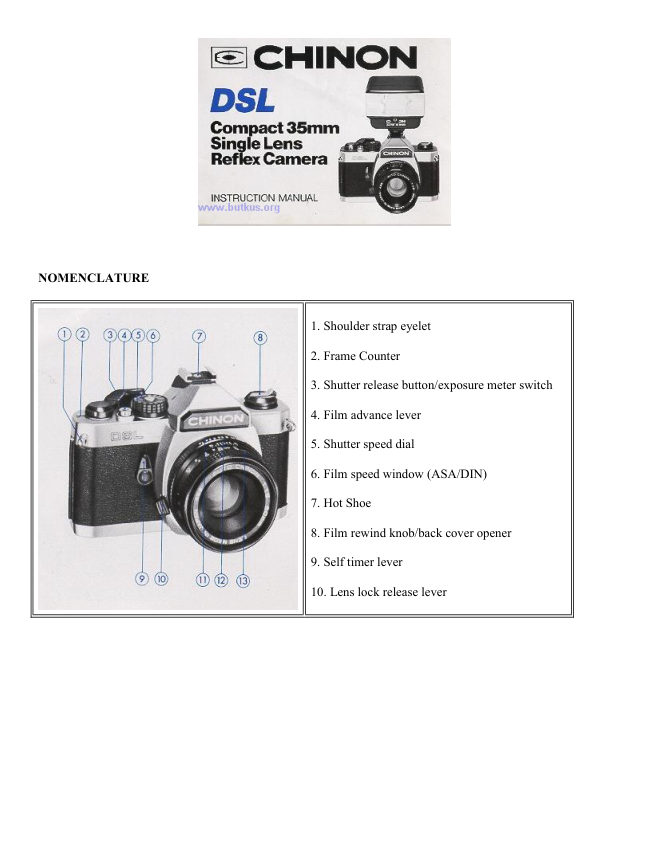

11. Aperture ring

                                                          12. Depth of field scale

                                                          13. Focusing ring

                                                          14. Film chamber

                                                          15. Exposure indicator LED's/battery check
                                                 lamp

                                                          16. Viewfinder eyepiece

                                                          17. Sprocket teeth

                                                          18. Take-up spool


19. Film pressure plate                                     23. Film rail

20. Film chamber cover                                    24. Tripod socket

21. Rewind knob                                          25. Shutter

22. Film guide rail                                         26. Battery compartment cove



SPECIFICATIONS

Type: 35 mm SLRcompact camera with LED type light measuring system.

Picture Format: 24 x 36 mm.

Lens Mount-: Chinon Universal Bayonet Mount.

Mirror: Large, Quick return, shockless system.

Shutter: Seiko MFC metal focal plane shutter.

Shutter Speeds: 1 sec. - 1/1000 sec., " B ".

Viewfinder: Fixed eye-level pentaprism, central split image with microprism collar and ground glass.

Viewfinder Magnification: 0.87x (@ 50 mm, oo).

Viewfinder Visibility: 92%.

Exposure Meter: TTL, Center w eighted full aperture system employing one silicon blue photo cell, 3 steps
exposure indicator with 3 LEDs.

Exposure Range: EV+2 (F/1.9, [sec.) to EV+18 (F/16, 1/lOOOsec.)-ASA100 F/1.9 lens.

Meter ON/OFF Switch.: Meter switch is activated when shutter release button is pressed, meter remains on for
several seconds after finger is lifted off release button.

ASA Range: 25- 1600 (DIN 15-33) with safety lock.

Film Advance: Single stroke in an arc of 130° with 25° stand off.

Film Counter: Automatically indicates number of exposures and resets to " S " when camera back is opened.

Film Rewind: Folding crank type.

Accessory Shoe: Hot Shoe type with X sync.

Self-Timer: Built-in.

Synchronization: Strobe Sync. at 1/60 sec. Power Source: Two 1.5V Alkaline batteries (LR44, A76) or two
1.5V silver oxide batteries (SR44. S76, G-13).

Battery Test: Built-in with LED indicator.

Accessories: Multi-coated lenses, Auto electronic flashes, carrying case, and many more.

Body Dimensions: 135.5 (W) x 86.0 (H) x 50.5 (D) mm. (5.33" x 3.78" x 1.99").

Body Weight; 455 grams (16.05 oz).


Outline Procedure of Shooting





1. Install the batteries.                           2. Load the camera.

4. Set either the shutter speed or the lens
3. Set ASA film speed.                     opening according to your photographic
                                         requirements





                                                    6. Depress the shutter release button half
                                  way to activate the exposure indicator
5. Focus the subject
                                       LED's. Green LED indicates correct
                                           exposure.





7. Depress the shutter release button.


Installing the batteries
1. By using a coin, unlock the battery chamber cover by turning it counterclockwise (Fig. 1).

2. Place two 1.5V Alkaline batteries (LR44, A76) or two 1.5V silver oxide batteries (SR44, S76, G-13) with the
minus ( - ) side facing upwards (Fig. 2).

3. Replace the battery chamber cover by turning fully clockwise (Fig. 3).

Note: Clean the batteries with a dry cloth or paper before inserting and thereafter at regular intervals. Make sure
that the batteries are inserted correctly, i.e., check polarity. The shutter will operate only when batteries are
correctly installed and not exhausted:

Battery testing
Test the batteries when;

- a new battery is installed
- the camera has not been used for a long period of time
- the camera is being used continuously for many hours.

To test the batteries, press the shutter release button slightly. If the batteries are in good condition, one of three
LED's located at the left side of the viewfinder frame will illuminate (Fig. 4).

If a LED fails to illuminate, the batteries are too weak and need to be replaced, they are incorrectly inserted, or
the speed selector is set to "B" position.

Film Loading
Your Chinon DSL camera can be used with any kind of 35mm film.

1. Pull up the film rewind knob until the camera back pops open (fig. 5).

2. Then, insert a film cartridge into the film chamber with the protruding end facing the button of the camera
(Fig. 6).

3. Push in the film rewind knob and slightly turn the knob in either direction until it catches the film cartridge
spool.

4. Insert the trimmed end of the film into a slot of the multi slotted take-up spool.

5. Turn the shutter speed selector to any setting and advance the film while holding the film lightly down on to
the transport.

6. Release the shutter if necessary and advance the film until the sprockets engage with the upper and lower
perforations of the film (Fig. 7)

7. Close the camera back firmly until it locks with a click.

8. Turn the film rewind knob gently until the film slack is taken up and the rewind knob stops turning freely.

9. Do not force or further rewind the film.

10. Advance the film and release the shutter three times (Fig. 8).

The rewind knob should rotate counterclockwise when the film is advanced and the " 1 " marking should appear
in the frame counter window (Fig. 9).

Using the Memo Holder
The Chinon DSL compact SLR camera has a built-in memo holder feature.

To utilize the memo holder feature, simply cut off the top of the film box and insert it into the memo holder
located on the back cover of your camera. This will enable you to quickly and easily identify the type of film
and ASA speed used in the camera. Your calling card can also be inserted in the memo holder (Fig. 10).

Frame Counter
Your Chinon DSL is equipped with a frame counter which displays the number of exposures made and resets
automatically upon opening the camera back. When the camera back is opened the counter shows " S "
indicating the start of the picture taking process. When a film is loaded according to the procedure previously
described, the counter displays " 1 " indicating that the camera is ready for the first exposure.

Every time the film advance lever is turned the counter will proceed one stop forward. The number 24 and 36
are colored in orange to warn the end of commonly available films (Fig. 11).

Advancing the Film
Make sure the film has been loaded properly. Operate the film advance lever through a full stroke. When the
film end is reached the film advance lever may stop before the lever is fully turned. Do not force the lever. Stop
winding at once and rewind the film. Refer to "Unloading Exposed Film".

ASA/DIN Setting
The ASA/DIN speed of the film is specified on the box or in the instruction sheet packed with the film. Set the
ASA/DIN speed by lifting up and rotating the shutter speed dial to be appeared in the film speed window. Be
sure to check the ASA number whenever you put new film into the camera (Fig. 12).


ASA             DIN            ASA              DIN

25                 15                 400                  27

50                 18                 800                30

100                21                 1600                33

200                24




Shutter Speed Setting
Rotate the shutter speed dial to the left or right to select a suitable shutter speed from the band of " B ", 1 to
1/1000 sec. (Fig. 13).

Aperture Setting
The aperture is set in the usual way by rotating the lens diaphragm ring until the desired F stop is set against the
green index mark on the lens barrel. For further explanation see "Determining Correct Exposure" (Fig. 14 &
15).

*F stop Selection: The following may be used as a guide to determine the lens F stop when you are using the
camera;

Sunny day outside: F/8 - F/16

Cloudy day outside: F/4 - F/5.6

Inside (without flash): F/1.9 - F/2.8

Focusing



                                                Your Chinon DSL has three built-in
                                                         focusing aids.

                                               The center of the viewfinder is the split
                                                  image with microprism collar which is
                                                      surrounded by ground glass. When the
                                                   camera is in focus, the image of these
                                                         focusing aids become sharpest. While
                                                        observing the subject through the
                                                           viewfinder, turn the lens focus ring until
                                                            the upper and lower split image match up
                                                               to form a uniform image (Fig. 16).




This split image focusing is particularly helpful when the subject is dominated by vertical lines. The microprism
is also helpful. When it is out of focus, the image on the microprism will be composed of collection of asterisks
(Fig. 17).

These sparkling asterisks will disappear when the focus is properly set. You can double check the focus setting
by the image on the ground glass. You can also focus indirectly. Actually measure or estimate the distance to
the subject and set the lens focus ring to the appropriate setting, (Fig. 18).


Determining Correct Exposure
Your Chinon DSL camera has a Through The Lens (TTL) exposure metering system. Also called an open
aperture measuring system. To determine the correct exposure, operate the film advance lever, observing the
subject through the viewfinder in the center of microprism area. Depress the shutter release button until the
exposure indicator lamp (LED) located on the left side of the viewfinder frame illuminates (Fig. 19).

Should the green lamp (LED) not illuminate, you must turn either the shutter speed dial or the lens aperture ring
until the green lamp illuminates. By doing so, you will be assured of a correct exposure.

* The Exposure Indicator: Your Chinon DSL camera has three exposure indicator lamps (LED) located at the
left side of the viewfinder frame. These three lamps control the condition of exposure of the camera. The
conditions of exposure can be confirmed in the following three ways;

A: Over Exposure

                      B: Correct Exposure

                     C: Under Exposure




When rotating the shutter speed dial or the lens aperture ring, you must operate them slowly since the exposure
indicator lamps are very sensitive. Generally you should select a shutter speed first then operate the lens
aperture ring until the proper exposure is obtained. A tripod should be used for shutter speeds longer than 1/30
sec.

Note: The exposure indicator lamp does not illuminate when the shutter speed dial is set at "B " position.

The meter switch is activated when the shutter release button is pressed and the meter remains on for several
seconds after your finger is lifted off the release button.

Unloading Exposed Film
When the film in the camera is fully exposed, the film advance lever will stop. Do not attempt to force the lever
any further. Rewind the film and replace with a new film. Push in the rewind button at the button of the camera
(Fig. 20).

Unfold the rewind crank of the rewind knob and turn the rewind crank clockwise (Fig. 21). You will feel
friction as the film is rewound. Suddenly, when the film is rewound completely, the friction decreases and the
rewind crank will turn with ease. Pull up the rewind knob to open the camera back (Fig. 22). When the camera
back is opened, the frame counter will automatically reset to the " S " position.

The rewind button on the button of the camera will pop out upon the next advancement of the film advance
lever.

Your exposed film should be processed with out delay.

CONVENIENT FEATURES

Interchangeable lenses
Your Chinon DSL camera is equipped with a Chinon bayonet mount which accepts all interchangeable lenses
with the universal bayonet mount. To remove the lens from the camera body, depress and hold the lens lock
release lever on the camera body, turn the lens counterclockwise as far as it will go, and lift it up from the body
(Fig. 23).

Note: Do not remove or replace the lens while the camera is functioning.

To attach the lens, match the red dot on the camera body with red dot on the lens (Fig. 24). Then insert the lens
into the camera body and turn it clockwise until the lens locks with a click.

Using the electronic flash
It is advisable to use a flash when the exposure indicators detect that the light level is to low, such as indoors, at
night time, or in daylight when the subject is too dark to provide adequate exposure.

Electronic flash units as well as conventional flash units using flash bulbs may be utilized. Your DSL has a hot
shoe (Accessory shoe with built-in flash contact) for " X" synchronization (Fig. 25).

Electronic flash units having a foot with built-in contact may be used without connection cord. As the hot shoe
has "X" type synchronization it can be used with electronic flash at 1/60 sec. or at slower shutter speeds (Fig.
26).

The lens aperture is determined by the calculation table indicated on the flash unit. Specially designed and
developed automatic flash units are available for your Chinon

DSL as optional accessories. This highly carefree flash photography for you. Look at advanced electronics flash
system permits the following fantastic flash units by Chinon;

              SPECIFICATIONS OF CHINON AUTO FLASHES

Model Chinon Auto 5-180 Chinon Auto S-240 Chinon Auto S-280

1. Type: Automatic Flush . Thyristor Electronic Flash Thyristor Electronic Flash

(Power cut-off system) (Power cut-off system)

2. Auto Flash System: Yes Yes Yes

3. Guide Number in M

ASA 100 18 24 28

. ASA 400 36 48 56

4. Setting: One aperture setting Two aperture settings Two aperture settings

. ASA 100 F4 F4/F8 F4/F8

. ASA 400 F8 F8/F16 F8/F16

5. Manual Flash: Yes Yes Yes

6. Auto-operation:

F8 (ASA 400) } 1m-4.5m (3.28-14.76ft) 0.7m-6m (2.30-19.66ft) 0.7m-7m (2.30-22.96ft)

F3(ASA 400' } No 0.7m-3m(2.30-9.84ft) 0.7m-3.5m(2.30-11.48ft)

7. ASA Range: 25-400 25-400 25-400

8. Sensor Acceptance Angle: Approx. 20° Approx. 20° Approx. 20°

9. Flash Duration:

Auto 1/30000-1/1500 1/30000-1 750 1/30000-1/750

Manual 1/t500 1/750 1/750

10. Recycling Time:

Auto 10sec. 0.5-10sec. 0.5-10sec.

11. Number of flashes: Approx. 150 on manual Approx. 200 on manual Approx. 150 on manual

(Alkaline batteries)

12. Bounce capability: No No Yes

13. Illumination Angle: for 35mm lens for 35mm lens for 35mm lens

14. Power Source: Two AA size batteries Four AA size batteries Four AA size batteries

(DC 3V) (DC 6V) (DC 6V)

15. Open Flash Button: Yes Yes Yes

16. Sync. Jack: Yes Yes Yes

17. Dimensions: 51 x 69 x 82 mm 6B x 77 x 86 mm 66 x 133 X 77 mm

(2~X23/,'X31/,') (2~/,'X3'X3'/,') (2'/~'X6'/.'x3~)

18. Weight: 160 9 (5.6 oz.) 210 9. (7.4 oz.) 250 9. (8.8 oz.)

Depth of Field
Depth of field designates the nearest and furthest limits of the area that will be sharp in the picture in front of
and beyond the subject. Depth of field is controlled by the f/stop. The larger the lens opening, the shallower is
the depth of field. The smaller the lens opening, the greater the depth of field becomes (Fig. 27 & 28).

Depth of Field Scale;
The depth of field scale indicates (after focusing) the approximate area that will be sharp in the picture. Locate
on the depth of field scale the corresponding pair of f/stop figures. The distance between these two f/stop
figures on the focusing ring will be the area of sharpness in your picture (Fig. 29).

The self-timer when set, trips the shutter mechanism after a delay of 7 - 12 seconds. This feature is useful
should the photographer wish to be included in the picture, and is also useful for taking pictures at slow shutter
speeds when a cable release is not available.

When using the self-timer, the camera must be mounted on a tripod, or a solid support of some kind.

To operate, move the self-timer lever counterclockwise as far as it will go. Advance the film transport lever.
Upon pressing upward on the self-timer lever with your finger, the self-timer mechanism will start to operate
(Fig. 30).

Note: Do not depress the shutter release button, since the self-timer mechanism will not operate and the shutter
will be released instantly.

Do not advance the film transport lever until the self-timer operation completely stops.

Infra-red Photography
Your DSL camera accepts infra-red film. To use infra-red film an extra focusing adjustment must be made.
After focusing note the figure that is adjacent to red diamond on the distance scale (Fig. 31), then move that
figure over to the infra-red mark engraved on the lens. This adjustment is only required for black and white
infra-red film. When using color infra-red film, focus in the normal way.

Note: Read the instructions carefully packed with the infra-red film for further information.

Your Chinon DSL camera is a precision instrument. Used with care, it will provide years of service. Protect
your camera from dirt, rain, dampness, and excessive heat.

Avoid touching the lens. To clean the lens wipe it gently with a soft lintless cloth or lens tissue. Do not use
eyeglass tissues as they might damage the lens coating.


Optional Accessories for Chinon DSL

*Standard lenses                            Deluxe Carrying Case
45mm f/2.8
                                                         Filter 49mm (Skylite, UV, ND4X, Y2, PL)
50mm f/1.9, f/1.7 multicoated, f/1.4 multicoated
                                          Rubber Eyepiece
*Wide-angle lens
28mm f/2.8 multicoated                        Eyepiece Adaptor ( - 3, +1, +3)

35mm t/2.8 multicoated                      Rubber Lens hood

*Telephoto lens                            Auto Extension Ring
135mm f/2.8 multicoated
                                            Bellows
200mm f/3.5 multicoated
                                          Mini Copy Stand
500mm f/5.6 mirror lens
                                             Spare Ring for Mini Copy Stand
*Zoom lens
80 - 200mm f/3.8 multicoated MACRO          Cable Release Adaptor 20 inch, 13 inch

35 - 100mm f/3.5 - 4.3 multicoated MACRO     Angle Finder

28 - 50mm f/3.5 - 4.5 multicoated                Table Tripod

                                       Neck Strap

*Accessories                               1.5V Alkaline Battery (2 pcs. in one set)
Auto Flash S-180
                                         2 Clips Lens Cap
Auto Flash S-240
                                             Eyepiece Cover
Auto Flash S-280
                                      Body Cap
Synchro-eye for Flash (Slave unit)
                                           and many more


* Because we continuously strive to improve our products, we may change specifications without prior notice.
