Page 2 · Read text

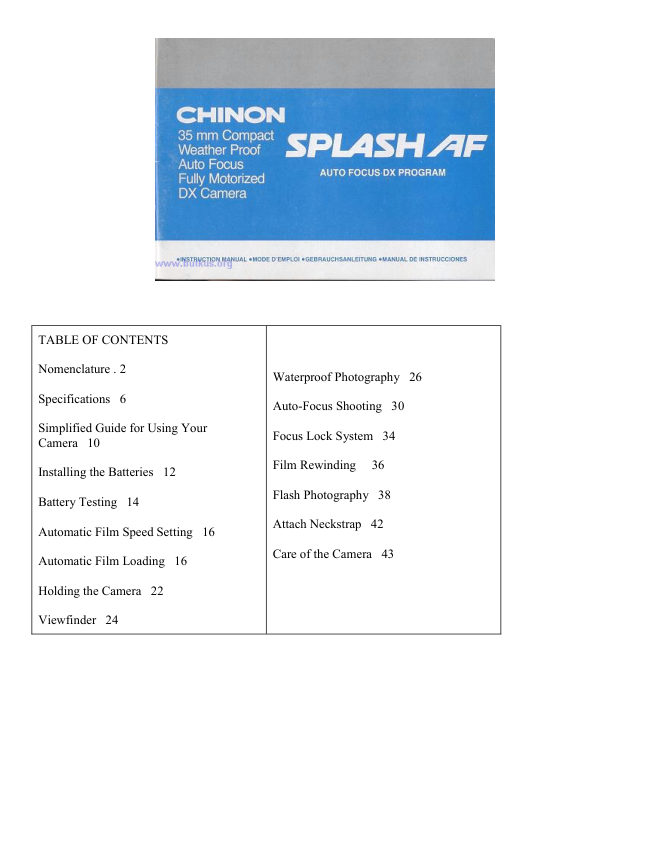

TABLE OF CONTENTS
Nomenclature . 2
Waterproof Photography 26
Specifications 6
Auto-Focus Shooting 30
Simplified Guide for Using Your
Focus Lock System 34
Camera 10
Film Rewinding 36
Installing the Batteries 12
Flash Photography 38
Battery Testing 14
Attach Neckstrap 42
Automatic Film Speed Setting 16
Care of the Camera 43
Automatic Film Loading 16
Holding the Camera 22
Viewfinder 24View original page 2Page 3 · Read text
NOMENCLATURE 1. Strap eyelet 2. Film door closure 3. Shutter release button 4. Autofocus window 5. Viewfinder 6. Flash 7. Fixed waterproof and protective lens cover 8. Lens 9. Exposure metering window 10. Power/Flash switch leverView original page 3
Page 4 · Read text
19. Film type window
11 Waterproof seal
20. Battery cap
12. Film rewind shaft
21. Film chamber
13. Frame counter
22. Automatic film speed setting contacts
14. Viewfinder eyepiece
23. Film guide
15. Flash ready indicator
24.Tripod screw
16. Take-up spool
25. Rewind switch lever
17. Back cover
26. Sprocket
18.Film pressure plate
27. Film tip mark
SPECIFICATIONS
TYPE: Weatherproof, dust and sand resistant, fully automatic 35 mm compact autofocus camera.
PICTURE FORMAT: 24x36 mm
LENS: 35 mm F3.9, 3 elements in 3 groups. VIEWFINDER: Albada type bright frame with AF frame,
parallax marks, AF lock indication LED (green) and under exposure warning/battery check LED (red).
SHUTTER: Programmed electronic shutter; 1/90 sec. - 1/410 sec., mechanical release, shutter locks when the
power/flash switch lever is in the OFF position.
EXPOSURE METER: Programmed EE, CdS.
EV RANGE: EV1O.5--EV14.5 (ISO 100).
AUTOMATIC FILM SPEED SETTING: The film speed is automatically set when using a OX-coded film of
ISO 100/21° - 1000/31°. Non-DX film will be set to ISO 100/21°.
FOCUSING: Infrared automatic focusing system with possible prefocus; cancellable. FOCUSING RANGE: 1
.3 meters (4.26 ft) to infinity.
FILM LOADING: Auto loading system with built-in motor.
FILM WIND: Automatic power winder for single frame advance.
FILM REWIND: Automatic power rewinding; rewind actuated with rewind switch lever.
AUTO REWIND STOP: Film rewinding automatically stops upon completion.View original page 4Page 5 · Read text
EXPOSURE COUNTER: Indicates number of exposed frames and returns frame by frame while rewinding, and resets to "S" when camera back is opened. FLASH: Fixed type electronic flash, flashmatic, Guide number 10 (ISO 100 meters), Effective range of 1.3-- 3.5 meters (4.26 - 11.48 ft) at ISO 100, Recycling time of approximately 5 seconds. Flash ready indicator built- in. WATER RESISTANCE: Washable with water. OTHER FEATURES: Film type window, tripod screw and neck strap. POWER SOURCE: Two 1.5, V "AA" size alkaline batteries (LR6). DIMENSIONS: 1 40(W)x 77(H) x 53(0) mm (5.51 x3.03"x2.09"). WEIGHT: 370 g (13.06 oz) SIMPLIFIED GUIDE FOR USING YOUR CAMERA 1. Installing Batteries (Fig. A) 2. Set the Power/Flash switch lever to the ON position (Fig. B) 3. Automatic Film Loading (Release shutter 3 times) (Fig. C) 4. Be Sure to Direct AF Frame at Your Subject (Fig. D)View original page 5
Page 6 · Read text
5. Release the Shutter (Fig. E)
6. Automatic Film Rewind (Fig. F)
7. Remove the Exposed Film (Fig.
G)
INSTALLING THE BATTERIES
NOTE:
* If you do not intend to use your camera for a
long period of time, remove the batteries and
store them in a dry location. This will prevent
the possibility of battery leakage and damage
to your camera. Do not use Ni-Cad batteries.
Be sure to replace both batteries at the same
time when the batteries are too weak to
1. Put a small coin in the groove and turn it as illustrated to operate the camera. When replacing the
open the Battery Cap (Fig. 1). Place two 1.5 V "AA" size batteries, make sure they are not wet. If so,
alkaline batteries (LR-6) into the battery compartment so wipe it with cloth before use.
as to correspond with the positive (+) and negative (--)
marks shown inside (Fig. 2).View original page 6Page 7 · Read text
BATTERY TESTING
1. Set the Power/Flash Switch Lever to
the ON position (Fig. 3)
2. Cover the exposure metering window
with your hand and press the shutter
release button halfway (Fig. 4).
3. Make sure the under-exposure
warning LED (red) lights up (Fig. 5). If
the red LED fails to illuminate, the
batteries are too weak and need to be
replaced.
NOTE: * When the Power/Flash Switch
Lever is in the OFF position the shutter
will be blocked. As temperature
decreases, especially below 0°C (32°F)
battery performance declines. Keep
batteries warmed under these conditions.
AUTOMATIC FILM SPEED SETTING
The film speed is automatically set when using a DX-coded
film of
ISO 100/21° - 1000/31 Non-DX films will be set to ISO
100/21° (Fig. 6).View original page 7Page 8 · Read text
AUTOMATIC FILM LOADING
Always load and unload your camera in subdued light, and never in
direct sunlight.
1. Slide the film door closure latch in the direction of the arrow and lift
up the closure as illustrated to open the back cover (Fig. 7).
2. Insert a film cartridge into the film chamber
(Fig. 8).View original page 8Page 9 · Read text
3. Align the trimmed end of the film on the take-up spool
with the yellow film tip mark. When loading film, make
sure that the film lies flat between the film guides. Engage
the perforation of the film with the teeth of the sprocket
(Fig. 9). Close the back cover as illustrated (Fig. 10).
4. Set to the Power/Flash Switch Lever to ON position and release the
shutter button three times until the figure 1" appears in the frame counter
(Fig. 11). The camera is now properly loaded.
NOTE:
* If the film counter does not function, the film is not properly advancing.
Open the back cover and re-load the camera. When inserting film cartridge,
make sure they are not wet. If so, wipe it with cloth before use.View original page 9Page 10 · Read text
4. Cartridge Window
This camera is equipped with a convenient
Cartridge Window so that you can check
what type of film is in use (Fig. 12).
HOLDING THE CAMERA
Hold the camera firmly in both hands with
at least one elbow at your side to ensure
camera steadiness when taking a picture.View original page 10Page 11 · Read text
VIEWFINDER
(1) Bright line frame
(2) Parallax marks
(3) Auto-focus frame
(4) AF indication LED (green)
(5) Under exposure warning! Battery check LED
(red)
WATER PROOF PHOTOGRAPHY
Your SPLASH AF camera is designed to be water-
resistant. It can safely be washed with water. You can
use it anywhere, even on a rainy day or at the beach.
Do not intend to use it under water.View original page 11Page 12 · Read text
Check Waterproof Seal 1. Make sure the waterproof rubber seal inside is not partly or wholly removed. 2. Make sure there is no sand or foreign material on or around the waterproof seal. NOTE: * When replacing batteries and/ or inserting a film cartridge, make sure that they are not wet. If so, wipe with cloth before use. When the lens cover or autofocus window is covered with waterdrops or dirt, wipe them clean with a soft cloth before taking a picture. AUTO-FOCUS SHOOTING 1. Look through the viewfinder and compose the picture so that the main subject is placed in the auto focus frame (3). 2. Gently press the shutter release button halfway. The camera automatically focuses and the AF signal (green) will light. 3. When taking a picture closer than 1.5 meters (5 feet), the image area is indicated by the two parallax marks (2) in the top left and top right corners of the viewfinder. Compose the photograph within the imaginary zone extending from the corner of the parallax marks (Fig. 13). NOTE: When a subject is positioned closer than 1.3 meters (4.26 feet), the pictures will not be in focus.View original page 12
Page 13 · Read text
4. Press the shutter release button all the way. If the underexposure warning LED (5) lights up, use the built-in flash (Fig. 14). See FLASH PHOTOGRAPHY. NOTE: The following subjects will not be properly auto-focused: * Shiny subjects such as water surfaces or the exterior of a car body. * Subjects viewed through a glass window. Semi-reflective subjects. FOCUS LOCK SYSTEM This feature may be used to eliminate tricky focusing situations such as when the main subject is located "off center" in the viewfinder. In such a situation, first focus on the main subject (by placing the subject in the AF frame) and partially depress the shutter release button. Hold the shutter release button in the halfway position and recompose the subjects in the viewfinder and fully depress the shutter release button to take the picture (Fig. 15). This focus lock feature can be cancelled by removing your finger from the release button.View original page 13
Page 15 · Read text
Daylight Flash Photography
If the main subject has less light falling on it
than the surrounding area and background,
underexposure of the main subject will
result. If such situations, use the flash even in
daylight.
NOTE:
* If you release the shutter
before the Flash Ready Indicator glows, the
exposure will not be correct.
ATTACH NECK STRAP
CARE OF THE CAMERA
Your camera is a precision instrument. When used with care it will provide years of trouble-free service. Protect
your camera from dirt, rain, dampness and excessive heat. Avoid touching the lens. To clean the lens, wipe it
gently with a soft lintless cloth or tissue. Do not use eyeglass tissues as they might damage the lens coating. Do
not disassemble and touch the inside of the camera as possible high voltage in the flash circuitry can be
dangerous.
Because we continually strive to improve our products, we may change specifications without prior notice.View original page 15From the M. Butkus archive. Original publisher and archive notices are retained.
