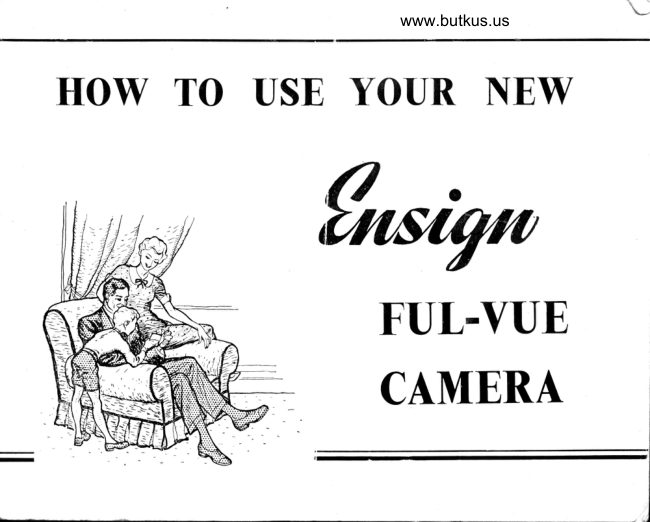

  HOW TO USE YOUR NEW ENSIGN FUL-VUE
  -   There could be no happier intro_      The shutter fitted on the Ful-Vue duction                fascinating        to a                         frbUUy ttran                                                is provided                                                                  settings                                                  with                                                                for instan-   Ful-Vue a          camera.                    It-combin",                                  in                                        taneous                                     and                                                         exposures                                              time                                                                                a                                                     and economical              a.pproach-                     to photography                                              synchroflash                                                          socket                                                            provided.                                                                         is                                                                  The wnn every chance o[ success in pic_       flash mechanism will n6t, howevero be ture making.
                                                                                                  ^  The shutter allows for  instan_      isbroughtinsertedinto inactiontheuntiisocketa flashon flug taneous and time exposures to be        slrutter cover.                        thE made and flash contact^s are provided
 so that photographs can be taken all
 the. year round. A special Ful_Vue
 flash unit is now available and ttris
 has    .been specially designed to clipon the back of the camera.
  The lens in the Ful-Vue camera
has an aperture of f/l I and mav be
focussed to give a sharp picture at
any dlstance. The scale on the lens
mount is calibrated in yards. After
estimating the distance of the subject
rrom the camera rotate the lens mount
to bring the engraved index mark
opposite the required distance. For
example,  - 2_ yards, 3-5 yards, or 6yards to infinity (Fig. l),-but iemem-
ber that the distance must be esti-
mated in yards and not in feet as on
many other cameras.                            Frc. l.  Adjusting the focus.

www.butkus.us
                                          Holding the camera in the left                                           hand, pull out the opposite side of
                                          the camera comprising the winding
                                      knob, cone and spool chambers.
                                                         (Fig. a).
                                           Before inserting a new spool of
                                          Ensign 120 film, make sure that an
                                          empty take up spool is in position at
                                              the winding end of the cone. If the

l
1           Frc. 4. Remouing the cone.
     moving the camera or blurred pic-
      tures will  result. Never hold the
      camera in the hands, but place it on
    a firm support and hold the camera
      firmly to avoid moving it while the
       shutter is open.
      To unlock the camera in order to
       insert a roll film, turn the knob on
       the right of the camera (Fig. 3) to the
      position marked " LJnlock ", this will
      disengage the spool cone attached to
      the opposite side of the camera.                 Frc. 5. Loading the filrn.

www.butkus.us
       the ruby- window on the back of the       camera by turning the button until
      the shield is clear of the aperture.
      Watching the ruby window, turn the
       winding knob (Fig. 7) until a warn-
       ing hand and then the figure I appear.
       After moving the safety cover shield
     back over the ruby window, the
       camera will then be ready for use.

+



                                                       Frc. B. Unloading the camera.

                                                 After each picture has been taken,
                                          open the ruby window shield on the
                                            back of the camera, turn the winding
                                       knob until the next number appears
                                                   in the window and replace the safety
                                             cover after each winding operation.
                                            This precaution is especially import-
            Frc. 7. lfinding on the film.           ant when using panchromatic films.

When all twelve exposures. have
  been made, open the ruby-window
  shield and ttrin the winding knob
  until the end of the backing paper on'
  the film has passed the window.
   Unlock the camera as previouslY
  described, remove the cone (Fig. 8)
  and then holding the exposed spool
  of film to prevent it from unrolling,  '
  pul! 6u"U the spring wihich holds it
  in position and remove the exPosed
  spool. Fasten the end of the backing
  oaoer with the summed label pro-
  iriAed on the enl of the roll and
   transfer the empty spool to the oPPo- u=   site end of the cone ready for loading '-
  with a fresh Ensign 120 film.

    Il you are a beginner in photographl
   zne recornrnend the " Ful-Vue Gui.de "
      ( published by the Focal Press Ltd.,   gI,  Fitzroy Square, London, W.1),
  which contains further hints on  photography with the Ful-Vuc. Thit    The neu Ensign FuI-Vue flash unit
   publication rna! be obtai.ned from       fitted on the back of the carnera uith  any good photographic dcaler.             the lead plu.gged into the flash socket.

  BARNET ENSIGN ROSS LTD., LONDON, E.l7
157m. FPP. 1t52. 8170.
