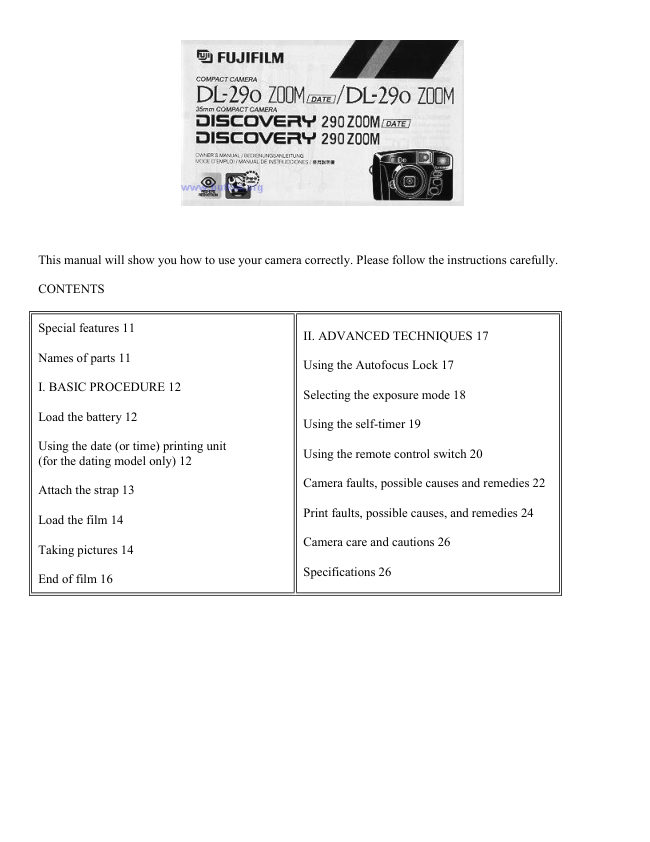

Fujica Fujifilm DL-290 User manual

This manual will show you how to use your camera correctly. Please follow the instructions carefully.

CONTENTS


Special features 11
                                                                     II. ADVANCED TECHNIQUES 17

Names of parts 11
                                            Using the Autofocus Lock 17

I. BASIC PROCEDURE 12
                                                  Selecting the exposure mode 18

Load the battery 12
                                            Using the self-timer 19

Using the date (or time) printing unit
                                            Using the remote control switch 20
(for the dating model only) 12

                                        Camera faults, possible causes and remedies 22
Attach the strap 13

                                                      Print faults, possible causes, and remedies 24
Load the film 14

                                        Camera care and cautions 26
Taking pictures 14

                                                    Specifications 26
End of film 16

Digitally signed by Mike Butkus
                                          DN: cn=Mike Butkus, o=Butkus camera manuals,
                                              ou=butkus.org, email=mike@butkus.org, c=USMike Butkus Date: 2022.12.13 14:37:34 -05'00'

  NAMES OF PARTS


                            (1) Strap Lug
                            (2) Shutter Release              (17) Finder Eyepiece
                            (3) Autofocus Windows          (18) Autofocus Lamp
                            (4) Finder Window              (19) Camera Back
                            (5) Liquid Crystal Display       (20) Date display Window (for the dating
                            (6) Flash Lamp face           model only)
                            (7) Red-eye Reducing Lamp     (21) Date Mode/Select Button (for the
                            (8) Lens Cover Button (Power    dating model only)
                         Switch)                         (22) Date Set Button (for the dating model
                            (9) AE Light Sensor             only) (23) Battery Compartment Cover
                          (10) Lens                        (24) Camera Back
                          (11) Zoom Button (wide)         (25) Lock Film Confirmation Window
                          (12) Zoom Button (tele)          (26) Mid-roll Rewind Button
                          (13) Remote Control Sensor      (27) Tripod Socket
                          (14) Self-timer/Remote          (28) Self-timer Mode Sign
                         Control Lamp                   (29) Exposure Counter Number
                          (15) Self-timer/Remote          (30) Red-eye Reducing Flash Mode Sign
                         Control Button                  (31) Remote Control Mode Sign
                          (16) Exposure Mode Button      (32) Flash Mode Sign


  SPECIAL FEATURES

    · A fully automatic 35 mm compact zoom camera
    1. High Quality 38-9Omm Autofocus zoom.
    2. Drop-in Film Loading.
    3. Film Pre-winding.
    4. Red-eye Reduction
    5. Automatic Flash.
    6. Large Viewfinder.
    7. Date or Time Printing Capability (for the dating model only).

I. BASIC PROCEDURE

LOAD THE BATTERY

· Use one 3V CR123A lithium battery.

· A new lithium battery will provide power for taking about 400 pictures, including 200 with flash (as tested
according to Fujifilm's battery testing procedure).

1. Open the battery compartment cover (Fig. 1)
Push the Cover's grained part up (toward the camera back) and open the Cover toward you.

2. Insert the battery (Fig. 2)
Insert the battery in the Battery Compartment, minus (-) end first, then press in the plus (+) end and close the
Battery Compartment Cover.

3. Check the loaded battery (Fig. 3)
Push the Lens Cover Button downward. If the Lens Cover opens and the lens barrel moves out into shooting
position (wideangle), the battery is loaded correctly.

· If the Flash Sign ( *** ) in the LCD blinks for 12 seconds or more after taking a flash picture, the battery is
spent. Change the battery with a new one as soon as possible.

· Always reset the date after changing the battery (for the dating model only)

· If you are going on a trip or are planning to take lots of pictures, take a spare battery along with you just in
case you might need it. This is especially true if you are travailing abroad because in some countries you may
not be able to obtain the type of battery you want.



USING THE DATA (OR TIME) PRINTING UNIT

This section applies only to the model with a dating unit.
1. Printing dates (or time) on your pictures (Fig. 4) M... Stands for month (Fig. 4-A)





To change the order of the year, month, and day press in the Date Mode/Select Button Q. The order will change
as shown above. The date Showing in the Date Display Window is the date that will be printed in the bottom
right of your picture.

If you don't want dates on your pictures, bring out the Dating Unit Off sign (-- -- --) in the Date Display
Window.

· After changing the Camera battery, always check and reset the date (or time).

www.butkus.us


2. Correcting the date (Fig. 5)

PRINT... Printing Mark (Fig. 5-A)

( 1 ) Make the number for the year blink by pressing in the Date Mode/Select Button (1)
(2) Change the blinking number to the one you want by pressing in the Date Set Button (2).
(3) Make the next number (the number for the month) blink by pressing in the Date Mode/ Select Button again
then correct the number with the Date Set Button.
(4) After correcting the number for the "minute" press in the Date Mode/Select Button to bring out the
"PRINTS" sign in the Date Display Window. The Dating Unit is now ready for printing.

· Your camera's quartz date-printing unit has an auto-calendar that is designed to function up through the year
2020 The Dates (or time) are represented by the following numbers:
Year: 89 20  Hour: 0 - 23
Month: 1 -12 Minute: 00 - 59
Day: 1 - 31

· The year, month, and day are interlocked with the hour and minute.

· When the shutter is released to take your picture the "PRINT" sign in the Date Display Window will blink for
about two seconds to tell you the date has been printed on it.

ATTACH THE STRAP (Fig. 6)
Pass the looped end of the strap through the camera's Strap Lug, then pass the other end of the strap through the
loop and pull it firmly.

LOAD THE FILM

1. Open the camera back (Fig. 7)
To open, hold the camera bottom side up and push the Camera Back Lock downward.

2. Insert the film (Fig. 8)
Just push the film gently into the Film Chamber.

· Do not open the Camera Back all the way. It is normally set to open about 15° or just enough to drop the film
in smoothly and surely.

· Film with a *** mark (Advanced photo system) on it cannot be used.

· Always use your film before the expiration date printed on the film box.

3. Check the film tip position (Fig. 9)
Make sure the film tip falls within the Film Tip Mark (green lines in the far end of the film track).

4. Close the camera back (Fig. 10)
As soon as you close the Camera Back, the Exposure Counter will run though rapidly and the film will prewind
itself up to the very end. (If the film is a 24-exposure roll, it will prewind itself in about 20 seconds and the
Exposure Counter will stop at the number "24").

· If the film leader (the length of film protruding from the cartridge) is too short or too long, however, you'll
have to adjust it before dropping the cartridge into the camera. To adjust, pull the film out or wind it in so that
the film tip will fall within the camera's Film Tip Mark (green lines).

· The Film Confirmation Window will show the type and speed of the loaded film and the number of exposures
it contains.

TAKING PICTURES

1. Turn on the power (Fig. 11)
To turn it on, press the Power Switch downward.
The Lens Cover will automatically open and the Lens will move out into shooting position. If the Lens is in
retracted position, the shutter won't trip.

2. Standard 35 mm size covering area (Fig. 12)

· Parallax Correction Mark (Fig. 12-A)

· Bright Frame (Fig. 12-B)

You'll get in your picture everything you see within the Bright Frame. But if you are shooting your subject form
about 1.2 meters away or closer, you'll get in your picture only the area falling within the Parallax Correction
Mark.





3. Zooming to telephoto (Fig. 13)
To zoom to telephoto, press in the upper Zoom Button. The size of the Finder image will change with the
movement of the Lens.

· Do not block the Lens or apply pressure to it while it is zooming.

· If the camera is left for approximately 5 minutes with the Power Switch on, the lens is retracted automatically,
the liquid crystal display goes off, and the camera's power goes off. If the power switch is turned off, then again,
the camera is again set ready for photographing.

4. Zooming to wide angle (Fig. 14)
To zoom to wide angle, press in the lower Zoom button.

5. Hold the camera still (Fig. 15)
When taking pictures, hold the camera still with both hands (camera shake can result in fuzzy pictures).
To shoot with the camera held vertically, position the Flash side up.

· Before pressing down the Shutter Release, take your finger off the Zoom Button.

· Keep your fingers and camera strap away from the Lens, Autofocus Windows, and Flash Lampface.


6. Aim the autofocus spot at your subject (Fig. 16)
· Autofocus Spot (Fig. 16-A)

Aim the Autofocus Spot at your subject. Make sure your subject fills the Finder's Autofocus Spot completely.


7. Press the shutter release about halfway down (Fig. 17)
If the Autofocus Lamp (green lamp next to the finder Eyepiece) turns on and glows when the Shutter Release is
pressed about halfway down the Lens has completed focusing. But if you are too close to your subject, the
Autofocus Lamp will blink to warn you to move back.

· The Autofocus Lamp will blink if you are too close to your subject. If it blinks, check the camera-to-subject
distance once again.

· When you press the Shutter Release about halfway down, do it slowly and gently.

8. Take your picture (Fig. 18)
To take your picture, press the Shutter Release gently all the way down. As soon as the shutter trips, the film
will automatically advance into position for the next shot.

· The number in the film counter decreases by one each time a frame is exposed.

· The AF lamp (or self-timer Lamp) will extinguish once and reappear immediately after the shutter is released.

· The shooting distance is 0.65 m - 00 at f=90 mm (0.9 m - 00 at other focal lengths).

· Though rarely, the Lens may not be able to focus itself sharply in the following situations. To take your
picture, you'll have to use the Autofocus Lock (see page 17).

(1) If there is a very bright light shining in the vicinity of your subject, such as blazing streaks of sunlight,
dazzling light reflections from the windshield of a car, etc.

(2) If your subject is a black object, such as a bunch of black hair, which cannot reflect enough light.

(3) If you are shooting through a glass window.

(4) If there is a strongly reflecting object, such as a mirror or shiny piece of metal, near the center of your
subject.

www.butkus.us


END OF FILM

· Your camera will expose the film frames in descending order, starting from the highest numbered frame, and
rewind each frame into its cartridge as soon as it is exposed.

· You can unload the film as soon as the last frame (frame No. 1) is exposed and the camera motor comes to a
halt because there is no need to rewind it.

1. After exposing the last frame (Fig. 19)
As soon as the last frame (frame No. 1 ) is exposed, the Exposure Counter will switch from "0" to "E" and the
camera motor will come to a halt.

2. Unload the exposed film (Fig. 20)
Make sure the Exposure Counter is showing the "E" sign then open the Camera Back and take the film out.

· Unloading the film in mid-roll (Fig. 21)
With the tip of a ball-point pen or something similar, press in the Mid-roll Rewind Button. Wait until the
Exposure Counter shows the "E" sign and the camera motor comes to a halt, then take the film out.

· Do not use anything with too sharp a point to press in the Mid-roll Rewind Button.

· If the Camera Back is accidentally opened in mid-roll, close it quickly, wait until the film winds itself back
into its cartridge, then it out. All the exposed frames, except the last, will be saved.

· If the film is unloaded before the Exposure Counter shows the "E" sign, the next roll you load will
immediately wind itself back into its cartridge and the Exposure Counter will blink continuously (see page 22).

II. ADVANCED TECHNIQUES - USING THE AUTOFOCUS LOCK

1. This is the picture you want but.... (Fig. 22) the Autofocus Spot is off your subject. It means the Lens is not
focused on your subject.

2. Move the camera slightly and.... (Fig. 23) aim the Autofocus Spot so that it covers some part of your subject,
then press the Shutter Release about halfway down (to lock the focus) and make sure the Autofocus Lamp
(focusing completed signal) has turned on.

3. While pressing the shutter release about halfway down... (Fig. 22) move the camera back to its original
position recompose your picture, then take it by pressing the Shutter Release all the way down.

· The autofocus Lock can be used as many times as necessary before tripping the shutter.

SELECTING THE EXPOSURE MODE

· A word on the camera's flash exposure modes Each time you press in the Exposure Mode Button, the exposure
mode setting will switch in the order shown below:

Auto flash (No sign), Red-eye Reducing *** Fill-in Flash ( *** ) and Flash off *** mode.

· Effective flash range
(Using color negative film; distance in meters). The effective range of your camera's built-in flash will differ
with the speed of the film you are using and the lens focal length as shown below.

                   ISO 100             ISO 200             ISO 400

38mm wideangle        0.9 - 5                   0.9 ~ 7                  0.9 ~ 10

90mm telephoto         0.65 - 2.2               0.65 - 3.3               0.65 - 4.4


(Using color negative film: units; m)

Taking ordinary pictures

1. Automatic-flash mode in low light (Fig. 24)

If you don't see any sign in area "A" of the LCD (see illustration) and the light is low, the Flash will

automatically fire when you press down the Shutter Release. And as soon as the blinking Flash Sign (     ) in the
LCD turns off, you can take your next autoflash picture.

If you want your subject's eyes to look natural and beautiful...

2. Red-eye reducing mode (Fig. 25)





Bring out the Red-eye Reducing Mode Sign      in the LCD by pressing in the Exposure Mode Button, then
take your picture.

· The red-eye reducing mode setting will remain on ever after you turn off the power.

· The Autofocus Lamp (next to the Finder Eyepiece) will turn on the moment the Red-eye Reducing Lamp turns
on then turn off the instant the Flash fires. Be sure to hold the camera still while the Autofocus Lamp is on.

· A word on red-eye effect
When you photograph a person's face in dim light with Flash, the eyes will sometimes turn out red in the
picture. This is because the light from the Flash enters the person's eyes and is reflected back into the camera
lens. To reduce the chances of getting red-eye pictures, observe the following rules:





(1) Take your picture with the camera set to the Red-eye Reducing Mode.

(2) Ask your subject to stare at the camera.

(3) Bring the camera up as close as possible to your subject.

To take backlighted pictures of subjects against a window or in the shade of a tree...

3. Fill-in flash mode (Fig. 26)


Bring out the Flash Sign (     ) in the LCD by pressing in the Exposure Mode Button. The Flash will now fire
even in bright sunlight.

Taking non-flash pictures

4. Flash off mode (Fig. 27)
Bring out the Flash Off Sign    in the LCD by pressing in the Exposure Mode Button, then take your non-flash
(existing light) picture.

· The flash mode settings will remain on until you switch them off by closing the Lens Cover.


· To take stage scenes and indoor sports events that are beyond reach of the camera's built-in flash, shoot with
the Flash turned off (flash off mode).
· When shooting in the flash off mode, keep-the camera as still as possible by mounting it on a tripod.

USING THE SELF-TIMER
1. Set the self-timer (Fig. 28)
To set the Self-timer, press in the Self-timer/ Remote Control Button (       ) to bring out the triangular mark (

   ) in the LCD in the spot where the Self-timer Sign (       ) is showing.

2. Start the Self-timer (Fig. 29)
To start it, press down the Shutter Release. The Lens will automatically focus on the part of your subject that is
covered by the Finder's Autofocus Spot.

· When you start the Self-timer, do not stand in front of the camera. If you do, you will either throw the Lens
out of focus or the picture may turn out underexposed.
· The Self-timer has to be reset each time you take a picture.
· To switch off the Self-timer, turn off the triangular mark (   ) in the LCD by pressing in the Self timer Button a
second time.

3. Wait 10 seconds As soon as the Self-timer start, the Self-timer/ Remote Control Lamp will turn on and glow
for seven seconds, then blink for three seconds, then the shutter will trip to take your picture.


USING THE REMOTE CONTROL SWITCH
· If the Remote Control Switch is not included with your camera, you'll have to buy it separately.
· Remote control switch (Fig. 30)
· Switch Muzzle (Fig. 30-A)
· Shutter Operating Button (Fig. 30-B)

1. Take out the remote control switch (Fig. 31)
To take it out its holder, just side it out. To insert it in its holder, slide it in until it stops with a click.

· Switch Holder (Fig. 31-A)

2. Set the camera to remote control (Fig. 32)

Press in the Self-timer/Remote Control Mode Button              to bring out the triangular mark (   ) in the
LCD in the spot where the Remote Control Sign         is showing.

3. Take your remote control picture (Fig. 33)
Aim the Autofocus Spot at your subject and compose your picture. Face the Switch Muzzle toward the camera
and press down the Shutter
Operating Button. The Self-timer/Remote Control Lamp will blink for two seconds then the shutter will trip to
take your picture.

· After taking your picture, switch the camera off the remote control mode.

· Take your picture within five minutes after seeing the camera to the remote control mode.

· For best results, mount the camera on a tripod when taking remote control pictures.

· Be careful when taking against-the-light pictures because the Remote Control Switch may not function if
direct light enters the camera's Remote Control Sensor. You may have to use the Self-timer in such cases.

· The Remote Control Switch's battery will last about three years (as tested according to Fujifilm's battery
testing procedure). If the battery runs out, you can always ask your dealer to replace it for you.


4. Effective switch range (Fig. 34)
The effective range of the Remote Control Switch is about five meters when held directly in front of the camera,
and up to 3.5 meters when aimed at the camera at a 20° angle from all sides (left, right, above, and below).

· Carrying the remote control switch (Fig. 35)
Just pass the camera strap though the groove (see arrow in the illustration) in the Switch Holder and carry it
together with the camera.

CAMERA FAULTS, POSSIBLE CAUSES, AND REMEDIES


                          (1) The battery is         (1) Change the battery   12
                         nearly spent (The       with a new one.
1. The shutter won't     Autofocus Lamp does
trip.                    not turn on when the
                         Shutter Release is
                        pressed halfway down)

                          (2) You forgot to turn    (2) Push down the Lens  14
                     on the Power Switch.    Cover Button and make
                                                 sure the Lens has
                                      moved out into
                                                shooting position.

                          (3) The Exposure        (3) Unload the film and  16
                      Counter is showing the   insert a new roll.
                      "E" Sign.

                          (4) You blocked the      (4) Press in the Zoom   15
                     Lens barrel while it      Button.
                    was zooming, in which  The Lens barrel will
                        case the shutter won't    automatically collapse
                              trip because the Lens is  then reset itself to
                        not in normal position.   wideangle position.





                                                                       First move the Lens out into
                                                          shooting position by pushing
2. The Exposure Counter                           down the Lens Cover
                     A party used roll of film was
blinks. (The film winds                                       Button. Next, unload the
                           unloaded without winding it
directly back into its cartridge                                   battery, check to make sure
                          back into its cartridge.
the moment it is loaded).                                    the Exposure Counter in
                                         LCD has turned off, then
                                                           reload the battery.

                           While taking pictures or while
                              prewinding, camera, do not   When there is film in the
3. The film wound back into
                         open the either the Camera   Camera do not open the
its car- the film was triage in
                         Back was opened or you     camera back or meddle with
the middle of the roll.
                         meddled with the Camera     the Camera Back Lock.
                         Back Lock.

4. The film has been loaded
and the Camera Back has
                       You did not load the film
been closed, but the                                   Reload the film correctly.
                                  correctly.
Exposure Counter does not
count.

1, The picture looks      (1) The autofocus Spot   (1) Aim the Autofocus   15,17
fuzzy.               was not aimed          Spot correctly at your
                           correctly.                subject or use the       26
                          (2) The Lens is not      Autofocus Lock to take
                          clean.                 your picture.
                          (3) You jiggled the       (2) Keep the Lens clean
                     camera when you         at all times.           15
                        pressed down the         (3) Hold the camera
                         Shutter Release.             still with both hands
                                           and press the Shutter
                                               Release gently down.

2. The picture looks      (1) You took your        (1) Take your against-   17,19
dark.                     picture against the       the-light pictures with
                            light (your subject was   the camera set to the
                        standing indoors          Fill-in Flash Mode.
                          against a window, etc.).
                          (2) Your subject was     (2) Take your flash
                     beyond reach of the      pictures within the
                        camera's built in flash.   built-in flash's effective
                                                  range.




3. The date dose not show up in  (1) You took your picture with   (1) Before taking your picture,
the picture, or it does not show   the Dating Unit switched off.     set the date and make sure it is
up very clearly. (for the dating    (2) A white, yellow, orange or  showing in the LCD.
model only)                     other bright colored object was
                                included in the bottom right of   (2) Compose your picture so that
                              your picture.                               it does not include any bright in
                                                                   the bottom right where the date
                                                                      will be printed.



CAMERA CARE AND CAUTIONS

1. Your camera is a precision instrument which requires careful handling. Do not wet it, drop it on the floor, or
subject it to any other type of strong shock.

2. If you are not using your camera for a long interval, keep it where it will be safe from heat, dust, and
moisture.

3. Remove soil and dust from the lens glass, autofocus windows, and finder window with an air blower and by
wiping lightly with a piece of soft, lint-free cloth. If that is not enough, wipe off gently with Lens Cleaning
Paper moistened slightly with Lens Cleaning Fluid. Never use solvents, such as alcohol or benzine, to clean
your camera.

4. In hot weather, do not leave your camera in a closed compartment of your car, or on an ocean beach, and in
moist places except temporarily for a very short time.

5. In case of malfunction, consult your camera dealer. Do not disassemble the camera yourself because it is
equipped with high-tension circuits.

6. Never dismantle the camera's lithium battery, heat it, throw it into a fire, charge it, or cause it to short circuit.

7. This camera is designed for use within a temperature range of -10 to +40°C.

SPECIFICATIONS

· Film: 135 (35 mm) DX roll film.

· Picture Size: Standard 35 mm size: 24 x 36 mm.

· Lens: Fujinon zoom lens, power zoom, f=38-90 mm, 1:5.0 - 10.5, 5 components, 5 elements.

· Finder: Albada zoom finder, 0.4-0.86X magnification, bright frame, autofocus spot, parallax correction mark,
autofocus lamp (next to finder eyepiece).

· Focusing: Active type auto focusing from 0.65 m - 00 (at f=90 mm), 0.9 m - 00 at other focal lengths,
provided with autofocus lock.

· Autofocus Lamp: Turns on and glows when subject is in sharp focus, blinks when subject is too close.

· Shutter Programmed: electronic shutter.

· Exposure Control: Automatic, W: EV 10.25 (9~)-17 (ISO 100) T: EV 13.5 (9')-17 (ISO 100), ( indicates
values for flash off mode).

· Film Speed Setting: Automatic with ISO 50-1600 OX roll film.

· Film Loading: Drop-in system, automatic threading.

· Film Advance: Automatic (motorized), film prewind system, rewinding unnecessary, provision for mid-roll
rewinding.

· LCD Signs: Exposure counter, flash mode signs (flash charging, red-eye reducing, fill-in flash, and flash off
signs), self-timer mode and remote control mode signs.

· Flash: Autoflash, red-eye reducing, fill-in flash, and flash off modes, electronically controlled flashmatic
exposure control, about 5 sec. recycle time.

· Date Printing: Unit (for the dating model only) Four mode (year month day, month day year, day month year,
day hour minute) quartz dating unit, effective up through the year 2020, provision for shooting in the date off
mode, draws power form the camera's battery.

· Self-timer: Electronically controlled, about 10 sec. delay, can be switched off in mid-run, provided with
countdown lamp

· Power Source: One CR123A lithium battery or comparable battery.

· Remote Control Switch: Infrared system, operates camera shutter, about 5 m effective range from camera
front (available as camera accessory or separately).

· Others: Built-in lens cover (lens cover serves as safety lock when closed), film confirmation window, tripod
socket, provision for remote control shutter release.

· Dimensions and Weight: Camera: 125 x 76 x 50.5 mm, 258 g. (without battery)

Notice: Specifications are subject to change without notice.
