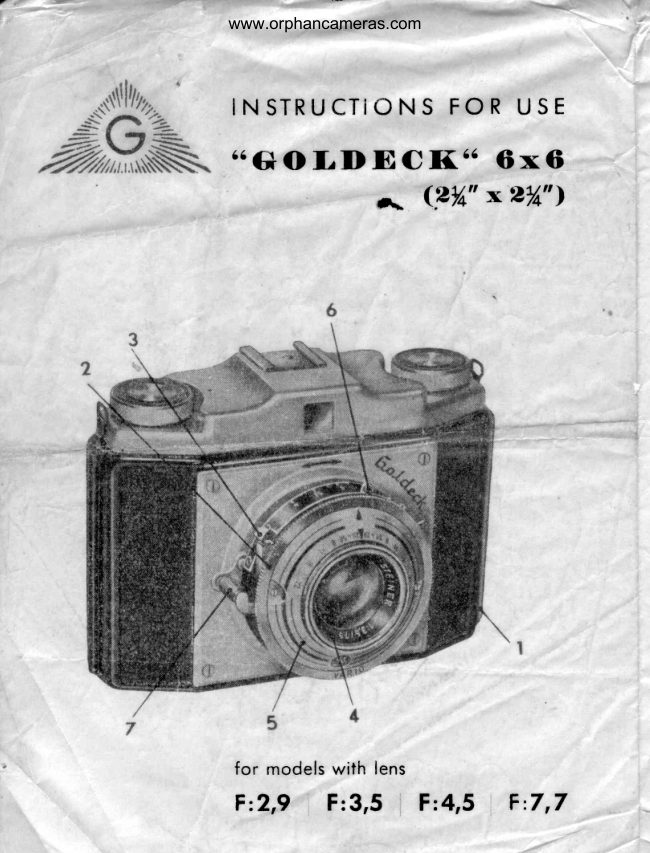

ly INSTRUCTIONS FOR USE

Fi Dw “GOLDECK“ 6x6
a 24" x 2%")

for models with lens

F:2,9  F:3,5  F:4,5  F:7,7

eM phancameras.com

» pina
Loading the camera
Use film size 2![¢" x 31/4" (6x9 cm) standard 120 on wooden
spool, which enables you to make 12 exposures size 2![,"x2!|,"
(6x6.cm)
To open the camera for inserting the film, push the small pro-
jecting lever (1) downwards, then the camera back can be easily
pulled out. ~
Slightly pull back the lower metal thumb spring of the empty
film chamber and insert the spool so that the lower and upper
metal thumb spring firmly engages the film spool. Press the
thumb spring back into position.
Remove the paper strip from the film. Carry end of the paper
across the guide rollers to the empty take-up spool with win-
ding mechanism. Give winding knob 1 to 2 turns while holding
the film in position by applying slight pressure on full film spool,
until the film is stretched taut. Close the camera back and push
small lever upwards. Slide open the film window on back of the

camera and turn winding knob until No. 1 appears. Close thew

~—— colour-corrected. J

film window, and even highly sensitive film will be comple-
tely protected.

Shutter

Goldeck model F:2,9 with Prontor SVS shutter: shutter
speeds B, 1, 2, 5, "ho, */2s, {soy "/so0, "soo, self-releaser, fully
synchronized.

Goldeck model F:2,9 with Pronto shutter: shutter speeds «
B, ‘25, /s0, "/100, "/200, self-releaser, synchronized. -
Goldeck models F:3,5 and F:4,5 with Vario. shutter: shutter
speeds = B, "/2s, "rs, "/200, synchronized.

Goldeck model F 7,7 with Gauthier Automatic shutter:
shutter speeds = B, "/2s, "/1s, synchronized,

Lenses
All lenses are made of highgrade optical glass, coated an
