Page 1 · Read text

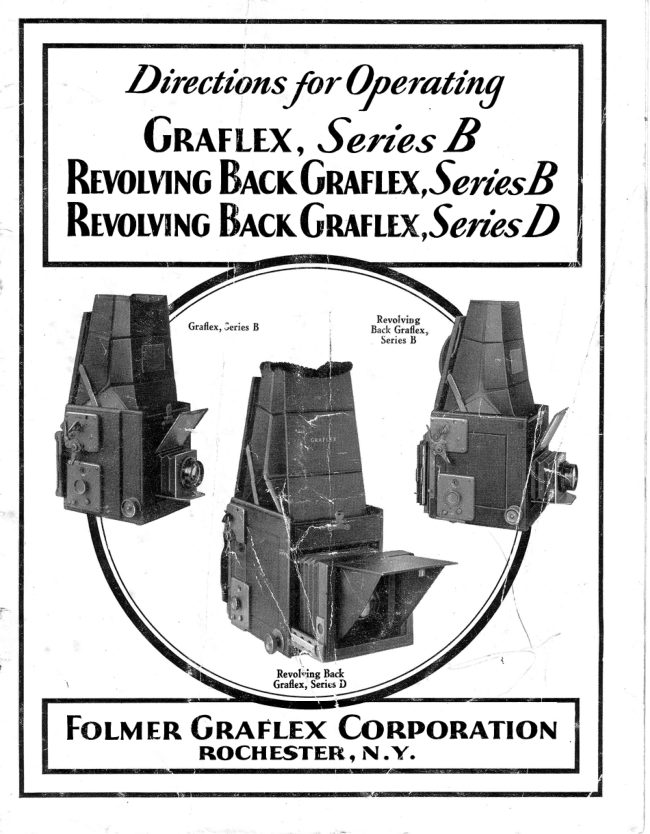

Directions 5 for Operating GRAFLEX, Sezvies B Revovinc Back GRAFLEX, Series B Revoivinc BACK GRAFLEX,SevzesD | FOLMER GRAFLEX CORPORATION ROCHESTER,N.Y.View original page 1
Page 2 · Read text
Directions for Operating Graflex, Series B Revolving Back Graflex, Series B Revolving Back Graflex, Series D FOCUSING Release the spring catch L, and raise the cover, which automatically extends the Focusing Hood. Press down the two side arms, locking the Focusing Hood in rigid position. Rack the lens out with the focusing pinion S, which causes the lens cover to open instantly, exposing the lens. SETTING THE Press the lever H down until the mirror locks MIRROR in focusing position. THE SHUTTER The metai plate, attached to the side of the SPEED PLATE camera, gives the approximate shutter speeds, in fractional parts of seconds, obtainable with the various combinations of curtain apertures and tensicn numbers.View original page 2
