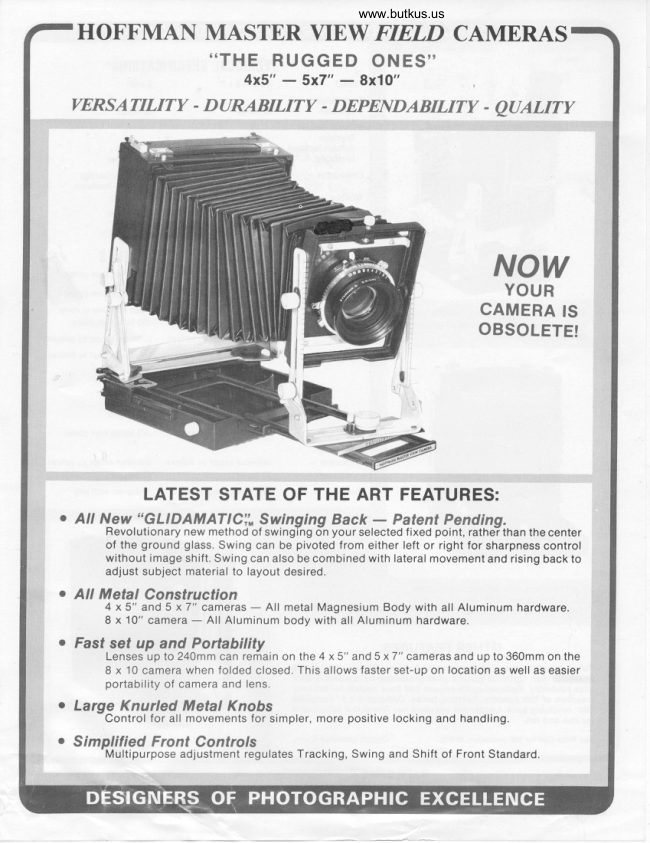

 HOFFMAN MASTER VIEW IIELD CAMERAS
             ,,THE              RUGGED ONES''
                       4x5"           8x10"                      -5x7" -
 VERSATILITY - DURABILITY -



                 NOW
                                    YOUR
                                  CAMERA IS
                                       OBSOLETEI
      tu

                                                                                                                                                                   $ i*liiiL !' H F *ilEiE l$iHFaET$i$  BiH$$,.?i+tiliFErii$$fr[1r
       LATEST STATE            FEATURES:
o All New "GLIDAMATICfi Swinging Back    Patent Pending.        Revolutionary new method of swinging on your selected-            f ixed point, rathel than the center
         of the ground glass. Swing can be pivoted from either lett or right for sharpness control
        without image shitt. Swing can also be combined with lateial movement and rising back to
         adjust subiect material to layout desired.
o All Metal Construction
       4 x 5" and 5 x7" cameras    All metal Magnesium Body with all Aluminum hardware.                                 -       8 x 10" camera -  All Aluminum body with all Aluminum hardware.
  Fasl set up and Portability
        Lenses up to 240mm can remain on the 4 x 5" and SxT" cameras and up to 360mm on the
       8 x 10 camera when folded closed. This allows faster set-up on location as well as easier
         portability of camera and lens.
  Large Knurled Metal Knobs
        Control for all movements for simpler, more positive locking and handling.
  Simplitied Front Controls
        Multipurpose adjustment regulates Tracking, Swing and Shift of Front Standard.

MADE IN U.S.A.                           HOFFMAN MASTER _vr_EW CAll ERt::,
   HOFFMAN CAMERA CORPORATION                                                    Bulletin #HMV-1-84
19 GRAND AVENUE, FARMINGDALE, NEW YORK 11735
                     (s16) 694-4470

I^le advise that you review these pro-
ceedures to get camera to fold cor-
rectly  to be returned in a closed
condition for carrying.
Reference Fig-3 which shows the back
of the camera. Turn knobs lt6 complete-
 ly back until    it  stops and lock in posi-
tion.  By releasing lt7 locking pressure
actuators for the t'Glidamatictr movement
and move back section to rear position               2 --'
for center lines as indicated by llLT  .
Then lock  ll7 .    If  camera back is  tilted
and in a rise position,  return to down
and vertical  position.   Tighten lt5 knobs.
Return to front  of the camera as per
Fig.-2 and proceed as following.
The front 2 section extension beds is
controlled by the knob {lll , 12 and 13.
Release  ltll  and 13 then press ltLz and
push all  section back until  the front
is flush with the base casting.  Then
tighten  llII.  Release knobs tl4 to loosen.
Release knob ll8 and lt9 so they are
straight and aligned as per lll5.   Then
tighten  lt 9 and hold locking knob  lf B,
pushing back to rear of camera back.
Then tighnen in place.
Check lensboard standard that  ll|4 is                                                                                  ( FtG.-2  Iin correct position.  To correct move

EXPLAINATION OF NIJ},IBERED FITTING AND ADJUSTMENTS
 ll-I , Release push pins.
 ll-2, knobs for  tilt   arms for rear camera back.
ll-3, knobs for  front standard rise and fall.
ll-4, Knobs for  tilt   of front  standard.
 ll-5 , knobs to release and lock rear rise.
ll-6, knobs for turning rear geared focusing adjustment with locking knob.
ll-7, Locking pressure actuator for Glidamatic movement. Releasing these two
actuators permits the Glidamatic to move foward and sideways. To swing from
either  side, holding one side in position you must remember to keep center
line  at  llI7.  This movement is easy from either side.  Study the cut out so
you understand the proper movements possible
 ll-8, Front locking knob which controls front,  back and side movements for
front  standard.
ll-9, Clamp-ing knob with  handle  to  lock  or unlock    f or  swing.   Keep    -handle            toward  front   or back to  close  camera for  front   standard.
#-10, Adjustment knob to lower or rise lensboard standard for  fine adjustment
without having to use lt3 locking knobs

ll-ll,  Locking knob for  front  extensions.   www.butkus.us
 It-I2, Snap action fitting   to move extensions in 2 positions.
 lf-13, Locking fitting   to tighten extensions when extended.
#-L4, Location markings to position  front lensboard standard.
1t15, Location marking to posi-tion front standard in aligment for closing.
 It-I6, One bi-axis  sprit  level.
It-I7, Location marks for centering camera back for closing and use of
Glidamatic movement for the swing and then you can shift  from side to side
in the cut outs.

WARRANTY: HOFFMAN CAMERA CORP. lirnited warranty is  for 2 years from date
of shipment. We will  replace or repair any defective part or parts at our
factory upon receipt prepaid subject to inspection.  Will  return corrected
F. O. B . ou.r plant
We shall not be liable  for  injury,  loss or damage, directly  or consequential
arising out of use or inability   to use product.
