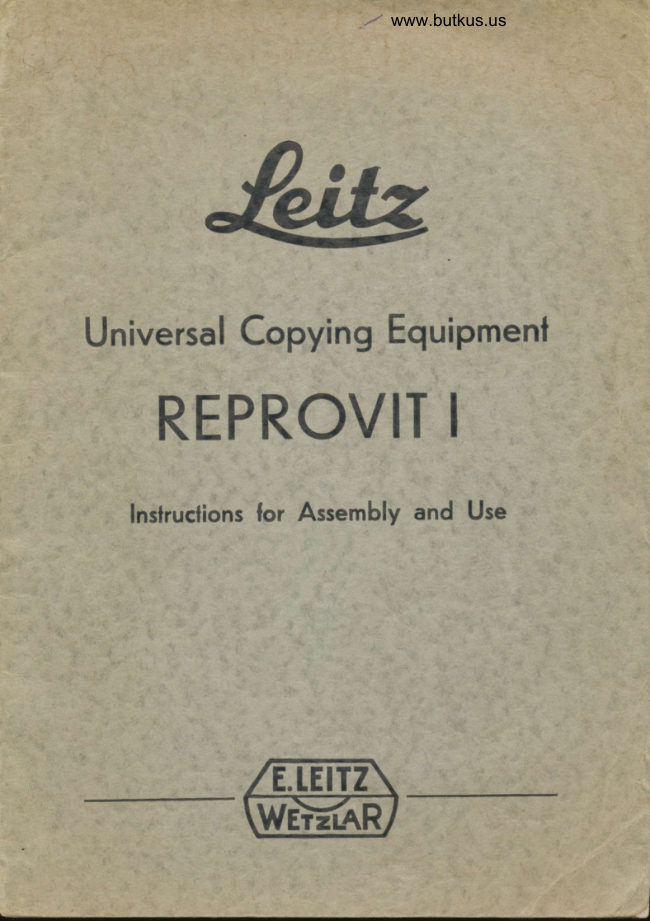

Leica Leitz Reprovit I manual cover
Read the manual Original PDF
Download PDF
Loading your manual…Open PDF directly

Document details

Brand
Leica
Model / document
Leica Leitz Reprovit I
Document type
User manual
Language
English
Pages
19
File size
2.9 MB
Category
Film cameras
Document date
Not specified in catalog

Search available document text

Find a term, then jump to its page in the original PDF. Image-only pages may not be searchable; check the PDF for exact wording and diagrams.

Page 3 · Read text
www.butkus.us

Assembling the Universal Copying Equipmenf


The Reprovit I Universol Copying Outfit is dismontled for dispotch os follows:
l. Boseboo rd23rla x 2631a in., with wired socket, built-in chonge-over switch,
  ond flex.
2. Column 4 ft. high, 1 e/16 in. dio; speciol ossembly tool.
3. Corrying. orm for focusing stoge.
4. Focusing stoge with lorge helicol focusing mount.
5. Proiection heod with flex, ond'100 wott Closs A speciol proiection lomp
  pocked with  it.
6. Other occessories os ordered:
   Leico 50 mm. Elmor lens
    lris diophrogm octuoting ring
   Fine focusing odiustment
  Tope meosure ond plumb weight
   Four-lomp illuminotion orrongement
  Four-woy odoptor
  5 x direct focusing mognifier
  5 x right-ongle focusing mognifier
  Froming box
  Book stoge
   llluminoting box 7 x 9rl2 in.
   llluminoting box 14 x 16 in.
  3 Repro extension tubes
   Micro-odoptor, with releose coupler ond Periplonotic x l0 eyepiece
    Filters
   Boll ond socket heod
  Adoptor UWYOO
View original page 3
Page 5 · Read text
The Ports of the Reprovit I ore ossembled os follows: (see Fig. 2)
'1. Unscrew'protective cover over terminol strip on the underside of the
  boseboord.                                                 ,   J
2. Unscrew the three locking screws inr the flonge of the column.
3. Mount the column on the boseboord ond ot the some time push the flex
   through the hole drilled for it in the boseboord.
4. Fosten the column to the boseboord with the three locking screws, using
   the speciol ossembly tool enclosed. The woshers go between the scre\M
  heods ond the boseboord. Pull the screw evenly tight in rototion.
5. Connect the flex ends to the clomping screws on the ierminol strip occord-
   ing to the wiring diogrom.





                        'Fig. 1. Wiring Diogrom
View original page 5
Page 7 · Read text
6. Reploce protective cover over terminol  strip.
                 7. Loosen the locking screw of the corrying orm, ond push the lotter over
                  the column. Lock by pulling the locking screw tight. The hole drilled to
                  hold the proiection heqd must foce upwords.
                 8. Attoch the focusing slide to the corrying orm ond fosten the locking
                     screw.
                  9. Screw the lorge helicol focusing mount into the threod of the focusing
                      stoge.
                    '10. Clip the proiection heod into the boyonet mount of the ground gloss
                 screen housing. Insert the plug into the sockei ot the fop of the column.
                  Screw in the proiection lomp. Check lom p o go  i nst mo ins voltoge.
               The proiection lomp must olwoys burn verticolly ond must not be moved
               when switched on.
                       'll. Assemble the four-lomp illuminotion orrongement os follows:
                  Push one foot over eoch of the bent tubulor supports ond push tlre tubes
                   together os for os ihey will go to engoge the spring cotch. Adiust the
                    feei so ihot both tubulor columns stond upright, then screw tight. Push
                  the cross bors through the clomps ond lock with the ossembly tool. Fix
                  the lomp units symmetricolly to the cross bors, ond insert fhe plug into
                  the socket on top of the tubulor columns. Push the bose of the illumino-
                  tion orrongement under the boseboord, ond insert the moin plug into
                 the socket on the boseboord. Insert the light bulbs. Check lomps
               ogoins.f moins voltoge.
                   Allernalively:
               Clomp ovoiloble iointed lomp holders to the working toble, or set up
                 oiher suitoble illuminoting lomps. Check lomps ogoinst moins
                voltoge.


         EW,miiTz'\


-I
View original page 7
Page 8 · Read text
www.butkus.us

How lo use the Universal Copying Equipmenf
R E PROVIT   I
llluminotion
Successful copying requires perfecily even illuminotion of the subiect. The
four-lomp illuminotion orrongement provides the most suitoble lighting set-up
for this purpose. In its stondord position this ensures on evenly  lit subject
field. Generolly (e. S. for document copying) this stondord position should
noi be oltered.
The stondord set-up for the four-lomp illuminotion orrongement for uniform
ilf uminoiion of subject oreos up to 17 x 23 in. is os follows (see Fig. 3)  :
The clomps corrying the cross bors ore pushed os for os ihey will go ogoinst
ihe stop neor the fop of the verticol columns. The reflectors ore set ot right
ongles to the corrying orms which in turn ore set ot 45' to the verticol
columns. The reflectors ore thus fixed obout 4 inches obliquely obove the
electric plugs.
                               The reflectors ore left in  this
                                                posilion even when the froming
                                 box is used.
         www.butkus.us                   For close-ups of solid obiects the
                                                 best position of the lompsdepends
                                  on the subiect. The reflectors ore
                                             eosily odiusted in ony direclion
                                            for ihe most suiioble lighting for
                                          generol work or speciol effects.
               t---.                   Equolly suitoble ore universolly
                    ;co45o                      odjusioble iointed lomp holders
                                   which con be clomped to the
                                          toble. A four-woy odoptor  is
                                           ovoiloble for connecting severol
                                              illuminoting units. This odoptor
                                                            is in turn connected to ihe socket
                                  on the boseboord.
                   Fis. 3
View original page 8
Page 9 · Read text
AII lornps should be orronggd symmetricolly oi both sides of the bme boord
    so thoi the light folls on the centre of the boord ot pboui 45o. For even
       ifluminotion of o subiect oreo of 17 x .23 in. the lomps should be ot leost
      4 r/e feet owoy.
    The Focusing Stoge
     The focusing stoge (Fig. 6) moves to ond fro between lwo siops. One of the
      slops con be odiusted on lifting the milled knob on it (Fig. a). When the
     stop is fully pulled bock (l) the slide con be pulled our of the guide roils
     to the left for cleoning etc, In the middle position (2) the stop limits the
      lrovel of the stoge to ihe left in normol use. Pushing the stop forword (3)
      locks the focusing stoge.


                                            Digitally signed by Mike Butkus
                                 DN: cn=Mike Butkus, o=Butkus camera
                                    manuals, ou=butkus.org,Mike Butkus email=mike@butkus.org, c=US
                                      Date: 2021.08.01 22:34:13 -04'00'





                                             Fig. 4





                              www.butkus.us

                                              Fis. 5
       @,€iE?
View original page 9
Page 10 · Read text
www.butkus.us





                                        Fis. 6

When the Leico body (without lens) is fitted to ihe top of the focusing stoge
the lens mount must. fit correctly into the corresponding opening in the slide.
The comero is held by o spring clomp ond must be porollel to the focusing
stoge.
The correct position is fixed once ond for oll for the Leico model in use
(older Leico bodies differ somewhot in their dimensions) by meons of o
movoble stop (Fig. 5). The milled knob A ollows odiustment for the length
of the comero body, ond the smoll screw B neor it for the height.
To roise or lower the corrying orm, the locking screw is loosened  first. The
comero is focused by turning the lorge helicol focusing mount. For lorge
close-ups (r/e reduction to 2 x mognificotion) the detochoble fine focusing
odiustment should be used to roise or lower the corrying orm.
View original page 10
Page 11 · Read text
Setting up the Subiecf
             For detoils on the monipulotion ond operotion of the Leico comero-see the
              Leico Instruction booklets.

 II





                                                    Fig. 7

            The interchongeoble 50 mm. Elmor fi 3.5 is.used os toking lens. To focilitote
              opening up or stopping down, fhe slip-on diophrogm ring VALOO is fitted
             over the lens mount. The notch in the ring should fit over the operture
                setting pin of ihe lens when both ore set to f/3.5. The lens is then inserted
              in the boyonet mount of the lorge helicol focusing mount (Fig.7; tor
                 cloriiy the diophrogm ring hos been omitted in the illustrotion).
               After mounting the looded comero body on the focusing stoge, the proce-
             dure for copying flot subiects is os follows:
                         '1. Switch on the proiector lomp or the lighting units by plugging the moster
               plug into the moins socket. Switch over lo the lighting unit with the
                 chonge-over swiich ot the left hond edge of the boseboord. This disconnects
                the proiection lomp. The ground gloss screen with the proiection heod on
                           it should be obove the lens.
I              2. Prepore the originol to be copied.
                3. Switch over to the projection lomp. When the proiected imoge of the
I              index mork is shorp, the illuminoted oreo shows the exoct field of view
                recorded on ihe film.
View original page 11
Page 14 · Read text
www.butkus.us


 Accessories

 For occurote focusing o 5x direct or right-ongle focusing mognifier  is ovoil-
 oble. The right-ongle mognifier is only used for lorger solid obiects to ollow
 convenient viewing from the front of greoi obiect distonces.
 For Llz scole to full-size reproductions, or for  'l to l                                                                   Llz x ond I tl, to 2 x
 mognificotions, one, two, or three Repro extension tubes ore inserted between
 the focusing stoge ond the lorge helicol focusing mount.
The froming box ll3/s  i  165/s in. with r.eue.sible pressure ploie is designed
to toke books ond similor moteriol up to 5 in. thick. While one holf of the
book is pressed ogoinst the plote gloss sheet, on odiustoble orm prevents
the other holf from flopping down. The froming'box is fixed ond correctly
oligned on the boseboord by o speciol locking device.
With books ond periodicols up to 81/r x 113/s in., two focing poges con be
copied simultoneously. ln this cose the book sloge compensotes for ony
difference in thickness of the two holves of the book. This book stoge evenly
presses both poges ogoinst the gloss plote.
To copy tronsporent originols, on illuminoting box is used (Fig.8). The
originol is ploced on the opol gloss sheet ond, if necessory, held flot by o
second sheet of gloss. The illuminciting box uses moins-operoted lomps ond
con be connected either to the socket in the boseboord, or direct to
the moins.
For photomicrogrophy  the micro-odoptor  is screwed to the focusing stoge
in ploce of the lens (Fig. 9). To odiust the focusing telescope for viewing
from the front, the locking ring obove the shutter cosing is turned onti-
clockwise to loosen it, ond pulled tight ogoin when the focusing telescope
is correctly oligned. The light screening tube should slide up to the index
line into o similor screening odoptor on the microscope tube. The height
of the corrying or:m with ttre focusing stoge ond micro-odopior is odiusted

At low mognificotions the microscope imoge is focused directly on ihe ground
gloss screen of the focusing stoge; with higher power obiectives the focusing
telescope.is used.
View original page 14
Page 15 · Read text
The film is exposed by the dio-
                                phrogm shutter. built into the
                                            micro-odoptor. The focol plone
                                              shutter of the comero musi be
                                  opened os for time exposures
                                       beforehond, ond closed ogoin
                                                ofterwords. A twin releose coup-
                                                       ler with two coble releoses works
                                     the diophrogm shutler ond ot
                                               the some time swings the viewing
                                         prism out of ihe woy. However,
                                     the prism moy olso be left in
                                            position for observotion during
e                                           ihe exoosure.
                                   The mosi suiloble eye-piece is o
                    Fis. 9                 l0x Periplonotic eyepiece.
                                          Further detoiled directions for
photomicrogrophy with the Leico will be found in the insiruction book for
the Aristophot. Dqto contoined  there con olso be used, where opplicoble,
for copying ond close-up work.
The vorious slip-on filters ore useful for increosing controst where necessory,
when reproducing coloured originols in block ond white. Polorizing filters
ore olso ovoiloble to subdue reflections ond glore.
The Universol Focusing Bellows, used in coiunction with the focusing stoge
or with the reflex housing, con olso be ottoched to the corrying orm of the
Reprovit l. For this purpose o speciol odoptor is fitted between the corrying
orm ond the Universol Focusing Bellows.
View original page 15

From the M. Butkus archive. Original publisher and archive notices are retained.
Check the model and edition against your equipment.

PDF verified 2026-10-10.
