Page 2 · Read text

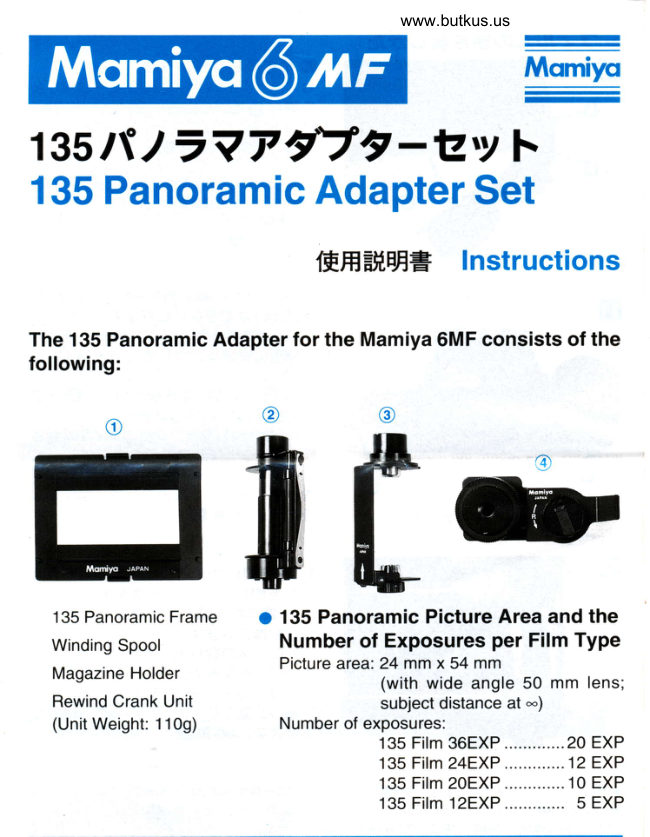

o The 135 Panoramic Frame
Before taking photos, insefi the pano-
ramic frame under the film guide rails
of Camera Body.
* Belore inserting the Panoramic Frame,
be sure to open the light shield curtain first.
lf it is inserted when the curtain is closed,
your fingers may come in contact with the
curtain and light may leak in or other mal-
functions may result.
1. Gently bend the frame (with the Ma-
miya name visible as pictured O ) un-
der the film guide rails, making sure
that it is flat. (Photo. ll )
2. Manually turn the Pressure Plate in
the direction of the arrow until the
White Dot on the plate aligns with the
"220/135" position and "220/135" ap-
pears in the small Selector Window
under the Memo Clip at the back. lf the
White Dot is left at "120", proper focus-
ing is impossible. (Photo. E, E )
* Be sure to set the pr€pcr-Hr*{tpe€d on
the Shutter Speed Dial.
o The Magazine Holder
Magazineait tL, 1. As shown, attach theView original page 2Page 3 · Read text
2. Manuallywww.butkus.usturn the Pressure Plate in
the direction of the arrow until the
White Dot on the plate aligns with the
'2201135' oosition and "2201135" ap-
oears in the small Selector Window
under the Memo Clio at the back. lf the
White Dot is left at "120", proper focus-
ing is impossible. (Photo. E, E )
t Be sure to set the proper Ftlm speed on
the Shutter Soeed Dial.
Digitally signed by Mike Butkus
DN: cn=Mike Butkus, o=Butkus camera manuals,
ou=butkus.org, email=mike@butkus.org, c=US Mike Butkus Date: 2023.12.18 20:15:24 -05'00'
1. As shown, attach the Magazine
Holder to the 135 film magazine and
press down @.
Insert the magazine into the upper
spool stud first. lf the lower spool stud
does not engage with the magazine,
turn the knob @ clockwise or counter-
clockwise and the lower spool stud will
easily fit into the magazine. (Photo. E )
www.butkus.usView original page 3Page 4 · Read text
Venmo @mike-butkus-camera Ph. 2083 PayPal Name Lynn@butkus.org www.PayPal.me/lynnbutkusView original page 4
Page 5 · Read text
2. Manually insert the loaded Maga-
zine Holder into the film chamber, as
shown in the photo, so that the spring
loaded stud receiver is press-fitted into
the Upper Spool Stud on the body.
(Please refer to the following "Winding
Spool" section for more details.)
(Photo. E )
o The Winding Spool
1. To insert the Winding Spool in the
take-up chamber, push the Spool Re-
lease Lever @ to tne right and the
lower spool stud will pop out. Remove
the standard spool and then place the
Winding Spool in the chamber as pic-
tured. (Photo. E )
2. When pushing the spool stud in,
make sure that the spool is properly
seated. lf there is any question about
whether it is engaged properly or not,
gently turn the spool to the right or left.View original page 5Page 6 · Read text
www.butkus.us
o Loading the Film
1. Pull the film tip from the magazine
and pass it under the panoramic frame
making sure it is between the four
guide pins of the frame. Then, securely
insert the tip into any of the slits on the
take-up spool. (Photo. E )
2. Slowly wind the Film Advance Lever
so that the film is wound around the
Winding Spool. Wind the film until the
advance lever comes to a stop at 180'.
lPhoto. E )
* lf the tilm is advanced more than a stop,
the number of possible exposures may be
reduced.
3. After the film has been initially
wound around the spool, be sure to
pull the Film Holder Roller Plate @ of
the Winding Spool in the direction of
the arrow before closing the back
cover. (Photo. E )
Then, wind the Film Advance Lever
until it stops completely. After repeat-
ing this 4 times, "1" will appear in the
Exposure Counter Window thus indi-
cating that the camera is ready for the
first exposure. (Photo. E )
www.butkus.usView original page 6Page 7 · Read text
Caution!! * Be sure to pullthe Film Holder Roller Plate in the direction of the arrow before closing the Back Cover as indicated above. Failure to do so will prevent the film advance stopper from engaging and allow the film advance lever to be wound freely. This will result in the film being wound around the spool without being exposed and the exposure counter will not engage. * The Exposure Counter lndicator will proceed from "S" to >>> 1. Be sure to confirm this sequence when winding the Film Advance Lever. To troubleshoot, should the above sequence malfunction for some reason, open the Back Cover and reset the Film Holder Roller Plate to the correct position. Then, close the Back Covef so that the exposure counter indicat or restarts from "S". Since it is possible that film has been exposed by opening the Back Cover, repeat the wind- ing as detailed above. So, be sure to always place the Film Holder Roller Plate in the cor- rect position.View original page 7
Page 8 · Read text
www.butkus.us
nding the Film
I Rewind Crank
Insert @ of the Rewind Crank Unit into
the Carrying Strap Lug @ on the cam-
era body, and turn the Tripod Mount
Knob () clockwise until it is secured in
the tripod screw on the body. (photo.
E)
* The Rewind Crank Unit may be mounted
on the body before loading the film.
* When the Rewind Crank Unit has been
mounted per the above, the Neck Strap can-
not be hooked on the Carrying Strap Lug @
1. When all the exposures have been
completed, the Film Advance Lever
cannot be wound any further, so be
careful not to force it!
2. Fully depress (once) the Rewind
Button G) on the bottom of the body,
and turn the Film Rewind Crank O in
the direction of the arrow so that the
film is wound around the magazine.
The film counter does not work during
rewinding. (Photo. E )
3. When the Film Rewind Crank has
been unloaded, open the Back Cover
and take out the magazine. When the
Back Cover is opened, the indicator
automatically resets to "S" (Start).
The magazine can only be taken out
from the film chamber if the Magazine
Holder is pushed up in the direction of
the arrow as pictured. (Photo. lE )
* The Rewind crank unit need not be removed when inserting a new magazine.
is over, do not forget to remove the 135 pinoramic lrameI when panoramic photographyOtherwise, of course, the panoramic format will continue.View original page 8Page 9 · Read text
Wide-Angle Lens 50mm f/4
When the 135 Panoramic Frame is
used, the shaded area in the illustra-
tion is the field of view in the viewfinder.
Picture area :24 x 54mm
Visible field of view: 83% at -,
100% at 1m
* Depending on the lens type being used,
the bright frame is automatically selected
and parallax is automatically correcled ac-
cording to subject distance.
Standard Lens 75mm f/3.5
Telephoto Lens 150mm f/4.5
WARNING
Commercial photofinishing machines
will automatically cut 35 mm film in
strips, thereby destroying several
frames of your 135 panoramic (24 x
54 mm) format. lt is therefore impor-
tant to tell the developer not to cut the
negatives into strips until they can be
done so properly.
. 5rr:,'-:r'l l:ii;Ins and appeilrance ,rc sublect to change w thout f lottce
Printed in JapanView original page 9From the M. Butkus archive. Original publisher and archive notices are retained.
