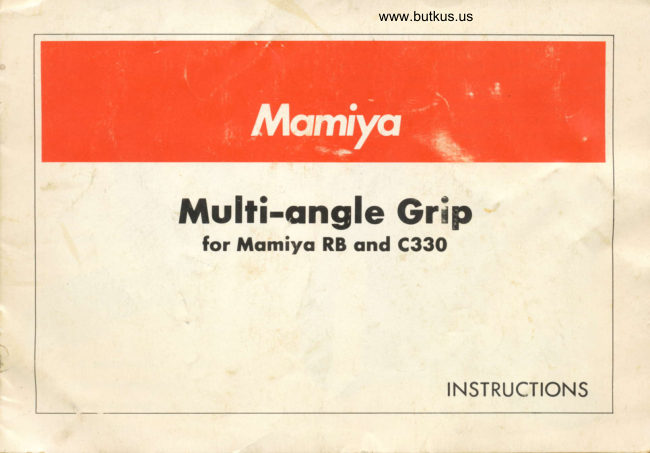

Multi-ongle Grip
   for Momiyo RB ond C33O





                        INSTRUCTIONS

Since the multi-angle grip is designed to permit
freely changing the grip angle merely by depressing
a push button, and to secure varying angles every
2O', a camera can be naturally and stably main-
tained under any photographing posture.
  The trigger mounted on the grip interlocks with
the shutter release button of the Mamiya RB or
c330.





                                                                                                                                         Digitally signed by Mike Butkus                    Mike               DN: cn=Mike Butkus, o=Butkus
                                                                                                       camera manuals, ou=butkus.org,
                                                                                                                email=mike@butkus.org, c=US
                                                                                                                        Date: 2020.12.19 15:52:13 -05'00'                      Butkus

www.butkus.us
r  Parts name                                 r How to change the grip angle
                                      To change an angle between the grip (14) 1. Shutter release connecting plate                                               and the bracket (13), revolve the bracket while
 2. Release button adjusting screw                     depressing the angle adjusting push button (15).
 3. Release button                             By utilizing this convenient system, an ideal                                               angle is obtainable regardless of the photo-
 4. Camera mounting guide pin                      graphing posture one assumes such as eye-level
 5. Magnetic plate                                     or waist-level photography.
 6. Trigger
 7. Accessory shoe unit
 8. Accessory shoe unit attaching screw
 9. Accessory shoe angle securing lever
10. Leither band
11. Base plate (changeable)
12. Camera mounting screw
13. Bracket
14. Grip
15. Angle adjusting push button
16. Trigger locking button
"17. Leather band adjusting screw
18. Tripod socket

t How to mount the camera                        I  Adjusting release button position
   In addition to the tripod socket, two guide          Depending on the type of camera, adjust the
pin sockets are provided for the Mamiya RB or        position of the release button.
C330 on the camera bottom. After setting the          Using a coin or a screwdriver,  first loosen the
base plate (11) on the bracket of the multi-         release button adjusting screw(2); retighten the
angle grip, mount the camera by securing the       screw after moving it to the upper, left position
camera mounting screw (12) while inserting the        for the Mamiya RB type, or to the lower, right
grip guide pins into the camera guide pin        postion for the Mamiya C330.
sockets.
* The base plate securely affixes to the brack-
  et by the mounted magnet. Even when
   turning the grip with the base plate upside
   down, the base plate will not easily fall off.
* By adopting a spring system for the tip of
   the guide pins, cameras not provided with                 For RB                    For C330
  guide pin sockets on their bases can be
  mountd to the bracket.                             I  Adjusting the leather band
                                           The leather band length is adjusted by the
                                                         leather band adjusting screw (17). Use a coin or
                                                      screwdriver to loosen the screw, determine an
                                                    appropriate length df the band, and retighten
                                                      the screw to secure the band.

                                        -3-

www.butkus.us
      r  Locking trigger                          r Accessory shoe unit
                                        On the accessory shoe unit, two accessory
       The trigger locking button (16) is positioned        shoes are mounted at right angles to each other.
    on the upper part of the grip to facilitate        Select the more convenient shoe of the two,
                                                                       attached.                                                             to beI     handling it with one's thumb. The trigger is       depending on the attaching base of the device      locked by sliding this button downward; on the                                                          Loosening                                                                   the angle securing lever (9) ena-      contrary, by sliding it upward, the trigger can
      be pulled.                                             separately moved horizontally and vertically.l                                                    bles the entire unit and the shoes to be       Under the locked trigger conditions, the       By combining manipulation of the unit and the
      shutter release connecting plate (1) remains         shoes. any desired flash-emitting angle for good
        free. While carrying the camera, or when storing        photography is obtainable.
        it in a carrying case, pay attention not to        The entire unit can be removed from the                                                          grip by turning the unit attaching screw (8)      inadvertently push the shutter release connect-                                                         counterclockwise; it also can be removed by       ing plate.                                                             turning the angle securing lever (9) in the same
                                                               direction after firmly tightening  it.


I
1il{

r Attaching the flashgun bracket
    A flashgun can be secured to the camera by
    attaching a flashgun bracket (optional acces-
    sory). The following types of  f lashgun brackets
    are available: Type M:   for Mamiya flashgun
               Type G:   for Graflex flashgun
               Type H:   for Heiland flashgun
     When attaching the flashgun bracket, replace
   the base plate (11) with the flashgun bracket;
   then secure the camera by tightening the
    mounting screw (1 2).
     The subgrip is attached the same way as
    already mentioned, increasing camera-holding
     stability.





5

www.butkus.us
r Attaching to a tripod
  The multi-angle grip has a tripod socket (18)
at the bottom of its bracket to facilitatemounting a camera to a tripod with the
camera and the grip combined. This system is
convenient when employing a telephoto lens.
   After attaching the camera to the tripod,                                                tavoid carrying them together, since the camera
may drop off the tripod should the tripod
screw be sheared.
I  Attaching to a camera other
  than RB/C330
  To attach the grip to a camera without guide
pin sockets, the guide pins (4) can be depressed
into their recesses, responding to slight pushig
force on the camera bottom. Use the camera
mounting screw (12) to easily attach the grip to
any type of camera without worry. The trigger,
however, will not interlock with the shutter
release button when attaching a camera other
than the RB or C330.
