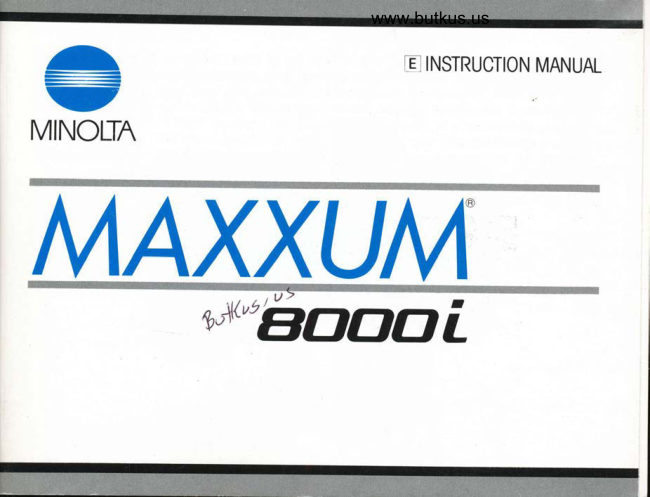

Page 1 · Read text
www.butkus.us
H tEI INSTRUCTION MANUAL
HH
-
MINOLTN
-
MAXXUM
sat"(iggglIView original page 1Page 3 · Read text
-t I Thank you for purchasing this camera. lts design is based on state-of-the-art AF SLR technology. and we hope that it will provide you with many years of satisifying results. F Pressing the camera's program-reset button readies it for completely automatic operation. Beyond this, Maxxum 80OOi allows for customization of six primary functions:focus mode, autofocus area, exposure mode, metering mode, exposure adjustment, and film-advance mode. A single switch is used for changing the focus mode, while the other five functions are selected using the camera's settingcontrolincombinationwiththeappropriatebutton. Atanytimeinthecourseofoperation,all settings can be returned to their standard positions by pressing the camera's program-reset button; in addition, the focus mode is reset to AF each time the camera is switched on. Please take the time to read through this manual and learn about the 80OOi's various features, and then keep it handy for future reference; doing so will allow you to take full advantage of your new camera, right from the start.View original page 3
Page 5 · Read text
IMPORTANT INFORMATION The Minolta Maxxum SOOO| camera is designed to offer innovative functions and per- formance through the combination of camera body, Maxxum AF lenses, Maxxum Flash units, and other accessories distributed by Minolta. We thus caution users that the attachment or use of incompatible lenses, flashes and accessories may resi.rlt in unsat- isfactory performance or damage to the Minolta Maxxum 80OOi camera. To obtain optimum performance throughout the life of your Minolta Maxxum 8OO0i camera, we rec- ommend that you use only lenses, flashes and other accessories distributed or licensed by Minolta for the Maxxum 8OOO|.View original page 5
Page 6 · Read text
www.butkus.us
TABLE OF CONTENTS
Data Panel and Viewfinder Displays .. . .2
Summaryof Operation.... .......4
GETTING STARTED
1. Preparing the Camera
Attaching and Removing the Lens . .....6 5. Power ........8 Battery Installation .......8
Battery-Condition Indicators . ........9 Film.. .......10 FilmLoading.... ......10
Automatic Film-SpeedSetting .......12 Settingthe Film Speed Manually .....13
2. Basic Operation
Holdingthe Camera ......14 Shutter-Release Button ....15 TakingaPicture ....16 Program Reset ....17 FilmRewind.... ...18 8.
Automatic Film Rewind.... ...18
Manual Start of Film Rewind.... ....19
OPERATION IN DETAIL
3. Focus
Basic lnformation and Mode Selection . :... . .21
Autofocus ....21 9. Troubleshooting .......62 Operation and Viewfinder Focus Accessories .... .....64 Signals ... .21 Appendix
Focus-Area Selection .. .24 Operation Chart . ...78 Focus Hold.. .....26 Viewfinder and Data Panel Exposure
Special Focusing Situations .. . .28 Warnings ...79 Manual Focus ......29 Technical Details .....804. Exposure CareandStorage ....84
Basic Information and Mode Selection . . . . . . .30View original page 6Page 12 · Read text
1I..PREPARTNG.THF CAMERA.. ' " www.butkus.us
ATTACHING AND REMOVING THE LENS
To attach:
1. Remove the body and rear lens caps, as 2. Align the red bead on lens barrelwith the red
shown. dot on camera's lens mount. Insert the lens
bayonet into the mount and turn the lens clock-
wise until it locks in place with a click.
When attaching or removing lenses, be care-
ful not to touch anything inside the camera,
especially the lens contacts or mirror. To
protect the lens contacts and elements, at- lf lens is not attached properly, -- appears in
tach the lens caps whenever the lens is not in the data panel's aperture display when cam-
use. era is switched on.View original page 12Page 13 · Read text
Care of Glass Surfaces
o Never touch lens elements or the camera's
eyepiece with your fingers. lf ,the lens
becomes dirty, clean it gently with a lens
brush. Only if necessary, moisten a sheet of
lens tissue with one drop of lens-cleaning
fluid and, starting at the center and using a
circular motion, lightly wipe the surface of
the lens.
o Never lift the mirror or touch its surface,
To remove: since this may impair its alignment. Dust
1 . While pressing the lens release, turn the lens specks on the mirror's surface will not effect
counterclockwise as far as it will go, then lift exposure or picture quality. lf dust on the
lens out of mount. mirror is distracting, the camera can be
2. Attach another lens or the body cap to pre- cleaned at an authorized Minolta service fa-
vent dust from entering the camera. cility.View original page 13Page 14 · Read text
www.butkus.us
This camera uses a 6-volt 2CR5 lithium battery 2. Insert the battery according to the marks in
that supplies power for all camera operations. the battery compartment.
3. Replace the battery cover and turn the bat-
Battery Installation tery-cover lock to tne CLOSE position.
1. With the main switch at LOCK, use a coin or
similar object to turn the battery-cover lock to CAUTIONthe OPEN position. Remove the battery cover. o Do not disassemble or short-circuit the
battery or subject it to high temperatures or
fire. The battery may explode or cause
burns.
o Read and follow all warnings and instruc-
lf necessary, wipe the battery terminals with tions supplied by the battery manufacturer.
a dry cloth to ensure proper contact. o KeeF batteries away from young children.View original page 14Page 15 · Read text
Battery-condition indicators
Each time you slide the main switch from LOCK to ON, the camera automatically checks the bartery
and displays a condition indicator in the data panel:
Full-battery symbol appears for five seconds: power is sufficient for"E=E-f camera operation.
,E==II Low-battery symbol appears for five seconds: power is sufficient but
getting low- keep a fresh battery handy.
Low-battery symbol blinks: camera can be operated, but the battery'E=H-l will need to be changed soon.
Blinking low-battery symbol alone, or no dispray at all appears, and the
shutter cannot be released: Power is too low for normal operation-"l-l replace the battery.
In cases @ and @, the battery-condition indicator appears whenever the shutter-release button
is pressed down. lf no display appears when the main switch is set to ON, double-check that the
battery is inserted correctly before inserting a fresh one.View original page 15Page 16 · Read text
ir;rlii i . n iiffitrffiutrtffi iir. 1ffitui.rurilntitri t www.butkus.us
FILM
Film Loading 3. Place the film cartridge intothe film chamber,
1. Slide the main switch to ON. as shown.
2. Open the back cover by sliding the back-cover
release downward. (When loading film for the
first time, remove and discard the protective
plastic cover that is attached to the pressure RIGHT WRONG !oooo\
plate.) / \=_ (n\oooooo!!oool I ------------u o Before opening the back cover, check that fi);;
0 is displayed in the frame counter; if not, film
is already loaded and the camera should not Make sure the tip of the film is correctly shaped.
be opened. The type of film loaded can be Otherwise, the film may not wind properly.
verified by checking the film window. (For
instructions to rewind a partially exposed roll
of film, refer to pg. 19).
o Always load film in subdued light, or at
least shaded from direct sunlight.View original page 16Page 17 · Read text
4. Extend the tip of the film past orange mark. 5. Close the back cover so that it snaps shut.
Make sure the holes in the lower edge of the film The camera will automatically wind the film to
engage the teeth on the sprocket. the first frame, and 1 will appear in the frame
counter.
lf the film extends too far or does not lie flat, lf the film is incorrectly loaded, the frame WRONGffi
gently push the excess back into the cartridge. counter remains at O and blinks, and the shutter
locks. Remove the film and repeat steps 3 to 5.View original page 17Page 18 · Read text
www.butkus.us
Automatic$wFilm Speed Setting Setting the Film Speed Manually
The film speed is set automatically for ISO 25- lf desired, you can manually override the DX-
5000 DX-coded films. When loading film, be coded film speed and reset the film speed to a
sure to confirm the ISO setting, which will be higher or lower value. Also, if you are using a
displayed briefly in the data panel. lf the film film that is not DX coded, this control should be
speed set for a DX-coded film is different than used to set the required film speed. Film speeds
that printed on the film cartridge, the camera's can be set manually from ISO 25 to 6400, and
DX-memory is active. Refer to the following are selected in 1/3 stop increments.
page for details on the DX-memory feature.
lf you use f ilm that is not DX coded, the previous To Set the film speed manually:
film speed setting will be retained; initially, this 1. Open the card door on the right side of the
value is set to ISO 1OO. Instructions for setting camera.
the film speed manually are given in the next 2. Press and releasethefilm-speed button. The
column. current film-speed setting will be displayed in
the data panel, beside the film-speed mark
(tso).View original page 18Page 19 · Read text
t
To confirm the film-speed setting during op-
eration, press the card door's film-speed but-
ton: the current setting will be displayed in
the data panel for about 5 sec.
DX Memory
Once you change the film speed for a DX-coded
film, the adjustment is retained in memory.
Until a film with a new DX-coded ISO rating is
inserted, the film speed that you have set man-
ually will be automatically applied to all film sub- 3. Move the setting control right to increase the sequently loaded. Once a film with a new DX- film speed, or left to decrease it. Holding the coded ISO rating is inserted, the film-speed control in either direction causes the film speed memory will be erased. to change continuously. The following sequence illustrates DX-memory 4. When the film speed that you want to set ap- operation. lt assumes that the DX-memory is pears in the data panel, press the shutter-re- initially inactive. lease button lightly to restore the operating dis-
play. Film Operation ISO Settinq
lf step 4 is omitted, the film speed currently dis- 1. DX-coded ISO 100film loaded 100
played in the data panel is set, and the operating 2. Film speed manually reset to
display returns within 5 seconds. rso 50 50
3. DX-coded ISO 1OO film loaded 50
4. DX-coded ISO 200 film loaded 200
5. DX-coded ISO 1OO film loaded 100View original page 19Page 20 · Read text
2. BASIC OPERATION www.butkus.us
HOLDING THE CAMERA
To obtain sharp, blur-free photos, hold the cam- Two recommended ways of holding the camera
era as still as possible and steady it against your are shown here. lf you grasp the camera firmly
face or body. To take pictures, press the shutter- with your right hand on its handgrip, you can
(A)release button gently with a slow, steady shift the camera back and forth for horizontal
squeeze- never a quick jab. and vertical (B) pictures without removing your
hands from the controls. When using auto-
focus, make sure not to touch the lens focusing
ring or AF illuminator.View original page 20Page 21 · Read text
SHUTTER-R ELEASE BUTTON
In describing camera operation, this manual
refers to two shutter-release button operating
positions: a pre-release, "partway-down" posi-
tion that activates the camera's autofocus and rffilautoexposure systems, and an "all-the-way"
down position that triggers the shutter-release kkPartway All-the-waysequence. Both operating positions, as well as Rest down: AF down:the rest position, are illustrated at right. and AE Shutter
activated released
The viewf inder focus and exposure signals f unc-
tion when the shutter-release button is pressed In standard operation, described in the followingpartway down, whether you operate the camera section, focus and exposure are set when thein automatic or manual mode. In manual mode, shutter-release button is pressed partwaythey can assist you in setting focus and,/or ex- down; autofocus-integrated metering ensuresposure.
that exposure is correct for the subject that you
focus on.
15View original page 21Page 22 · Read text
www.butkus.us
TAKING A PICTURE
661
..1E-l
This section describes the simplest way to op- 3. While looking through the eyepiece, center
erate the camera. the focus frame on your subject and gently press
the shutter-release button partway down to fo-
1. Slide the main switch to ON, then press the cus.
program-reset button to set the camera for fully
automatic operation.
2. Hold the camera firmly with your right hand
on its handgrip and support the lens with your
left hand.
16View original page 22Page 23 · Read text
Program Reset
Pressing the program-reset button brings the
camera's main selectable functions to their
standard settings, including autofocus and auto-
exposure. lf you are a first-time user and want
to get a feel for the way the camera operates
before learning about its functions in detail, this
is an easy way to get started. Once you've
become familiar with the camera, the program-
reset button provides a way to rapidly return the
4. When the green focus signal glows, press camera to standard operation, useful for when
the shutter-release button all-the-way down to you're through with a setting configuration
take the picture. adopted for a particular shooting situation.
Whenever the program-reset button is pressed, L--jr_t the camera is set to autofocus mode, wide focus
| r P o--r r'> | P o--J:-
l@EE-l l@EE-l area,metering,programsingle-frameexposureadvancemode,mode,multi-pattern+O.O ex-
posure adjustmenU also, self-timer and multiple
After the picture is taken, the film is automat- exposure functions will be canceled if previously
ically advanced and the frame counter increases set.
by one.
lf the red rather than the green focus signal
blinks, focus the lens manually. Refer to the
focusing section for rnore information.
17View original page 23Page 24 · Read text
www.butkus.us i
FILM REWIND
oi-'J )oii-l
Automatic Film Rewind When film rewind is complete, the frame count-
After the last frame on the roll is exposed, the er displays O and the data panel's film-cartridge
camera automatically starts rewinding the film. mark blinks to indicate that the f ilm cartridge can
With a fresh battery loaded in the camera, it be removed. Open the camera back and remove
normally takes 8 seconds to rewind a 24- the film. The shutter remains locked if a re-
exposure film. While rewind is in progress, the wound film cartridge is left in the film chamber.
frame counter displays the frame number of the
last exposure.
lf it's necessary to change batteries before
rewind is complete, press the rewind button
to restart after the new battery is installed.
1BView original page 24Page 25 · Read text
The film leader will be wound all the way into
the cartridge. lf you want the film leader to
be left out after the film is rewound, you can
use the Customized Function Card to change
this function. See p. 64 for more details
about this and other Creative Expansion
Cards.
lf you accidentally open the camera back
before the film is rewound, close it imme- Manual Start of Film Rewind
diately. Press the rewind button to finish You can also rewind and remove a roll of filmrewinding the film. Light falling on the film before the last picture is taken. To start film
will ruin many of the pictures, but your quick rewind manually, simply open the card door on
action may save a few. the right side of the camera and press the
rewind (s) button.View original page 25Page 26 · Read text
www.butkus.us
DETAIL OPERATION IN
Focus
Exposure
Metering
Film Advance
Exposure Options
Additional Information
20View original page 26Page 27 · Read text
Operation and Viewfinder Focus Signals
Set to AF mode, the camera focuses automat-
rvil \ - ically when the shutter-release. button is
I I pressed partway down. With most subjects, ffiO\
I l: focus is rapidly set: the viewfinder displays a
III focus confirmation signal and the picture can be d) I I taken.
^Hl/ The AF system is capable of focusing on both
still and moving subjects. With moving sub-
jects, focus is adjusted continuously accordingWhile either autofocus or manual focus can be
to changes in subject position; in addition, pre-selected, autofocus is the camera's standard fo-
dictive Focus Control improves autofocus oper-cusing mode, and is set each time the camera is
switched on. ation for moving subjects that are approaching
the camera by automatically compensating for
To shift between manual and autofocus modes, the change in subject position that occurs dur-
slide the focus mode switch down. Whenever ing the shutter-release sequence.
the camera is set to manual focus, M. FOCUS is
displayed in the the data panel.
21 I
)View original page 27From the M. Butkus archive. Original publisher and archive notices are retained.
Check the model and edition against your equipment.
PDF verified 2026-10-10.
