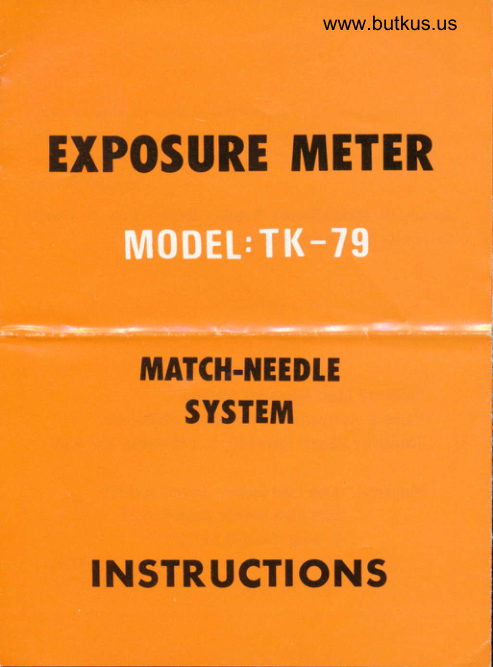

Page 1 · Read text

www.butkus.us


EXPOSURE METER





      MATCH-IIEEDlE
        SYSIEM


  INSTRUCTIONS

View original page 1

Page 3 · Read text

Automatic Match-Needle Reading System Easy to Handle.
Extremely Sensitive & Durable.


        ,       SPECIFICATIONS

    Reflected Light Measuring Method.
   Angle of Acceptance of the Meter: 50 degrees.
    Sensitivity Range: from 6EV to ITEVwith 100 ASA.

   Numbers: ASA Film Speeds: from 6 to 6400
           DIN Film Speeds: from 9 to 37
               F. Stop: from fl to 82
               Shutter Speeds: from 8 sc. to U2000 sec.
               Cine: 16 f.p.s.

View original page 3

Page 4 · Read text

www.butkus.us
       DESCRIPTION OF EACH PART





1. Photocell Window         8. EV-Indicator
2. Pointer Needle           9. Shutter Speed Numbers
3. Following Needle        10. F. Stop Numbers
4. Zero Position            11. Inner Dial
5. ASA Window            12. Outer Dial
6. DIN Window
7. EV-Number             t4. Neck Strap Eyelet

View original page 4

Page 5 · Read text

INSTRUCTIONS FOR USE

t.  Set ASA or DIN number of the film in use, by rotating
   the lnner Dial (11) until the required number appears in
   the ASA or DIN Window (5 or 6).

2.  Point the meter correctly toward the subject and follow
  up with the Following Needle (3) by rotating the Outer
   Dial (12) to the position indicated by Pointer (2).

3. You may read off one of the combinations you prefer of
   Shutter Speed Numbers registered in the Dials (11 & L2).
  The EV Number (7) is indicated by EV-Indicator (8). F.
   Stop Numbers (10) for 16 f.p.s. is shown by a Cine Mark
    in the same manner.

                                                                                                              Digitally signed by mike butkus               mike             DN: cn=mike butkus,
                                                                                      o=orphancameras, ou=29,
                                                                                         email=mike@butkus.org, c=US
                                                                                                Date: 2020.04.18 11:35:55 -04'00'                butkus

View original page 5

Page 6 · Read text

www.butkus.us

               CAUTION

This meter is a precision instrument with an extremely high
sensitivity, and requires careful handling. Falls and knocks
should at all times be avoided. The plastic case helps to
protect the meter.

View original page 6
