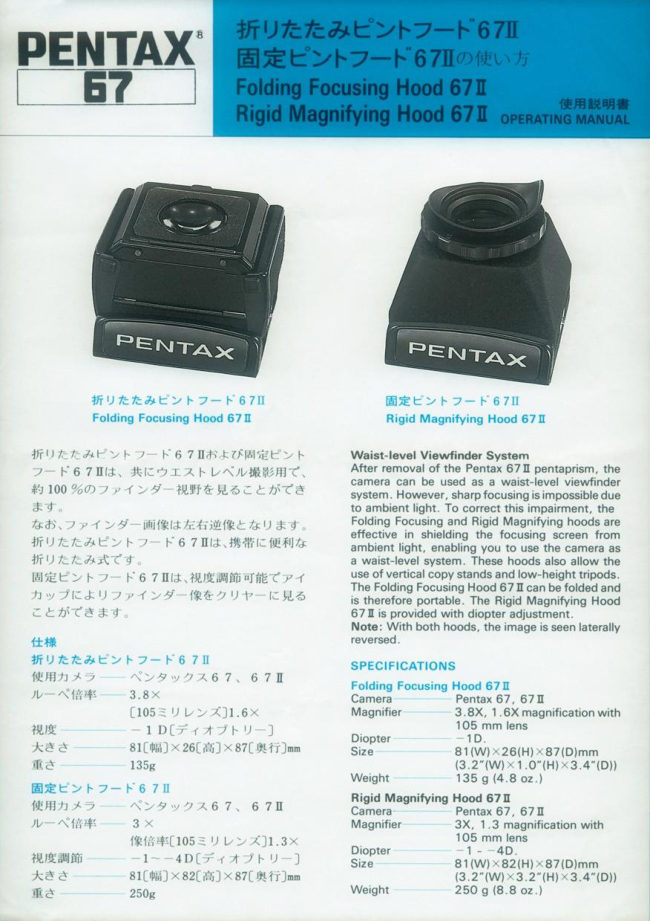

Rigid Magnifying Hood 67

Waist-level Viewfinder Systom
After removal of the Pentax 6711 pentaprism, the
camera can be used as a waist-level viewfinder
system. However, sharp focusing is impossible due
to ambient light. To correct this impairment, the
Folding Focusing and Rigid Magnifying hoods are
effective in shielding the focusing screen from
ambient light, enabling you to use the camera as
2 waist-level system. These hoods also allow the
se of vertical copy stands and low-height tripods.
The Folding Focusing Hood 67 I can be folded and
is therefore portable. The Rigid Magnifying Hood
6711 is provided with diopter adjustment.

‘Note: With both hoods, the image is seen laterally
reversed.

SPECIFICATIONS
Folding Focusing Hood 67

Camera Pentax 67, 670

Magnifier 3.8X, 1.6X magnification with
105 mm lens

Diopter 1D

Size 81(W)x26(H) x87(D)mm
(3.2°(W)1.0°(H) x3.4"(0))

Weight 135 g (4.8 02.)

Rigid Magnifying Hood 6711

Camera: Pentax 67, 671

Magnifier 3X, 1.3 magnification with
405 mm lens

Diopter 1-40.

Size 81(W)x82(H) x87(D}mm_
(3.2"(W)x3.2°(H)x3.4"(0))

Weight 250 g (8.8 oz.)

®

BHFLRRABA

ARBRE OBS:

S79 DAGRRA BA

87075

Remove the pentaprism and attach this hood by
following the steps below. Note the image is seen
laterally reversed when using this hood. The photo
graphs in this operating manual are 67. However
671 can be used in the same manner as 67.

1. As shown in photo 1, open the hood by raising
the rear part with your thumb until the side flap
of the hood is placed in vertical position. The
focus magnifier will automaticaly be projected in
place

2. Focus the lens on the subject. To get a full view
Of the focusing screen, lift up the magnifier and
push it forward as shown in poto 2

3. To fold the hood, place the magnifier in its
‘original position and then push the front and rear
Of the hood with your fingers. This will fold the
hood toits original position. When the hoodis not
in use, fold the hood in its original position.

Rigid Magnifying hood 6:

Remove the pentaprism and attach this hood. Note

the image is seen laterally reversed when using this

hood,

‘© How to adjust the Diop!

1. Rotate the diopter adjustment ring as shown in
photo 4 until the circle in the viewfinder appears
in the sharpest focus.

2. After adjusting the diopter, correct the position
Of the eyecup. The eyecup is fixed in place by
three screws

SPECIFICATIONS ARE SUBJECT TO CHANGE
AT ANYTIME WITHOUT NOTIFICATION OR
ANY OBLIGATION ON THE PART OF THE
MANUFACTURER.

Printed in Japan,

01-9811
