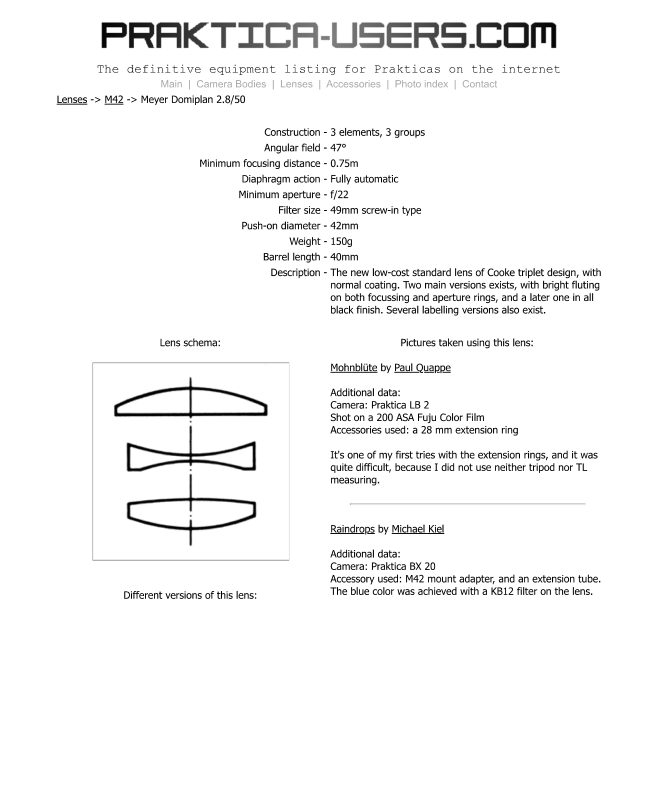

PRAKTICA-USERS.COM

The definitive equipment listing for Prakticas on the internet
Lenses -> M42 -> Meyer Domiplan 2.8/50

Construction - 3 elements, 3 groups
‘Angular field - 47°
Minimum focusing distance - 0.75m
Diaphragm action - Fully automatic
Minimum aperture - f/22
Filter size - 49mm screw-in type
Push-on diameter - 42mm
Weight - 150g
Barrel length - 40mm

Description - The new low-cost standard lens of Cooke triplet design, with
normal coating. Two main versions exists, with bright fluting
on both focussing and aperture rings, and a later one in all
black finish. Several labelling versions also exist.

Lens schema: Pictures taken using this lens:

Mohnbliite by Paul Quay

Additional data:

Camera: Praktica LB 2

Shot on a 200 ASA Fuju Color Film
Accessories used: a 28 mm extension ring

It's one of my first tries with the extension rings, and it was
quite difficult, because I did not use neither tripod nor TL
measuring.

Raindrops by Michael Kiel

Additional data:
Camera: Praktica BX 20
Accessory used: M42 mount adapter, and an extension tube.

Different versions of this lens: The blue color was achieved with a KB12 filter on the lens.
