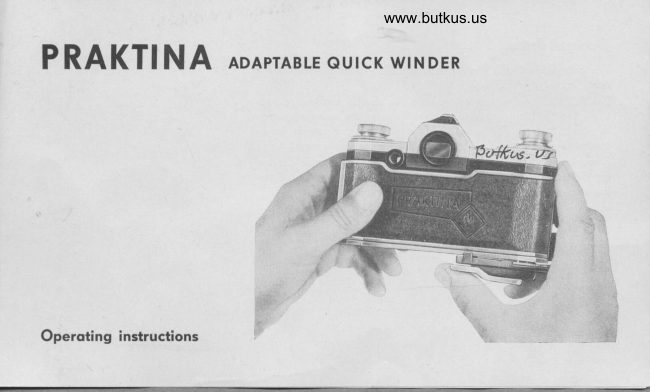

                   ADAPTABLE QUICK WINDERP RAKTI N A





Operoting instructions

www.butkus.us
Adoptotion of the Quick Winder to the comerq
At the underside of the comero is o coupling ploce     the other for the first. The comero's winding knob
for connection of mechonicol odditionol devices (l),       is then turned until the coupling elements notch
figure 2. The odoptoble Quick Winder with its     noticeoble one into the other. The mounting tokes
drromium-ploted knurled disk (3) corries the counter-     ploce with the oid of the fixing ring (3) which  is
port of the couplinS (2r.. The odoptoble Quick     turned clockwise, Two cotch noses grip oround the
Winder is ploced on the PRAKTINA in such o woy,     comero housing ond secure the QuickWinder ogoinst
thot the coupling ploces ore stonding one upon      distortion (4), figure 3.
                           Woy of operotion
                                                       After film looding of the PRAKTINA this combi-
                                                    notion is reody for operotion (Fig. l). The ongle
                                                     of winding of the quick cocking lever omounts to
                                               obout 1800 in odopted condition. The tronsmission
                                                 between winding lever ond cocking oxle is obtoined
                                          by o necessory geor tronsmission. After winding
                                             the quick winding lever returns outomoticolly to
                                                                  its position of rest.

Bock-reeling of the exposed               lmportont when operoting
film                                      with the Quick Winder
When using the odoptoble Quick Winder the bock.    Poy ottention to the exoct odjustment of the film-
reeling of the exposed film ot the film's end  is     counting disk! -
necessory. For this purpose the releose button (5),      Control of the counting disk ond precoution towords
fig. 2, is pressed in. Bock-reeling now tokes ploce     the film end | -
in the usuol woy os indicoted in thO instructions                                                                     !f this is not token into considerotion, the fullfor use of the cqmerq.                                            co&ing pressure will get ef{ective on the film end
                                                           fixed in the cortridge ond to press the bock-reeling
                                                   button will become exceedingly difficult. Further-
                                                 more, the perforotion moy be torn, whereby bock-
                                                       reeling of the exposed film is mode impossible.


      VEB KAMERA- UND KINOWERKE DRESDEN

                                                                                                             trr-e-22 Ag.91/0340/60 - 1983
