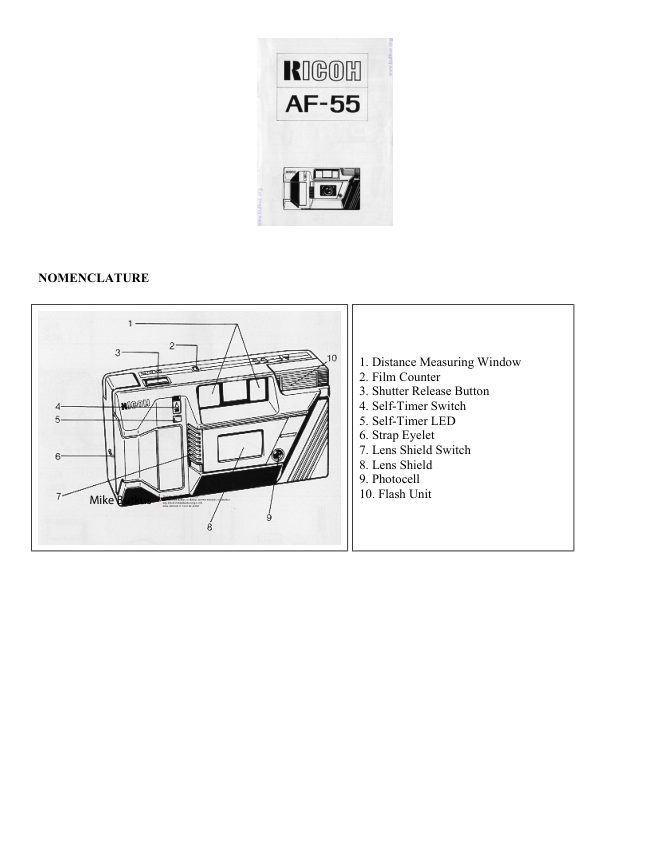

Ricoh AF-55 User manual

www.butkus.us


  11. Viewfinder Eyepiece
  12. Film Advance/Rewind Monitor
  13. Flash Ready Lamp
  14. Film Take-up Spool
  15. Back Cover Lever
  16. Manual Film Rewind Switch
  17. Film Guides
  18. Tripod Socket
  19. Film Rewind Shaft
  20. Battery Compartment Cover
  21. Back Cover
  22. Film Loaded Window
  23. Film Chamber
  24. Sprocket



   INSERTING THE BATTERIES
   The camera will not operate unless
    the batteries are installed. It is
    important to ensure that the batteries
    are inserted correctly.
    1. Push the Battery Compartment
   Cover in the direction of the arrow to
    pull open. (Fig. 1)

    2. Insert two batteries, checking that
    the *** and e on the batteries are
    lined up correctly according to the
    polarity diagram inside the battery
    compartment. (Fig. 2)

    3. Close the Battery Compartment
   Cover by pushing it in the direction
    of the arrow. (Fig. 3)

    Batteries for Use

   Two Alkaline penlight batteries, or
   two Manganese penlight batteries.

   * Do not use Nickel Cadmium
     batteries.

   * Please remove the batteries from
    the camera when you do not use the
   camera for a long period of time.

www.butkus.us


* Generally, in cold conditions, the capacity of the batteries decreases, and in some cases the camera may not
operate correctly. You should either warm the batteries or keep a spare set In your pocket, inserting them just
before you use the camera. Incidentally, if the capacity of the batteries has decreased in cold temperatures, it
will regain full capacity in normal temperatures, so do not throw the batteries away.

SETTING THE FILM SPEED
Please check whether the film has a DX code system or not. (Fig. 8)

(A film with a DX code)
Setting the film speed is not necessary. The camera automatically makes the correct film speed setting.

(A film without DX code)
If non-Ding film is loaded in the camera, the camera will automatically set itself to ISO 100.

* Please be careful when you take a picture with ISO 1000 film in bright sunlight, the picture may be
overexposed.



LOADING THE FILM
1. Push the Back Cover Lever downwards in the direction of the arrow to open. (Fig. 9)
2. Load the film into the Film Chamber and pull out the film leader, placing it over the Film Take-up Spool.
(Fig. 10)
3. Please make sure that the film is within the Film Guides. (Fig. 11)
4. Press the Back Cover shut so that the Back Cover Lever returns to its original position. The film is
automatically advanced until number "1" appears in the Film Counter Window. (Fig. 12)
5. If the film Advance/Rewind Monitor rotates rapidly then the film is advancing correctly. If the monitor does
not rotate, the film has not advanced correctly, so please reload the film. (Fig. 13)

* Always avoid direct sunlight when loading the film.

* The Film Loaded Window is to confirm whether film is loaded or not.

VIEWFINDER (Fig. 14)
1. Field of View Frame
The subject (such as people or scenery) that you wish to take should be set within this frame.

www.butkus.us





                                        REWINDING THE FILM (Auto
                                                           Reverse)
                                                                 After the end of the film has been
                                                                 reached, the film is automatically
                                                          rewound.

                                                       * As the film is being rewound, the
                                                          Film Advancei/Rewind Monitor
                                                                      will rotate and the Film Counter
                                                                      will run backwards. (Fig. 17)

                                                       * When the film is fully rewound,
                                                                   the motor stops automatically and
                                                            "S" is seen in the Film Counter.
                                                You can now open the Back Cover
                                                                      to unload the film.

                                                       * If you wish to rewind the film
                                                                 before the end of roll is reached,
                                                          push the Manual Film Rewind
                                                           Switch with a ball point pen, etc.
                                                                        (Fig. 18)

                                                       * You can close the Lens Shield
                                                   when the film is being rewound.





FLASH PHOTOGRAPHY
When flash is required, the Flash Unit automatically pops up into vertical position.

1. Check that the Flash Ready Lamp is lit, then take the picture. (Fig. 19)

2. When you have completed flash photography, please be sure to push the Flash Unit down. This turns off the
flash.

Flash Photography Distance Shooting Range: 1 - 4m (3.3 - 9.8 ft)

* If the Shutter Release Button is kept pressed halfway down before the Flash Ready Lamp comes on, the Flash
Unit will not be charged.

* Be careful not to put your finger in front of the flash window.

* If the Shutter Release Button is pressed before the Flash Ready Lamp lights up, the shutter will not release.

* You can use the Flash Unit as a fill-in light for daytime photography too. Cover the photocell with your hand
and press the Shutter Release Button in halfway. Then the Flash pops up.

USING THE SELF-TIMER
1. Slide the Self-Timer Switch fully in the direction of the arrow. Then the Self-Timer LED on the front of the
camera blinks on and off. The shutter will be released about 10 seconds later. (Fig. 20)

* If you wish to clear the self-timer once it has started, close the Lens Shield.

PROPER CARE OF YOUR CAMERA
* If there is dirt on the lens or Distance Measuring Window, do not touch directly with your fingers. Use a
blower to blow the dust away, or wipe the surface gently with a soft cloth.

* Camera malfunction can be caused by shock, humidity, salt etc. After using the camera at the beach or places
where there are chemicals, wipe it particularly carefully.

* Take care not to expose the camera to sudden changes in temperature, as they may cause malfunction.

* Do not expose the camera for a long period of ti me in extremely high temperatures, such as in your car or on
the beach, as this may cause malfunction.

* When using a tripod, do not try to force a long screw into the socket. (The screw length should be less than
5.7mm, JIS 5.5mm )

* Do not place the camera near equipment that has strong magnetism such as television or radio.

* Remove the batteries before storing the camera, and keep the camera in a place that is free of dust and
humidity.

* Avoid keeping the camera in a closet, etc. where the camera may be affected by mothballs, insecticides, etc.

MAJOR SPECIFICATIONS

Type: 35 mm lens shutter type with automatic focusing

Lens: 35 mm F3.9 Ricoh lens, 3 elements, 3 groups Focusing: Automatic focusing distance measuring
(shooting) range 1 m (3.3 ft.)-- 00

Shutter: Programmed AE type electronic shutter, 1/30 --1/500 sec.

Self-Timer: Built-in electronic type. Operating delay of approx. 10 sec. with LED

Viewfinder: Albada type bright-frame viewfinder.

Magnification: 0.47X, Field of view 84%

Viewfinder Field of View Frame, Parallax Correction Mark,

www.butkus.us

Information: Auto Focus Frame

Exposure With Cds photocell, Exposure Coupling Range

Adjustment: EV 8.8--EV17 (ISO 100)

Film Speed Range: ISO 100--1000. Automatic setting the film speed with the DX-code system

Film Advance: Electric motor with Film Transport Monitor. Rewind: Automatic 1st frame setting. Automatic
film rewind at the end of film

Film Loading: RICOH Auto-Load system

Exposure Counter: Additive, automatically resets to S when the camera back is opened

Built-in Flash: Automatic pop-up electronic flash in dim light

Guide Number: 100(1SO 100, m). Exposure adjustment through flashmatic system

Interval Between: About 7 seconds

Flashes: Number of Shots Possible: With new alkaline batteries (under normal temperature of 20°C) without
using the flash unit: more than 70 rolls of 36 exposure film when using the flash unit repeatedly; more than 7
rolls of 36 exposure film

Power Source: 2 penlight Alkaline batteries or 2 penlight

Manganese batteries (Nickel Cadmium batteries cannot be used)

Other Features: Flash Ready Light, Film Loaded Window

Dimensions: 118 mm (W) X 66 mm (H) X 45 mm (D)

Weight: 2359 (without batteries)

Specifications and appearance are subject to change without notice.
