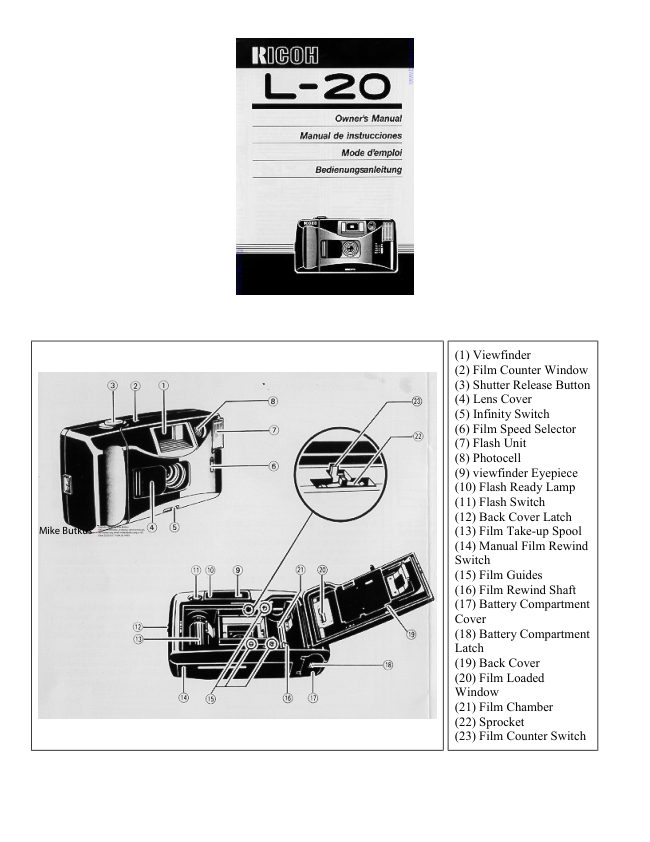

Ricoh L-20 User manual

www.butkus.us


1. Inserting the batteries


                                                                                        · Push the Battery
                                                          Compartment Latch to pull
                                                            open Battery Compartment
                                                            Cover



· Insert a Lithium battery (Panasonic CR-123A or Duracell DL-123A) or two AA size batteries (Alkaline or Manganese)
following the polarity information inside the Battery Compartment.

· Close the Cover by pushing it shut

Notes: Do not use Nickel Cadmium batteries.

Remove AA batteries from the camera when you do not expect to use it for a long period time.

Replace batteries with new ones when the Flash Ready Lamp takes more than 30 seconds to light up.

In cold conditions the capacity of the battery decreases, and the camera may not operate correctly. In that case, you
should warm the battery (carry them in your pocket for exam pie) before using the camera.



2. Opening the Lens Cover





                                    · Slide the Lens Cover in the direction of the arrow.

                                    · The Lens Cover is interlocked with the safety mechanism of the
                         camera You can fire the camera only when the Lens Cover is open.





3. Checking the Battery


                                                            · Cover the Photocell with your finger, and press
                                                 the Shutter Release Button down halfway

                                                            · Make sure that the Low Light Warning LED in
                                                 the Viewfinder lights up.



Note: Some clear plastic surfaces may be covered with a protective plastic film. Gently remove this material before using
camera.

4. Setting the film speed


                              · Slide the Film Speed Selector to the closest ISO number according to the film
                      speed indicated on the outside of the film.

                              · Applicable Films: ISO 100 ISO 1000 It's recommended you use color negative
                          films. Color slide films may be improperly exposed under varying lighting
                         conditions.


(webmaster: Color slide film is very sensitive to the kinds of light it is shot under. Fluorescent lights, indoor lights, etc. The
colors may be off and slide film cannot be "corrected" like print film can when being printed.


                                                           · Push the Back Cover Latch down

                                                           · Load the film into the Film Chamber, pull out the film
                                                    leader, press the film container's outlet so that the
                                                surface becomes level with the rail surface and place the
                                                film





                                 · Line up the film within the Film Guides. Make sure that there is no slack in
                          the film and that the edge of the film stays over the Film Counter Switch. Then
                          press the Back Cover shut.





                                  · Press the Shutter Release Button once The film will be automatically
                        advanced until number"1" appears in the Film Counter Window. If number
                          "1" does not appear, or the film transport motor does not stop, the film has
                           not advanced correctly. Open the camera back

                                  · The Film Loaded Window confirms whether film is in the camera or not,
                        and shows you what type of film is being used.

www.butkus.us


6. Taking a picture


                                                           · Be sure your subject is at least 1 m 3 ft. ) A away from
                                                 the camera

                                                           · Take pictures with sunlight behind you.





                                  · The camera takes beautiful pictures outdoors at any focusing distance greater
                          than 1 m (3 ft.) by simply pressing the shutter For distant subjects, the image
                             will be clearer if the Infinity Switch is held while the shutter is pressed. The
                              Infinity Switch is the small gray lever on the front of the camera.

                                  · Push the Back Cover Latch downward.


 7. Using the Flash/


                                                                                       · Use the flash whenever the Low
                                                                   Light Warning LED lights up.

                                                                                       · Slide the Flash Switch to the
                                        ON




                                                          · Wait until the Flash Ready Lamp is lit before shooting.

                                                          · Do not block the flash reflector

                                                          · Always turn off Flash Switch when not in use.

                                                          · Flash shooting Range 1.2-3.1 m (3.9-1 0.2 ft.) (ISO
                                       100 color negative film)




8. Rewinding the Film.


                                                          · After the end of the film has been reached, the film
                                                  will I be automatically rewound.

                                                          · After the film is fully rewound and the motor stops
                                              automatically and the "S" is seen in the film counter.

9. Unloading the Film


                                                          · Push the Back Cover Latch downwards

                                                          · If you wish to rewind the film before the end of
                                                        roll is reached, push the Manual Film Rewind
                                          Switch





                             · Open the Back Cover to remove the film cassette.





Proper care of your camera

*If there is dirt on the lens, do not touch with fingers. Use a blower to blow the dust away, or wipe the surface gently with a
soft cloth.

Major Specifications

Type: 35 mm lens shutter type

Lens: 35 mm Ricoh f4.5 lens, 3 elements, 3 groups

Focusing: Fixed Focus with Infinity Switch

Distance 1 m (3.3 ft) - 00

Shutter: Mechanical shutter, 1/125 sec.

Viewfinder: Reverse Galilean viewfinder

Magnification: 0.52X

Field of view: 80%

Low light warning: CdS photocell activates Red LED in viewfinder

Film speeds: ISO 100 200 400, 1000

Film loading: Ricoh auto load system

Film advance: Automatic advance

www.butkus.us


Film rewind: Automatic rewind at the end of roll

Exposure counter: Additive, automatic resets to "S" when the camera back is opened.

Built-in flash: Electronic flash

Flash recycling time: About 6 sec. (with fresh batteries, at room temperature)

Flash shooting range: 1.2-about 3.1 m (3.9ft.-10.2ft.) with 150100 color negative film

Power source: 1 lithium battery (Panasonic CR-123A or Duracell DL-123A) or 2 AA penlight Alkaline or Manganese
batteries (Nickel Cadmium batteries can not be used.)

Dimensions: 132(W)x68(H)x50(D)mm (5.2x 2.7x2.0 inches)

Weight: 220g (without batteries)

Specifications and appearance are subject to change without notice.
