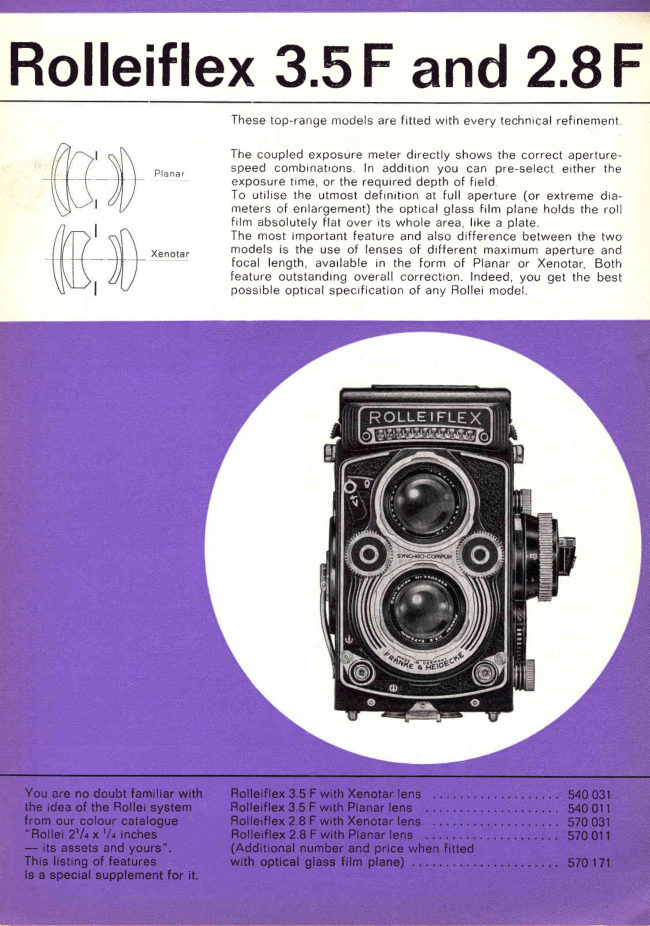

Rolleiflex 3.5F and 2.8F

These top-range models are fitted with ev

ry technical refinement

I The coupled exposure meter directly shows the correct aperture
speed combinations. In addition you can pre-select either the

exposure time, or the required depth of field

To utilise the utmost definition at full aperture

meters of enlargement) the optical glass film pl

F extreme dia.
holds the roll

film ebsolstely lat over its whole aree, ike a plate
Wy! of The most important feature and also difference between the two
[VP_NV\ xenour models is the use of tenseo of different maximum aperture and
j} focal length, available in the form of Planar or Xenotar. Bath
J feature outstanding overall correction. Indeed, you get the best
rey possible optical specification of any Rollei model.
You are no doubt familiar with Rolleiflex 2.5 F with Xenotar lens vevesess $4031
the idea of the Rolle system Rolleiflex 38 F with Planer lens EI goon
from our colour catalogue” ‘Rolleiflex 2.8 F with Xenotar lens |... 570031
‘Rollei 2'/4 x '/s inches. Rolleiflex 2.8 F with Planar lens ..... nine 570011
its assets and yours” (Aaditionsl number and price when fitted
Thi listing of features with optical glass film plane) . 570171

Is a special supplement for it.

Lenses:

Finder

Exposure Meter:

Shutter:

Focusing:

Film Transport
Picture Sizes:
Dimensions and Weight:

Special Accessories:

Choice of Carl Zeiss Planar or Schneider Xenotar units

For the Rolleifiex 3.5 F: 75 mm. £/3.5 taking lens of 6 or 5 elements.
Angle of view 56°. Heidosmat 75mm. #/2.8 finder lens. Size li
bayonet mount for accessories.

For the Rolleiflex 2.8 F: 80 mm. f/2.8 taking lens of 5 elements
Angle of view 53°. Heidosmat 80mm. £/28 finder lens. Size Ili
bayonet mount for accessories

Interchangeable folding hood with 2'/2x magnifier lens. Built-in
frame finder with 4x focusing magnifier. Ruled focusing screen,
Automatic parallax compensation for 2'/4x2"/ inches (6x 6.cm.)
and 24 x 36 mm. pictures

Built-in single-range exposure meter (Fig. 1) coupled with shutter
speed and aperture (depth of field) settings. Shutter speed and
aperture can be selected independently by the setting wheels.
Settings visible in a common peep window (Fig. 2). Automatic
filter factor setting up to EV — 3 (Fig. 3).

Synchro-Compur MXV, X- and M-synchronized for flash. Self-timer
with approximately 10 seconds delay. Shutter speed range from
1 to '/s00 second, also shows time exposure from 2 to 60 seconds
Aperture range from #/28 (or £/3.5) to 1/22; coupled with depth
of field indicator. Film transport crank coupled with rapid
tensioning mechanism of shutter. Double exposure and blank
frame lock, can be disengaged. Body release with safety lock and
‘cable release socket, can also be locked for long time exposures.
Focusing knob with film type indicator. Unaided focusing range
from infinity to 3'/2 feet (1 metre). Zone band of automatic depth
Of field indicator coupled with aperture setting (Fig. 1).

Film transport crank. Film feeler mechanism automatically locates
the first exposure. Automatic exposure counter.

21x 21/4 inches (6 x6 cm.) on size 120 roll film. Also 24 x 36 mm.
‘on 35 mm. miniature film with the Rolleikin outfit.

Height: 6 inches (148 cm). Width: 4'/2 inches (11.2 cm)
Depth: 4" inches (10.5 cm.). Weight: 43 ounces (1220 grams)
Ever-ready case with compartment for glass film plane and
removable front. Optical glass film plane. Spare glass plate.
Rolleikin outfit.

Rollei-Werke
Franke & Heidecke
Braunschweig
Germany

‘Your photo dealer will be glad to show you the Rolleifiex3.5F and2.6F.

E 1269 + G BI - Printed in Germany + Layout: E. Griessel » Text: D. Asemue
