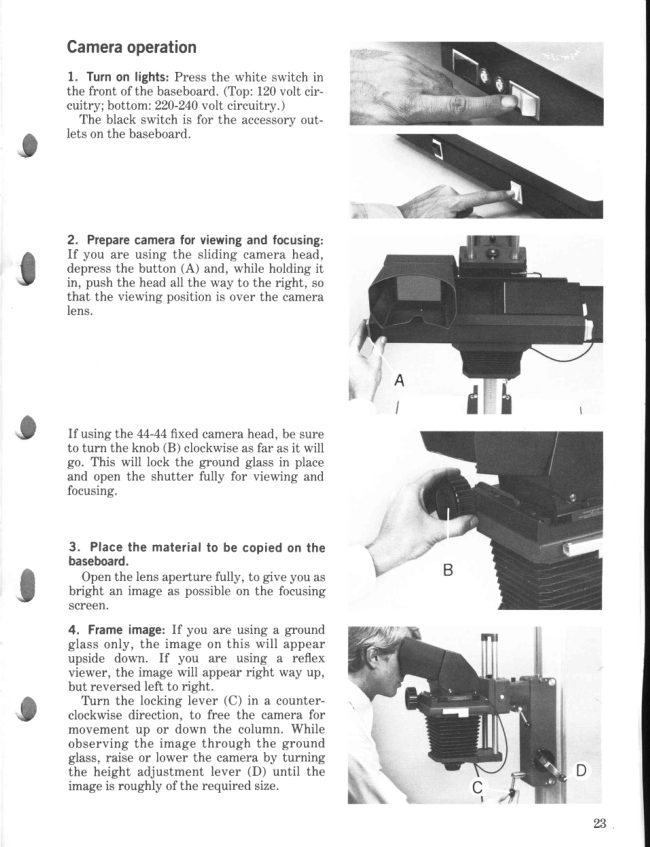

Camera operation

1. Turn on lights: Press the white switch in
the front of the baseboard. (Top: 120 volt cir-
cuitry; bottom: 220-240 volt

‘The black switch is for the a
lets on the baseboard.

2. Prepare camera for viewing and focusi

iB
If you are using the sliding camera head,
depress the button (A) and, while holding it
in, push the head all the way to the right, so
that the viewing position is over the camera
lens.

If using the 44-44 fixed camera head, be sure
to turn the knob (B) clockwise as far as it will
go. This will lock the ground glass in place
and open the shutter fully for viewing and
focusing.

3. Place the material to be copied on the
baseboard.

Open the lens aperture fully, to give you as,
bright an image as possible on the focusing
sereen.

4. Frame image: If you are using a ground
glass only, the image on this will appear
upside down. If you are using a reflex
viewer, the image will appear right way up,
but reversed left to right.

Turn the locking lever (C) in a counter-
clockwise direction, to free the camera for
movement up or down the column. While
observing the image through the ground
glass, raise or lower the camera by turning
the height adjustment lever (D) until the
image is roughly of the required size.
