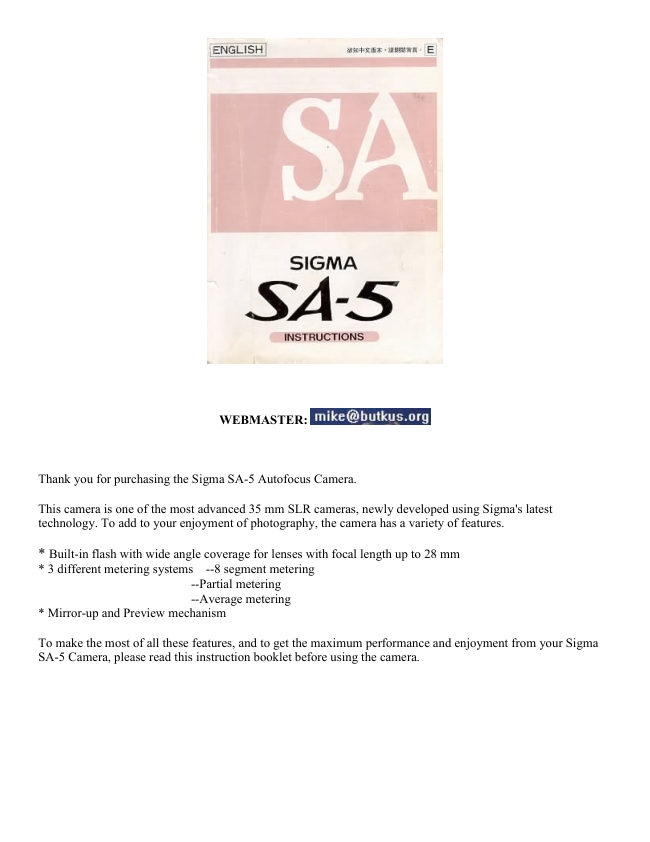

Thank you for purchasing the Sigma SA-5 Autofocus Camera.
This camera is one of the most advanced 35 mm SLR cameras, newly developed using Sigma's latest
technology. To add to your enjoyment of photography, the camera has a variety of features.
* Built-in flash with wide angle coverage for lenses with focal length up to 28 mm
* 3 different metering systems --8 segment metering
--Partial metering
--Average metering
* Mirror-up and Preview mechanism
To make the most of all these features, and to get the maximum performance and enjoyment from your Sigma
SA-5 Camera, please read this instruction booklet before using the camera.View original page 2Page 3 · Read text
INDEX
CAUTION .. .... :
DESCRIPTION OF PARTS . .
ADVANCED FUNCTIONSLCD PANEL INDICATION
.............
LCD PANEL ILLUMINATION
SELECTING THE AF MODE
....................VIEWFINDER INDICATION ...........
SELECTING THE EXPOSUREMODE DIAL
MODE ..
BASIC OPERATION .................
P PROGRAM AE PROGRAM
SHIFT .PREPARATION
S SHUTTER SPEED PRIORITY
ATTACHING THE CARRY STRAP . AE ...............
HOW TO USE THE FINDER CAP A APERTURE PRIORITY AE
INSERTING THE BATTERY M MANUAL OPERATION
CHECKING THE BATTERY BULB SETTING
MOUNTING AND REMOVING THE LENS SELECTING THE METERING
HOLDING THE CAMERA AE LOCK...
SHUTTER BUTTON AUTO BRACKETING ...
INSERT THE FILM EXPOSURE COMPENSATION
SETTING THE FILM SPEED MANUALLY BUILT-IN FLASH
PRINTING DATE AND TIME ... MIRROR UP
BASIC OPERATION ... OPTIONAL ACCESSORIES
TAKING A PICTURE BY * MODE .. REMOTE CONTROLLER RS-11
AND RS-21
REWIND THE FILM ..................
EXTERNAL FLASH EF-43
UNSUITABLE SUBJECT FOR AUTOFOCUS
...... PHOTOGRAPHY TIPS ....View original page 3Page 4 · Read text
FOCUS LOCK .... SNAPSHOT PHOTOGRAPHY
FOCUS MANUALLY ...... SCENERY
USING THE BUILT-IN FLASH ... PORTRAIT
RED-EYE REDUCTION .... MOVING SUBJECT
PRECAUTIONS FOR USING THE BUILT-IN CLOSE-UP PHOTOGRAPHY.
FLASH .............
NIGHT SCENES
OPERATION OF DRIVE MODE
...................... WARNING INDICATIONS
CONTINUOUS SHOOTING DEPTH OF FIELD
SELF-TIMER ................... INFRARED PHOTOGRAPHY
REMOTE CONTROLLER MODE . REPLACING THE DATA BACK
BATTERY
FIXED AND SELECTABLE FUNCTION IN
THE " * " MODE ..... RESETTING THE
CALENDAR/CLOCK .
PRECAUTION DURING USE
SPECIFICATIONS
** Caution - Read this section before using the camera
* The built-in flash in this camera includes a high voltage circuit. To avoid electric shock or burns, do not
attempt to disassemble the camera. If the outside shell of the unit is broken or cracked, do not touch the
mechanism inside.
* Do not use this camera with any external flash unit other than the Sigma EF-430, which has special contact
pins on the hot shoe. This flash is offered as an optional accessory. Other external flash units may damage the
camera's circuitry or may not work properly.
* This camera is not waterproof. When using the camera in the rain on near water, keep it from getting wet. It is
often impractical to repair internal electrical components damaged by water.
* To avoid any chance of lithium battery explosion, the battery pack should not be disassembled, recharged,
short-circuited or exposed to fire or water.
* As with any camera, it is best to check all functions and shoot a test roll of film before using the camera for a
wedding, a trip abroad, or for any irreplaceable photographs.
* Please carry a spare battery when you use the camera in a cold environment, in the field, on a trip, or when
taking many pictures at one time.View original page 4Page 5 · Read text
DESCRIPTION OF PARTS When you press the Exposure Compensation/Drive Mode Button and Flash Mode Metering Mode Button simultaneously, the LCD Panel will illuminate for about seconds.View original page 5
Page 6 · Read text
LCD AND VIEWFINDER INFORMATION
.
If you press both buttons simultaneously again, the illumination will disappear.View original page 6Page 7 · Read text
If you press any button or turn the dial while Illuminating the LCD, the illumination will continue for an
additional 6 seconds.
During the charging of the built in flash, the LCD will not Illuminate.
At very low temperatures you that due to the nature of the LCD it may take slightly longer to respond - this is
not a function problem, but a characteristic of LCDs.
BASIC OPERATION
1. Insert the battery
Insert the battery into the chamber, aligning
the + and - marks as indicated
2. Mount the lens
Align the red mark on the camera's mount
with the alignment dot on the lens. Engage the
lens in the mount by turning the lens
clockwise until it clicks into the locked
position.
3. Set the lens switch to the AF position.View original page 7Page 8 · Read text
4. Set the mode dial to the "*" position. Turn the mode dial while pressing the lock button. 5. Insert the film Insert the film and align the tip of the film with the Film Position Mark. Then close the back cover. 6. Align the subject in the AF frame 7. Press the shutter button ATTACHING THE CARRY STRAP 1. Undo the strap end. 2. Thread Finder cap on the strap. 3. Then attach the carry strap as shown.View original page 8
Page 9 · Read text
HOW TO USE THE FINDER CAP
When using the self-timer or remote control, please cover the finder eyepiece with the Finder Cap.
Remove the eye cap from the finder.
Insert the finder cap onto the finder.
INSERTING THE BATTERY
This camera uses a 6 V 2CR5 Lithium Battery. Without a battery, the camera will not function at all.
1. Be sure the mode
dial is on the lock
position. Then open
the battery
compartment by
pushing the latch in
the direction of the
arrow.
2. Insert the battery
into the chamber,
aligning the + and
the - marks as
indicated.View original page 9Page 10 · Read text
3. Close the battery
cover until it clicks
and locks closed.
CHECKING THE BATTERY
Turn the mode dial to the "*" position or one of the P. S. A or M positions while pressing the lock button. The
battery mark will appear on the LCD panel.
The battery strength is good.
The battery strength is weak. Keep a
spare battery or replace the battery in
advance.
If the mark blinks, the battery is very
low and the camera is not operable.
The battery mark remains visible while the camera is in use.
To conserve the battery, the camera will switch itself off after 6 seconds of not being operated. However,
it still is possible for the shutter to be released accidentally. If the mode dial is set on the "L" position,
the shutter cannot be fired.View original page 10Page 11 · Read text
MOUNTING AND REMOVING THE LENS. This camera uses the SA type bayonet mount. For ordinary lenses use the inside bayonet mount (type SA-IB) and for Super Telephoto lenses use the outside bayonet mount (type SA-OB). The mounting methods are same for both type of mounts. Remove the Camera's body cap and I lens mount cap. Align the red mark on the camera's mount with the alignment dot on the lens. Engage the lens in the mount by turning the lens clockwise until it clicks into the locked position. To ensure proper connection, please do not press the lens lock button while mounting the lens. To remove the lens, press the lens lock button and turn the lens counter-clockwise until it stops. Gently remove the lens from the mount. **On the mount surface of the lens, there are a number of electric contacts. Please keep them clean to ensure proper connection. To avoid damaging them, be sure to place the lens with its front end down when it is off the camera. HOLDING THE CAMERA Even the slightest movement of your body, while pressing the camera's shutter release, may cause camera shake and a resulting blurriness of your photograph. To avoid this we suggest the following: Hold the camera steady with your left hand supporting the bottom of the camera and the lens. Keep your leftView original page 11
Page 12 · Read text
elbow close to your body and place your eye as close to the viewfinder as possible. Firmly grasp the camera's
grip with your right hand and then lightly place your right index finger on
SHUTTER BUTTON
|
The shutter button of the SA-5 camera has two positions. When you press the shutter button "Halfway Down",
the camera's Autofocus and Exposure System activates. Then you press the button "All-the-way Down", and the
shutter will release to take a picture.
Before you start to take pictures, we recommend that you operate the camera without film to become familiar
with the "halfway down" position and other operations of the camera.
INSERT THE FILM
When you load and unload the film, please avoid the film or film cartridge from being struck by direct sunlight.
The SA 5 camera is compatible with the DX system. When you use a film with DX codes, the camera
automatically sets the correct speed of the film. If you happen to use a non-Ding film, please refer to none 17 to
set the film speed manually.
1. Turn the mode dial to the "*" position while pressing the lock button.
2. Push the Back Cover Latch down and open the Back Cover.
3. Place the film cartridge into the film chamber.View original page 12Page 13 · Read text
4. Push the cartridge in firmly, and align the tip of the film with the Film Position Mark.
5 Check to be sure that the film sprocket holes are properly engaged with the teeth of the film transport sprocket
wheel.
6. Close the back cover, pressing firmly so it is securely locked. The film will advance automatically to the first
frame and the LCD film counter will display the number "1". Also, the film speed set by DX system and
"ISO/DX" mark will be displayed on the LCD panel for about 6 seconds. Please check that the film speed is
correctly set.
7. If the film has not been loaded properly, "Err" and the film mark will blink on the LCD panel. Open the back
cover and re-load the film. The camera will not operate while the "Err" is displayed on the LCD.
If the mode dial is set to the "L" position, the camera will not advance the film. When you load the film,
be sure to set the mode dial to other then the "L" position.
You can check whether there is film in the camera and the type of film and number of exposures, by using the
film window on the back cover.
Before you first load any film: please removers
the protective sheet which is inserted on the
film chamber.
The shutter curtain is very delicate, "precision
components" - which moves at high speed. It
can be easily damaged by touching or pushing
it with your finger while loading film.
The pins in the film chamber read the DX film
cords. Please them the clean to insure proper
contact.View original page 13Page 14 · Read text
SETTING THE FILM SPEED MANUALLY When the camera automatically sets the speed of the film by DX codes, the LCD shows "DX" after the film Is loaded. If you use the film other than DX codes, set the film speed manually. 1. Insert the film. If the film is DX coded, I the LCD shows " DX " and its film speed, or if the film is non-DX- coded, the LCD shows "lSO 100" after the film is loaded. The film speed will automatically set itself to ISO 100 if you do not set the film speed manually. 2. Set the mode dial to AF ISO. 3. Turn the A-dial to set the desired film speed. When you set the film speed manually, the DX will disappear on the LCD panel even if you use the DX coded film. 4. Turn the mode dial to the desired exposure mode. You can check the current film speed setting when you set the mode dial to the " AF ISO " position. When you load a new film cartridge, the previous film speed setting will be released and reset to ISO 100 or the DX speed for the new cartridge. PRINTING THE DATE AND TIME You can select from 5 types of data by pressing the "MODE" button.View original page 14
Page 15 · Read text
The data that appears in the Data Back LCD will
be imprinted on the picture unless the MODE is
set to OFF.
The word "PRINT" is not part of the data and will
not imprint on the picture.
The data may be somewhat less distinct when
backgrounds are red, orange or yellow, or when
the subject is very bright.
Depending on the film speed and temperature,
legibility of the printed data may vary.
If the Data Back LCD becomes light and difficult
to read, please replace the battery in the data back.
The SA-5 camera has many features. This part describes the basic camera operation using Full Automatic Mode
"*" and the functions you can use in this mode.
TAKING A PICTURE BY THE * MODE
The "*" mode is full automatic operation mode. The camera will automatically control the focus, the exposure
and the film advance.
1. Set the mode dial to the "*" position while
pressing the lock button.View original page 15Page 16 · Read text
2. Set the lens switch to the AF position. To avoid damaging the AF mechanism, please do not turn the focus ring manually while in the AF mode. 3. Align the subject In the AF frame 4. When you press the shutter button "Half- way", the camera will focus automatically, and the shutter speed and aperture speed are displayed in the viewfinder and on the LCD panel. 5. Then you press the shutter button "All-the- Way", the camera releases the shutter and automatically advances the film. 6. To conserve battery power, set the mode dial to the "L" position when you are not using the camera.View original page 16
Page 17 · Read text
7. The flash mark blinks in the viewfinder to
warn of a slow shutter. When this occurs use
tripod or flash.
The AF Auxiliary Light will turn on automatically as you focus on a dark area. Effective distance is up to about
4 m.
To conserve the battery, the camera will switch itself off after 6 seconds of not being operated. However,
it still is possible for the shutter to be released accidentally. If the mode dial is set on the "L" position,
the shutter cannot be fired.
REWIND THE FILM
1. If you use DX coded film with 12, 20, 1 24 or
36 exposures, the number in the film counter
will blink when the remaining frames becomes
less than 3.
2. After the last frame has been exposed, L the
camera will automatically rewind the film. After
the film is completely rewound, "End" will
appear in the LCD. Open the back cover and
remove the film cartridge after the "End" mark
appears.
.View original page 17Page 18 · Read text
3. If you want to rewind the film before the last
frame, you can do so by pushing the rewind
button located at the bottom of the camera.
While the film is rewinding, the counter counts backwards.
PRECAUTIONS
If you open the back cover before the film is completely rewound, the light falling on the film will destroy your
pictures. Do not open the back cover until the "End" appears on the LCD panel. If you open the back cover
accidentally, on rare occasions the camera will become inoperable, LCD panel shows "Err" and the film mark
blinks. If this occurs, rewind the film by pressing the rewind button.
If the rewind motor stops while rewinding the film due to low battery power, do not open the back cover.
Replace the battery and press the rewind button. You should open the back cover only after "End" appears on
the LCD panel.
This camera reads the film's number of exposures from the DX code and will I rewind the film automatically
after the last frame is exposed. However, if you use the film with a length other than 12, 20, 24 and 36 (such as
10 or 18 exposures) or non-DX codes film, you may take extra frames but they may not be developed or printed
by the laboratory.
UNSUITABLE SUBJECT FOR AUTOFOCUS
The autofocus mechanism is a high precision instrument and very useful. However, it is not perfect. Some
types of subjects may "fool" the autofocus mechanism. This can happen if the subject Is similar to the
following examples. In these cased, use "focus lock" (next page) or focus manually.View original page 18Page 20 · Read text
FOCUS LOCK
Occasionally when the main subject does not fall within the focus frame in the viewfinder, or the subject is
unsuitable for the autofocus system, you can lock the focus distance temporarily.
1. If the subject isn't in the focus
frame when you compose the
picture, the camera will focus
on the background.
2. Move the camera so the focus
frame is L around the subject
and press the shutter button
"Half-way". Be careful not to
press "All-the-way".
3. When the focus indicator
lights, the focus is locked. Hold
the shutter button "Half-way"
while you compose the picture
the way you want it. Then press
the shutter button the rest of the
way to take the picture. If you
remove your finger from the
shutter button, the focus lock is
cleared. You can refocus the
focus lock any number of times.View original page 20Page 21 · Read text
FOCUS MANUALLY
If the subject is unsuitable for use with the autofocus system and hard to use with the focus lock, you can focus
manually.
1. Set the lens switch to the MF
position. (switch is located on lens by lens
mount)
2. While looking through the finder, turn the
focusing ring on the lens until you get a clear
sharp image.
3. When you use a lens with its maximum F-
number wider (smaller number) than F5.6, press
the shutter button "Halfway" while focusing.
The focus indicator will light when perfect focus
is attained.View original page 21Page 22 · Read text
USING THE BUILT-IN FLASH
When you press the shutter button "Half-way", and the flash indicator in the viewfinder blinks, the camera has
determined that the shutter speed will be very slow or the subject is strongly back light. In this case, we
recommend that you use flash.
1. Press the Flash Pop-up Button. I The built-in
flash will pop-up and will indicate on
the LCD panel.
2. After the flash is fully charged, the flash
indicator in the viewfinder will change from
blinking to steadily lit and the shutter speed will
automatically be set to 1/125.
3. Press the shutter button to take a picture.
If the flash is not fully charged, (while the flash
indicator is blinking) the shutter will not be
released.
4. After you finish using the flash, close the
flash by pressing the top part of the flash as
shown in the illustration.
When you use the flash continuously, the grip of the camera will become warm. This is normal and not a
defect.View original page 22From the M. Butkus archive. Original publisher and archive notices are retained.
Check the model and edition against your equipment.
PDF verified 2026-10-10.
