Soligor Reflex User manual

I N S T R U C T I O N S
         tr      soLtGoR-REFLEX


  Here ore the "SOLIGOR-REFLEX"'s feotures:-
      Toking Lens:  Cooted F:3.5 Soligor Anostigmat F:80mm.
      Viewing  Lens: Cooted  F:3.5 Soligor Anostigmot F:80mm.
      Shutter:       Short  cocking.  Body  Releose B  1/5,  1/1O, 1f25,
               1150, 1/1O0,1/300.
        Buillt- in flosh synchroniser. F-X synchronizotion.
      Speci<rl ground gloss ond sport Finder.
E       HOW  TO  USE        _,__

  LOADING FILM:

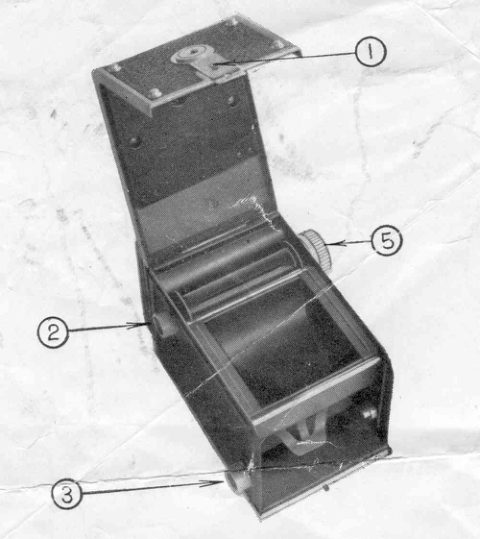

            l.  Open  bock cover  of comero  lifting  slightly cofch  (l).
                                                                                                                                                             i.
       2.   Pull out  upper  film  winding  knob  (21 ond  insert empty  spool.
           Let knob spring bqck  into ploce.
       3.   Pull out lower winding knob  (3), ond  insert o  fresh  roll of  ftlm.
  \         Ler knob spring bock  into ploce.
       4.   Pull end  of  film out ond  put through slo? of empty.spool  os for
          os  it  will go. Wind  knob  (5) one complete  turn.
       5.  Close bock of comero.
       6.  Open window  (4).  Turn lorge  film  winding  knob  (5)  unril Film
          No. 1 oppeors  in red window. Close the window.
  TAKING T'ICTURES:                                                                                                                                                                                                                                                                           i:.dr-dal
            l.  Re,move lens cover.
        2.  Open  top  (6) of comero  by releosing cotch.  Roise Mognifier  (Z)
                                                                                                                                                                                         'i
          by  pressing hinge with index  finger.
        3.   Select correct speed, ond  set by  turning knurled  ring  (8)  until
           desired speed  figure meets orrow.
        4.   Select operture opening  with slide  (9).  Cock  shutter by  pulling
           lever (,|0) upword.
        5.  Focus occurotely on obiect which is to be  the center of  interest
                                                                                                                                                                    f          by turning knurled lever (11) on lens. Lower Mognifier  (Z). Check
           pieture outlines in ground gloss viewer.  The depth  of  field  (12)
           indicqtes the neoresf ond  furfhest distonce your  piocture  will be
             in shorp focus, depending on operture.
        6.  Hold your comerq steody ond push the bufton (13) gently when
           toring  picture.
        7'  Raploce  lens cover.
       B.  Open window  (4) ond wind film until Fig. 2 oppeors.  Moke  o,               ,
            hcbit  of  this step ond you  will ovoid double exposures.
        9.     lf you ore  not going  to toke  onother  picture  immediotely  ihen
          cover your  lens.                                             ..,                                                                                      r
      10.  F - X  type  synchtonizotion.   You con  toke  pictures indoors  of             ../
            nighf, or  in iork  ploces by  using the flosh socket (14).  With M
           T",,pe floshlomps vse 1/25  sec.  With  F type  floshlomps use up
            ro l/50   sec.
      I  1 l.  You con toke your own  picture  by  using self-timer  oltqched  to
            c,rble releose socket (15).
