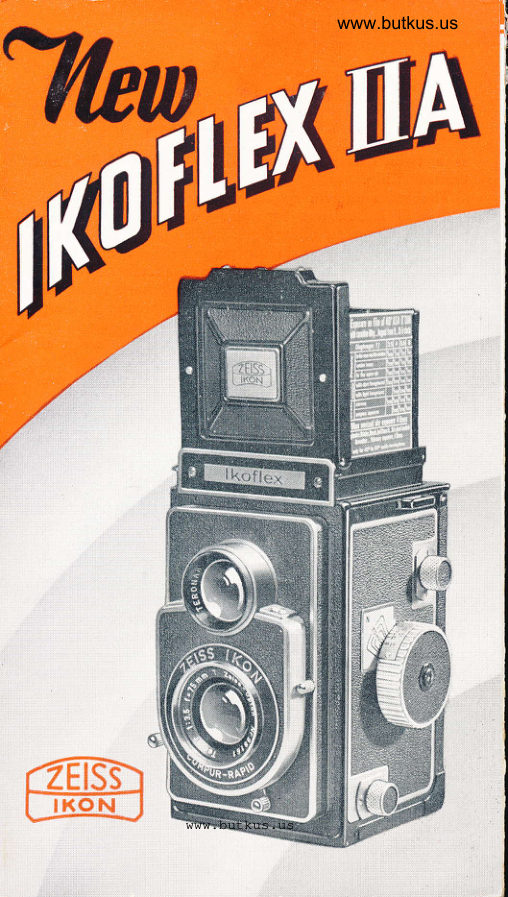

Zeiss Ikon Ikoflex IIa - Short User manual

tKoFtEx lt-A
 is a twin lens reflex cameta of superior design and
 craftsmanship.
  The teflex camera system with two matched and co-                                'and ordinated lenses, one fot taking     anothet one for
 viewing, has great advantages. Before, and even during,
 the exposure you see on the' ground glass a true image
 of the photograph which you intend to take. No more
 guessing of distance in order to have sharp focus, be-
 cause you can cleady see whether the picture is sharp.
No doubt as to whether you have the proper angle and
 the desired framing of the scene, because you see it all
on the focusing scfeen.
  With the Ikoflex camera you preview and control your
 picture.
   Ikoflex II-A takes 12 pictures zVa x 214" on L2o or 82
 roll film, a good size for the album and enlarging.

        BRIIIIANT FOCUSING IAAAGE
 Snap up the focusing hood and look at the focusing
 screen. A surprise awaits you! You see the brightest
image ever achieved on a reflex screen   evenly  il- luminated to the very corners ! This marvelous-   brilliance
 is due to the EXTRABRITE screen. Image is true in color,
 right side up and in full zYa x 2V4" size-the same size
as the negative you intend to make. You see clearly
what you are going to get in the photograph-and the
added brilliance of the image enables you to judge tone
 values, shadow efrects and color more accurately than
 ever. For focusing with critical sharpness, there is a
 magnifier folded in the hood which enlarges the image
on the ground glass 4 times.
  The taking lens is a coated Zeiss Tessar L/3.5, mounted
in a Compur Rapid shutter permitting exposures at B and
1 to 1"/500 sec. The shutter has internal flash synchroni-
 zation. See reverse side.
The Zeiss Tessqr hos superior color correclion
ond definition-the world's outstonding lens

SO EASY TO OPERATE
You'll be impressed with the clever way in which all
controls have been placed within easy reach of your
finger-tips. The release of the shutter, either by hand
or cable, is on the top edge of the camera body. Next to
it, is a red signal which assures you that you have
advanced the film after the previous exposure. An auto-
matic lock prevents accidental double exposures and
blanks. $fhen you look down at the image screen, your
eyes take in two little windows with scales, located on
the sides of the viewing lens. One scale shows the dia-
phragm setting, the othei scale the shutter speed.
  The Ikoflex II-A has a sturdy light-weight metal body.
It is covered with black leather and handsomely trimmed
with chronre. It measures only 33/ax3t/ex5y2" and weighs
but 38 oz.-so light and compact, you'll find it an agree-
able companion, even on long and strenuous hiking trips.



                                   FINGER.TIP RETEASE
                             The finger-tip release of the
                                    shutter is located on top
                                edge of the camera, within
                                  easy reach of your thumb
                           as you hold the camera.
                                     (See Page 11.) Aside of the
                                        fingertip release is a red
                                  signal showing that you
                                 have advanced the film  af.-
                                    ter the previous exposure.
 www.butkus.kus

            BRIGHTEST IMAGE
World-famous Zeiss Tessar f13.5 lens (coated)
Compur Rapid Shutter with flash s)'nchroniz tion

Venmo @mike-butkus-camera  Ph. 2083
PayPal Name  Lynn@butkus.org      www.PayPal.me/lynnbutkus

Showing the operation
                     of the focusing wheel
                on the right side of
                       the Ikoflex II-A. Next
                     to the focusing wheel
                          is the depth of focus
                      scale. Engraved on
                   the hood is an ex-
                   posure table.





back permits quick, easy loading
with any roll-film camera.





                  Compur Rapid Shutter
                        of the Ikoflex II-A has
                        internal flash synchro-
                      nization. Flash cable
                     connects in socket on
                        side of carlreta,

www.butkus.us





      Zeebs-Won
            IKOFLEX II.A
  The dimensions of the closed camera are 33/a x
    37/s x 5yr", and the weight is but 38 ounces. It is
   easy to carry wherever you go.
