one's photographic outtit. Any adjustments which might
then be found desirable can easily be made by mak
ng an appropriate alteration to the film speed setting
for future use.

In addition to your photographic dealer, the photogra:
phic advisory department of ZEISS IKON-VOIGTLANOER,
7 Stuttgart, Postfach 540, W. Germany, will gladly pro:
vide you with advice and information on all photogra
phic matters

We reserve the right to make alterations in the interest of
technical progress.

jenaligeh] GA/212002 Printed in Germany 5 0266/41
Author: Prof. Or. J. StUper

w| | an a Ped

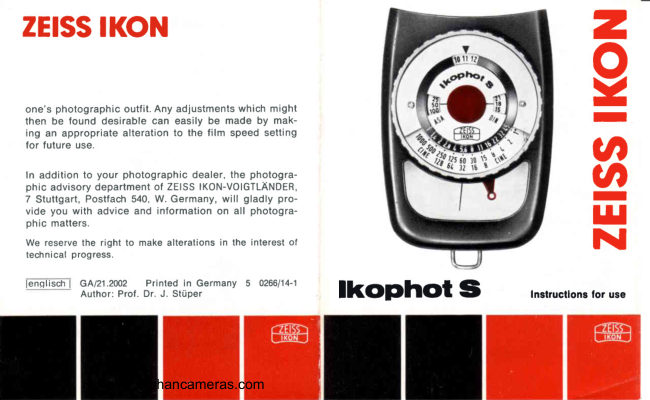

Instructions for use

Operation of the IKOPHOT S

Setting the film speed
‘Adjust the film speed scales 7 (ASA) or 11 (DIN) by
turning the setting buttons 6 to bring the film speed
indicated on the film package or in its instruction sheet

into the exact centre of the little window. (See diag. 1)
It the exact speed required is not included on the
scale then an appropriate intermediate setting should
be used.

The Instrument

diag.2

Milled ring for operation of the matching-needle
Aperture scale

Meter needle

Matching-needie

Shutter speed scale, and frame indicator for movie
Film speed setting buttons

{ASA film speed scalo

Exposure value scale

Meter cell window

Exposure value setting indicator

DIN film speed scale
