Chinon CM-5 User manual

(CM means Chinon Manual)

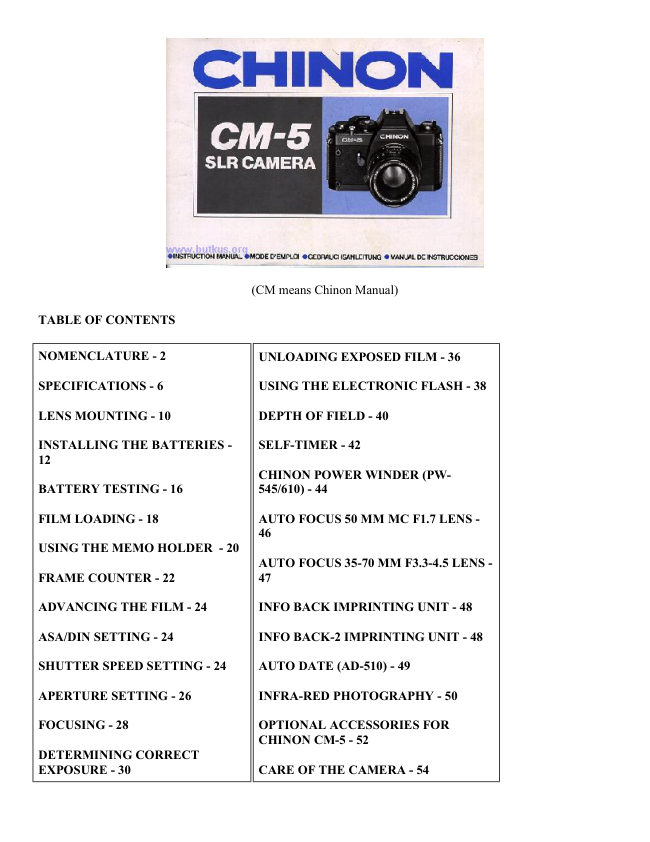

TABLE OF CONTENTS


NOMENCLATURE - 2           UNLOADING EXPOSED FILM - 36

SPECIFICATIONS - 6            USING THE ELECTRONIC FLASH - 38

LENS MOUNTING - 10          DEPTH OF FIELD - 40

INSTALLING THE BATTERIES -   SELF-TIMER - 42
12
                         CHINON POWER WINDER (PW-
BATTERY TESTING - 16             545/610) - 44

FILM LOADING - 18           AUTO FOCUS 50 MM MC F1.7 LENS -
                                   46
USING THE MEMO HOLDER  - 20
                        AUTO FOCUS 35-70 MM F3.3-4.5 LENS -
FRAME COUNTER - 22             47

ADVANCING THE FILM - 24      INFO BACK IMPRINTING UNIT - 48

ASA/DIN SETTING - 24           INFO BACK-2 IMPRINTING UNIT - 48

SHUTTER SPEED SETTING - 24   AUTO DATE (AD-510) - 49

APERTURE SETTING - 26        INFRA-RED PHOTOGRAPHY - 50

FOCUSING - 28               OPTIONAL ACCESSORIES FOR
                         CHINON CM-5 - 52
DETERMINING CORRECT
EXPOSURE - 30              CARE OF THE CAMERA - 54

Viewfinder: Fixed eye-level pentaprism, central split image with microprism collar and ground glass.

Viewfinder Magnification: 0.87 x (@ 50 mm, infinity).

Viewfinder Visibility: 92%.

Exposure Meter: TTL, Center weighted full aperture system employing one silicon blue photo cell,
3 steps exposure indicator with 3 LEDs.

Exposure Range: EV + 2 (F/1.9,1 sec.) to EV + 18 (F/16, 1/1000 sec.)—ASA100 F/1.9 lens.

Meter ON/OFF Switch: Meter switch is activated when shutter release button is pressed, meter remains on for
several seconds after finger is lifted off release button.

ASA Range: 25 - 1600 (DIN 15 - 33) with safety lock.

Film Advance: Single stroke in an arc of 130° with 25° stand off.

Aim Counter: Automatically indicates number of exposures and resets to "S" when camera back is
opened.

Film Rewind: Folding crank type.

Accessory Shoe: Hot Shoe type with X sync.

Self-Timer: Built-in.

Synchronization: Strobe Sync. at 1/60 sec.

Power Winder Contacts: Power winder electronic contacts are built in for a single frame picture
advance.

Power Source: Two 1.5 V Alkaline batteries (LR44 A76) or two 1.5 V silver oxide batteries
(SR44, S76, G-13).

Battery Test: Built-in with LED indicator.

Accessories: Multi-coated lenses, Auto electronic flashes, carrying case, and many more.

Body Dimensions: 135.5 (W) x 86.0 (H) x 50.5 (D) mm. (5.33" x 3.78~ x 1.99~)

Body Weight: 455 grams (16.05 oz).

LENS MOUNTING





Your CHINON CM-5 is equipped with a CHINON bayonet mount which accepts all interchangeable lenses
with the K-bayonet mount. To attach the lens, match the red dot on the camera body with the red dot on the lens
(Fig. 1). Then insert the lens into the camera body and turn it clockwise until the lens locks with a click. To
remove the lens from the camera body, depress and hold the lens lock release lever on the camera body, turn the
lens counterclockwise as far as it will go, and lift it up from the Body (Fig. 2).

INSTALLING THE BATTERIES





        1. By using a coin, unlock the battery chamber cover by turning it counterclockwise (Fig. 3). 2. Place
      two 1.5 V Alkaline batteries (LR44, A76) or two 1.5 V silver oxide batteries (SR44, S76, G13) with the
      minus (-) side touching the battery cap (Fig. 4) 3. Replace the battery chamber cover by turning fully
       clockwise (Fig. 5). NOTE: Clean the batteries with a dry cloth or paper before inserting and thereafter at
       regular intervals. Make sure that the batteries are inserted correctly, i.e., check polarity. The shutter will
       operate only when batteries are correctly installed and not exhausted.

Body Grip (Spare battery storage compartment)





You can attach an optional body grip to your CM-5 camera (Fig. 6). To do so, attach the body grip to
corresponding body grip setting holes on the camera and tighten the screw on the bottom of the body grip by
turning it clockwise. The body grip has a convenient battery storage compartment in which you may store one
set (2 pcs.) of spare batteries. To remove the batteries from the compartment, pull on the battery holding lever
(Fig. 7).



BATTERY TESTING





Test the batteries when; — a new battery is installed — the camera has not been used for a long period of time
— the camera is being used continuously for many hours. To test the batteries, press the shutter release button
slightly. If the batteries are in good condition, one of three LED's located at the left side of the viewfinder frame
will illuminate (Fig. 8). If a LED fails to illuminate, the batteries are too weak and need to be replaced, they are
incorrectly inserted, or the speed selector is set to "B" position.

FILM LOADING





Your Chinon CM-5 camera can be used with any kind of 35 mm film.

        1. Pull up the film rewind knob until the camera back pops open (Fig.9).

        2. Then, insert a film cartridge into the film chamber with the protruding end facing the bottom of the
      camera (Fig. 10).

        3. Push in the film rewind knob and slightly turn the knob in either direction until it catches the film
        cartridge spool.

        4. Insert the trimmed end of the film into a slot of the multi-slotted take-up spool.

        5. Turn the shutter speed selector to any setting and advance the film while holding the film lightly
     down on to the transport.





        6. Release the shutter if necessary and advance the film until the sprockets engage with the upper and
       lower perforations of the film (Fig. 11).
        7. Close the camera back firmly until it locks with a click.





        8. Turn the film rewind knob gently until the film slack is taken up and the rewind knob stops turning
        freely.

9. Do not force or further rewind the film.

       10. Advance the film and release the shutter three times (Fig. 12).
      The rewind knob should rotate counterclockwise when the film is advanced and the "1" marking should
       appear in the frame counter window (Fig. 13).

USING THE MEMO HOLDER





The Chinon CM-5 compact SLR camera has a built-in memo holder feature. To utilize the memo holder feature,
simply cut off the top of the film box and insert it into the memo holder located on the back cover of your
camera. This will enable you to quickly and easily identify the type of film and ASA speed used in the camera.
Your calling card can also be inserted in the memo holder (Fig. 1 4).



FRAME COUNTER





Your Chinon CM-5 is equipped with a frame counter which displays the number of exposures made and resets
automatically upon opening the camera back. When the camera back is opened the counter shows "S" indicating
the start of the picture taking process. When a film is loaded according to the procedure previously described,
the counter displays "1 " indicating that the camera is ready for the first exposure Every time the film advance
lever is turned the counter will proceed one stop forward. The number 24 and 36 are colored in orange to warn
the end of commonly available films (Fig. 1 5).



ADVANCING THE FILM

Make sure the film has been loaded properly. Operate the film advance lever through a full stroke. When the
film end is reached the film advance lever may stop before the lever is fully turned. Do not force the lever. Stop
winding at once and rewind the film. Refer to "Unloading Exposed Film".

ASA/DIN SETTING





The ASA/DIN speed of the film is specified on the box or in the instruction sheet packed with the film. Set the
ASA/DIN speed by lining UP and rotating the shutter speed dial to be appeared in the film speed window. Be
sure to check the ASA number whenever you put new film into the camera (Fig. 16).

SHUTTER SPEED SETTING

Rotate the shutter speed dial to the left or right to select a suitable shutter speed from the band of "B", 1 to
1/1000 sec.
(Fig. 17).



APERTURE SETTING





The aperture is set in the usual way by rotating the lens diaphragm ring until the desired F stop is set against the
green index mark on the lens barrel. For further explanation see "Determining Correct Exposure" (Fig. 18 &
19).

F stop Selection: The following may be used as a guide to determine the lens F stop when you are using the
camera;

· Sunny day outside: F/8 - F/16

· Cloudy day outside: F/4 - F/5.6

· Inside (without flash): F/1.9—F/2.8



FOCUSING





Your Chinon CM-5 has three built-in focusing aids. The center of the viewfinder is the split image with
microprism collar which is surrounded by ground glass. When the camera is in focus, the image of these
focusing aids become sharpest. While observing the subject through the viewfinder, turn the lens focus ring
until the upper and lower split-image match up to form a uniform image (Fig. 20). This split image focusing is
particularly helpful when the subject is dominated by vertical lines. The microprism is also helpful. When it is
out of focus, the image on the microprism will be composed of collection of asterisks (Fig. 21). These sparkling
asterisks will disappear when the focus is properly set. You can double check the focus setting by the image on
the ground glass. You can also focus indirectly. Actually measure or estimate the distance to the subject and set
the lens focus ring to the appropriate setting (Fig. 22).





DETERMINING CORRECT EXPOSURE

Your Chinon CM-5 camera has a Through The Lens (TTL) exposure metering system. Also called an open
aperture measuring system. determine the correct exposure, To operate the film advance lever, observing the
subject through the viewfinder in the center of microprism area.

Depress the shutter release button until the exposure indicator lamp (LED) located on the left side of the
viewfinder frame illuminates (Fig. 23). Should the green lamp (LED) not illuminate, you must turn either the
shutter speed dial or the lens aperture ring until the green lamp illuminates. By doing so, you will be assured of
a correct exposure.





* The Exposure Indicator: Your Chinon CM-5 camera has three exposure indicator lamps (LED) located
at the left side of the viewfinder frame. These three lamps control the condition of exposure of the
camera. The conditions of exposure can be confirmed in the following three ways;





RED GREEN RED

A: Over Exposure

B: Correct Exposure

C: Under Exposure

When rotating the shutter speed dial or the lens aperture ring, you must operate them slowly since the exposure
indicator lamps are very sensitive. Generally you should select a shutter speed first then operate the lens
aperture ring until the proper exposure is obtained. A tripod should be used for shutters speed longer than 1/30
sec.

NOTE: The exposure indicator lamp does not illuminate when the shutter speed dial is set at "B" position. The
meter switch is activated when the shutter release button is pressed and the meter remains on for several
seconds after your finger is lifted off the release button.

UNLOADING EXPOSED FILM





When the film in the camera is fully exposed, the film advance lever will stop. Do not attempt to force the lever
any further. Rewind the film and replace with a new film. Push in the rewind button at the bottom of the camera
(Fig. 24). Unfold the rewind crank of the rewind knob and turn the rewind crank clockwise (Fig. 25). You will
feel friction as the film is rewound. Suddenly, when the film is rewound completely, the friction decrease and
the rewind crank will turn with ease. Pull up the rewind knob to open the camera back (Fig. 26). When the
camera back is opened, the frame counter will automatically reset to the "S" position. The rewind button on the
bottom of the camera will pop out upon the next advancement of the film advance lever. Your exposed film
should be processed without delay.





USING THE ELECTRONIC FLASH

It is advisable to use a flash when the exposure indicators detect that the light level is too low, such as indoors,
at night time, or in daylight when the subject is too dark to provide adequate exposure. Electronic flash units as
well as conventional flash units using flash bulbs may be utilized. Your CM-5 has a hot shoe (Accessory shoe
with built-in flash contact) for "X" synchronization (Fig. 27). Electronic flash units having a foot with built-in
contact may be used without connection cord. As the hot shoe has "X" type synchronization it can be used with
electronic flash at 1/60 sec. or at slower shutter speeds (Fig. 28.) The lens aperture is determined by the
calculation table indicated on the flash unit. Specially designed and developed automatic flash units are
available for your Chinon CM-5 as optional accessories. This highly advanced electronic flash system permits
carefree flash photography for you.



DEPTH OF FIELD

Depth of field designates the nearest and furthest limits of the area that will be sharp in the picture in front of
and beyond the subject. Depth of field is controlled by the f/stop. The larger the lens opening, the shallower is
the depth of field. The smaller the lens opening, the grease, the depth of field becomes (Fig. 29 & 30).





Depth of Field Scale: The depth of field scale indicates (after focusing) the approximate area that will be sharp
in the picture. Locate on the depth of field scale the corresponding pair of f/stop figures. The distance between
these two f/ stop figures on the focusing ring will be the area of sharpness in your picture (Fig. 31).

SELF-TIMER





The self-timer when set, trips the shutter mechanism after a delay of 7 - 12 seconds. This feature is useful
should the photographer wish to be included in the picture, and is also useful for taking pictures at slow shutter
speeds when a cable release is not available. When using the self-timer, the camera must be mounted on a
tripod, or a solid support of some kind. To operate, move the self-timer lever counterclockwise as far as it will
go. Advance the film transport lever. Upon pressing upward on the self-timer lever with your finger, the self-
timer mechanism will start to operate (Fig. 32). NOTE: Do not depress the shutter release button, since the self-
timer mechanism will not operate and the shutter will be released instantly. NOTE: Do not advance the film
advance lever while the self-timer is in operation, otherwise damage to the camera's internal mechanism
could occur.



POWER WINDER (PW-545/610)

When using CM-5 in conjunction with power winders 545 and 610, only the single frame advance will function
with both units. Furthermore, the power winders will only advance the film when the camera's shutter release is
depressed and released. The shutter release button on the power winder's built-in grip is nonfunctional when
used with CM-5. (Fig. 33). NOTE: 1. Caution should be used not to set the C/S dial in the "C" position. 2. Care
should be taken to avoid depressing the shutter release on the power winder grip when depressing the camera's
shutter release as the power winder will not advance the film when the button is kept depressed. 3. Do not
attempt to use the remote control socket when the power winder is used in conjunction with CM-5. 4. Do not
use the self-timer when the Power winder is in use.

Auto Focus 50MM MC F/1.7 Lens
Focuses even in total darkness. Stepless operation even from 1M to infinity. Aperture range from F 1.7 to F
22. Audible signal beeps when subject is in focus. [Mike: very impossible to find these AF lenses, works by
pressing side button unless you have the body with contacts to the lens.]
There is an IR light, so this can focus in rather dark areas.





Chinon 35-70mm Auto Focus F 3.3 - F 4.4 Zoom.  Operation same as 50mm AF lens. Built in power
on/off switch. When the subject is too close to AF (less then 1 meter) the camera will give a continuous audible
signal, stating manual focusing is required. [Mike: even more impossible to find. Pins on the lens couple to the
CG-5 and CE-5 camera body]

Chinon Infoback Imprinting Unit DB-010: Accessory data back features electronic input of up to 30
characters (alpha or numeric) of information onto your negative or slide, via a compact 36 button digital control
panel. Built in memory features will continuously imprint the same message or can change the information as
you like.





Chinon Info Back-2 Digital Data-Imprinting Unit DP-520: Deluxe accessory data back. Same
features as Info Back (DB-010) plus LCD readout via built-in monitor window.
These may not be able to date past 2019.

Chinon Auto Date Quartz Digital Data Imprinting Unit (AD-S10)
Accessories date back featuring electronic imprint of year, month, day and hour directly on your negative or
slide. Date automatically resets until year 2019. (Mike: no Y2K problem!) (oops... it's 2019 ! ! )





Chinon Accessories





INFRA-RED PHOTOGRAPHY

Your CM-5 camera accepts infrared film. To use infra-red film an extra focusing adjustment must be made.
After focusing note the figure that is adjacent to red diamond on the distance scale (Fig. 34), then move that
figure over to the infra-red mark engraved on the lens.

This adjustment is only required for black and white infra-red film. When using color infra-red film, focus in
the normal way. NOTE: Read the instructions carefully packed with the infra-red film for further information.


CHINON OPTIONAL ACCESSORIES


Standard Lenses                                200 mm f/3.5 multicoated

45 mm f/2.8, 50 mm f/1.9                         300 mm f/5.6 multicoated

50 mm f/1.7 multicoated                         500 mm f/8 reflex Ape

50 mm V1.7 AF                                   35-70 mm f/3.3-4.5 AF Zoom

50 mm f/1.4 multicoated                           35-100 mm f/3.5-4.3 MC Macro

Wide-Angle Lenses                               80-200 mm f/4.5 MC Macro

28 mm f/2.8 multicoated                           70-210 mm f/3.8 MC Macro

35 mm f/2.8 multicoated                           100-300 mm F5.6 MC Macro

Telephoto Lenses

135 mm f/2.8 multicoated



Accessories


PW-545 & PW-610                      CHINON Auto S-240 flash

Info Back DB-010                      CHINON Auto S-280 flash

Info Back-2 DP-520                     CHINON Auto S-360 Flash

Auto Date AD-510                                Synchro-eye for flash (Slave Unit)

CHINON Auto S-180 flash

Wireless Remote Control set for Power Winder      Bellows

Deluxe Carrying case                           Mini Copy Stand

Neck Strap                                     Table Tripod

Filter (UV, Y2, ND4X, PL)                       Cable Release (13 inch) (any brand will do)

Rubber Eyepiece                             Remote Control Unit

Eyepiece Adaptor (-3, +1, +3)                     Spare ring for Mini Copy Stand

Angle Finder                                  Lens Mount Cap

2 clips lens cap                              Body Cap

1.5 V Alkaline Batteries

(3 pcs in one sat)

Rubber Lens hood

Auto Extension Ring



CARE OF THE CAMERA

Your Chinon CM-5 camera is a precision instrument. Used with care, it will provide years of service. Protect
your camera from dirt, rain, dampness, and excessive heat. Avoid touching the lens. To clean the lens, wipe it
gently with a soft lintless cloth or lens tissue. Do not use eyeglass tissue as they might damage the lens coating.
