CHINON CS-4 User manual

www.butkus.us
@CHINON        H;Tcs-4
      35mm
      Lens
     Gimera
Images are half way into this manual

INSTRUCTION MANUAL

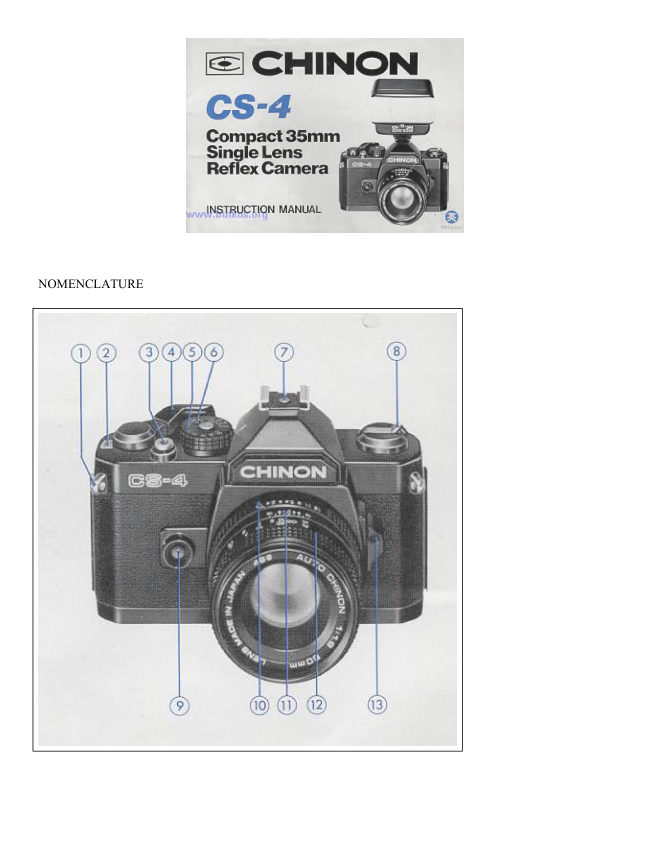

14. Film Chamber
15. Exposure Indicator LED's/Battery
    Check Lamp
I 6. Viewfinder Eyepiece
17. Sprocket Teeth
18. Take-up Spool
19. Filn Pressure Plate
20. Film Chamber Cover
21. Rewind Button
22. Film Guide Rail
23. Film Rail
24. Tripod Socket
25. Shutter
26. Battery Compartment Cover

www.butkus.us
                                         cAMERAtCl SpEctFtcATtoNS oF cHtNoN cS-4 coMPAcT SLR
Type : 35mm SLR Compact with LED type  Film Advance : Sinsle stroke in an arc of
light measuring system.                       130" with 25" stand off.
Picture Format  : 24 X 36mm.             Film Counter : Automatically indicates
Lens Mount  : M-42 Screw Mount.          number of exposures and resets to 665"
Mirror : Quick return, shockless system.      when camera back is opened.
Shutter : Seiko MFC metal focal plane   Film Rewind : Folding crank type.
 shutter, vertical path.                        Accessory Shoe: Hot shoe type with X sync.
Shutter Speed : I sec.   l/1000 sec., "B".     Action [,amp : Red LED illuminates while                    -Viewfinder : Fixed eyeJevel pentaprism,   the shutter operates.
                                                                                                    sec.central split image with microprism collar   Synchronization: Flash sync. at l/60
and ground glass,                        Power Source : Two l.5V Alkaline batteries
Viewfinder Magnification  : 0.87 X (@50mm,  (LR44, A76) or two l.5V silver oxide
oo).                                                 batteries (SR44, 576, G-13).
Viewfinder Visibility  : 92%                    Battery Test : Built-in with LED indicator.
Exposure Meter : TTL, center weighted mea-   Accessories :  Multi-coated lenses, Auto
suring system employing a silicon blue cell,   electronics flashes, carrying case and many
3 step exposure indicator with 3 LEDs.        more.
                                                 Dimensions  : 135 (W) X 86 (H) X 50.5Exposure Range : EY+2 (Fll.g, I sec.) to  Body
EV+18 (F/16, 1/1000 sec.) - ASA 100 F ll.9   (D) mm. (5.33" X 3.38" X 1.99")lens.                                  Body Weight : 455 grams (16.05 oz.).
ASA Range       1600 (DrN    - 33) withsafety lock.

www.butkus.us
     rrurnoDucnoN            BASIC OPERATION1€l
Welcome to the world of Chinon photo-
graphy! Your Chinon CS-4 camera is one of
the most advanced 35mm SLR cameras in-
cbrporating features normally found only in
higher priced models. This fantastic compact
camera employs the latest state-of-the-art
electronics which will ensure carefree opera-
tion everytime. In order to take full advan-
tage of the features of your CS4, please
read the instruction manuals carefully so as    l. Install the batteries.to totally familiarize yourself with your
camera before actually starting to take
pictures. We thank you for choosing Chinon
quality products and we wish you years of
satisfaction and enj oyment.





                                              5. Focus the subiect.
6'

cs-4





2. Load the camera. 3. Set ASA film speed.   4. Set either the shutter speed or the lens
                                                   open-ing according to your photographic
                                                  requlrement.




6. Push up the exposure meter switch to    7. Depress the shutter release button.   activate the exposure  indicator LEDs.
  Green LED indicates  correct exposure.

www.butkus.us
                                       TESTINGE   INsTALLING THE BATTERIES BATTERY
 1. By using a coin, unlock the battery com-  To test the batteries, push up the exposure
   partment cover by turning it counter-   meter switch. If the batteries are in good
    clockwise (Fig. 1).                          condition. one of three LED's located at the
 2. PIace two I .5V Alkaline batteries (LR44,   left side of the viewfinder frame will illumi
   A76) or two 1.5V silver oxide batteries'  nate (Fig. 4). If a LED fails to illuminate,
   (SR44, 576, G-13) with the minus   the batteries are too weak and need to be
    (-) side facing upwards (Fig. 2).            replaced, they are incorrectly inserted, or
 3. Replace the battery compartment cover   the shutter speed selector is set to the "B"
   by turning fully clockwise (Fig. 3).           position.
  NOTE: Clean the batteries with a dry
    cloth or tissue paper before inserting and
    thereafter every six months.
   Make sure that the batteries are inserted
    correctly, i.e., check polarity. The ex-
   posure indicator LEDs and the action
   lamp will operate only when the batteries
    are correctly installed and not exhausted.

FILM LOADING                                cs-4
Your Chinon CS4 camera can be used with   8. Turn the film rewind knob gently until
any type of 35mm film.                         the film slack is taken up and the rewind
 l. Pull up the film rewind knob until the    knob stops. Do not force or further
   camera back pops open (Fig. 5).               rewind the film.
2. Then, insert a film cartridge into the film   9. Advance the film and release the shutter
   chamber with the protruding end facing    two times (Fig. 8). The rewind knob
   the bottom of the camera (Fig. 6).             should rotate counterclockwise when the
3. Push in the film rewind knob and slightly      film is advanced and the "1" marking
   turn the knob in either direction until  it     should appear in the frame counter
   engages the film cartridge spool.            window (Fig.9).
4. Insert the trimmed end of the film into a
    slot of the multi-slotted take-up spool.
5. Turn the shutter speed selector to any
   setting and advance the film while hold-     Images are half way into this manual
   ing the film lightly down on to the trans-
   port sprockets.
6. Release the shutter if necessary and ad-
   vanced the film until the sprockets engage
   with the upper and lower perforation of
   the film (Fig.7).
7. Close the camera back firmly until  it
   locks with a click.

f                                                  www.butkus.us
     MEMo HoLDER          FRAME COUNTER  LAj
  The Chinon CS-4 camera has a built-in   Your Chinon CS4 is equipped with a frame
   memo holder feature. To utilize the memo   counter which displays the number of ex-
    holder, simply cut off the top of the film   posures and resets automatically upon open-
   box and insert it into the memo holder   ing the camera back. When the camera is
    located on the back cover of your camera.   opened, the counter shows "S" indicating
    This will enable you to quickly and easily   the start of the picture taking process. When
    identify the type of film and ASA speed   film is loaded according to the procedure
    used in your camera (Fig. l0).                 previously described, the counter displays
                                       "1" indicating the camera is ready for the
                                                             first exposure. Every time the film advance
                                                     lever is turned the counter will proceed one
                                            stop forward. The numbers 24 and 36 are
                                               colored in orange to warn the end of com-
                                         monly available films (Fig. l1).
                                        The action lamp (LED) located on the front
                                               of the camera body will illuminate while the
                                                  shutter is activated. The subject can easily
                                                   observe when the shutter is released.





    10

www.butkus.us
    sHUTTER SPEED sETTING APERTURE SETTINGr
Rotate the shutter speed dial to the left or  The aperture is set in the usual way by rotat-
right to select a suitable shutter speed from   ing the lens aperture ring until the desired F
the band of "B", I to 1/1000 sec., (Fig. la).   stop is set against the green index mark on
                                          the lens barrel. For further explanation see
                                          "Determining Correct, Exposure" (Fig. l5 &
                              *F16.).stop Selection: The following may be
                                      used as a guide to determine the lens F
                                                 stop when you are using the camera;
                                        Sunnyday outside  . . . .   F/8   F/16                                                                            -                                             Cloudy day outside . . . . . Fl4- F/5.6
                                                        Inside (without flash) . . Fll.9                                                                       -F12.8





12

www.butkus.us
    FOCUSING                                   cs-4
     Your Chinon CS-4 has three built-in focusins      subject distance and set the lens focusins                                                                                                  -       aids.                                                  ring to the appropriate setting (Fig. l9).       1. The center of the viewfinder is a split
        image with microprism collar which is     1. Over Exposure Indicator (Red LED)
        surrounded by ground glass. When the     2. Correct Exposure Indicator (Green LED)
                                                                      3. Under Exposure Indicator (Red LED)       camera is in focus, the image of these
        focusing aids become sharpest. While     4. Split-image Rangefinder Spot
        observing the subject through the view-     5. Microprism Ring
         finder, turn the lens focusing ring until     6. Fine Matte Outer Field (ground glass)
          the       and lower split image malch up
        to form-uppera uniform image (Fig. 17). ThiJ
           split image focusing  is particularly helpful
       when the subject is dominated by verfical
           lines.
      2. The microprism is also helpful. When it is
             ou_t, of focus, the image on the microprism
         will be composed of collection of aster-
         isks (Fig. 18). These sparkling asterisks
             disappear when the focus is properlyI        will          set. You can double check the focus set-
                   image on the ground glass.I      ,  ling by the      3. You can also focus indirectty. Actually
       measure or estimate the camera-to-the-                4s      6
                                                          (Viewfinder frame)           (Viewfinder)

                                                                                                                                          1.3

oerERMrNtNG coRREcr EXPoSUREfel
Your Chinon CS-4 camera has a Through   *The Exposure Indicator:
The lrns (TTL) exposure metering system.   Your Chinon CS-4 camera has three expo-
Also called an instant aperture closed measur-    sure indicator lamps (LED's) located at the
                                                               viewfinder frame. Theseing system. To determine the correct    left side of the
exposure, observe the subject through the    three lamps control the condition of expo-
viewfinder in the center of the microprism   sure of the camera. The condition of
area. Then, push up the exposure meter    exposure can be confirmed in the following
switch until it is locked and the exposure in-    three ways:
dicator lamp (LED) located on the left side                                                                  (A)        (B)        (c)of the viewfinder frame illuminates (Fig.20).
Should the green lamp (LED) not illuminate,you must turn either the shutter speed dial    RED     Hor the lens aperture ring until the green lamp         lol        trll"l     l-l
illuminates. By doing so, you will be assured    GREEN tol
of a correct exposure.                                      RED   lnl                                                                              lolpj      lolpl                           LY
                                                                     A.  Over Exposure Indicator
                                                                              B.  Correct Exposure Indicator
                                                                              c.  Under Exposure Indicator



t4

www.butkus.us
                             UNLOADING EXPOSED FILM

                             speed dial or the  When the film in the camera is fully exposed,.  When rotating the shutter    lens aperture ring, you must operate them  the film advance lever will stop. Do not
    slowly since the exposure indicator lamps   atternpt to force the lever any further. Re-
   are very sensitive. Generally you should   wind the film and replace with a new film.
'    select a shutter speed first then operate the   1. Push in the rewind button at the bottom
    lens aperture ring until the proper exposure      of the camera (Fig. 21).
    is obtained. A tripod should be used for   2. Unfold the rewind crank of the rewind
    shutter speeds lower than l/30 second.          knob and turn the rewind crank clockwise
   NOTE: The exposure indicator lamp does      (Fig. 22). You will feel friction as the
    not illuminate when the fhutter speed dial is      film is rewound. Suddenly, when the film
    set at the "B" position, batteries are incor-      is rewound completely the friction will
    rectly installed or too weak, or the meter      decrease and the rewind crank will turn
    switch is not pressed up to the 66ON"     with ease.
     position.                                      3. pull up the rewind knob to open the
   The exposure meter switch is automatically     camera back (Fig. 23).When the camera
    returned to the "OFF" position when the    back is opened, the frame counter will
I   shutter release button is depressed. You can      automatically reset to the "S" position..    also return the switch to the "OFF" position    The rewind button on the bottom of the
   by pressing it down.                     Be sure not to keep the     camera will pop out upon the next                (6ON"                          position for a long     advancement of the film advance lever.,   switch in the'   period of time. This will prevent unnecessary     Your exposed film should be processed
    battery drain.                                   without delay for best result.
II

 I
                                                                                     15

LENSES16II  --l    ITUTCRCHANGEABLE
Your Chinon CS-4 camera is equipped with t        28nn
Chinon screw mount which accepts all inter-
changeable lenses with M-42 lens mount. To
remove the lens from the camera body, press
down the exposure meter switch, holding
the camera body in one hand and grip the
lens with the other, turning it counterclock-
wise until it is removed (Fig. 24).
NOTE: Do not remove or replace the lens
while the camera is functioning. To replace
the lens, insert the lens into the camera body
and    turn             it clockwise                       until secured in ^posi-      l35mn      finger-tighttion                   (Fig. 25).





16

www.butkus.us
USING THE ELECTRONIC FLASH
It is advisable to use a flash when the expo-
sure indicators detect that the light level is
too low, such as indoors, at night time, or in
daylight when the subject is too dark to
provide adequate exposure.
Electronic flash units as well as conventional
flash units using flash bulbs may be utilized.
Your CS-4 has'a hot shoe (Accessory shoe
with built-in flash contact) for "X" synchro-
nization (Fig. 26). Electronic flash units
having a hot-shoe (built-in contact) may be
used without connection cord. As the hot
shoe has "X" type synchronization,  it can be
used with electronic flash at l/60 sec., or at
slower shutter speeds (Fig.27).
The lens aperture is determined by the calcu-
lation table indicated on the flash unit.
Specially designed and developed automatic
flash units are available for your Chinon
CS-4 camera as optional accessories. These
highly advanced electronic flash units permit
carefree flash photography. Look at the
following fantastic flash units by Chinon:

DEPrH oF FTELDlal
Depth of field designates the nearest and   *Depth of Field Scale
furthest limits of the area that will be sharp   The depth of field scale indicates (after
in the picture in front of and beyond the    focusing) the approximate area that will be
subject. Depth of field is controlled by the    sharp in the picture. Locate on the depth
F/stop. The larger the lens opening, the   of field scale the corresponding pair of
shallower the depth of field. The smaller the    F/stop figures. The {istance between these
lens opening, the greater the depth of field   two F/stop figures on the focusing ring will
becomes (Fig.28 &29).                 be the area of sharpness in your picture
                                                       (Fig. 30).

www.butkus.us
   INFRA-RED PHOTOGRAPHY     CAMERA CARE                                  cs-4
    Your CS-4 camera accepts infra-red film. To  Your Chinon CS-4 is a precision instrument.
    use infra-red film an extra focusing adjust-  When used with care, it will provide years of
    ment must be made. After focusing note the  trouble free service. Protect your camera
     figure that is adjacent to the green index  from dirt, rain, dampness, and excessive heat.
   mark on the distance scale (Fig. 31), then  Avoid touching the lens. To clean the lens,
   move that figure over to the infra-red mark  wipe it gently with a soft lintless cloth or
ln,   engraved on the lens. This adjustment is only   lens tissue. Do not use eyeglass tissue as this
    required for black and white infra-red film.  might scratch the lens coating.
   When using color infra-red film, focus should
    be performed in the normal manner.
  NOTE: Read the instructions carefully
    packed with the infra-red film for further
I   information.





                                                                                    2l
