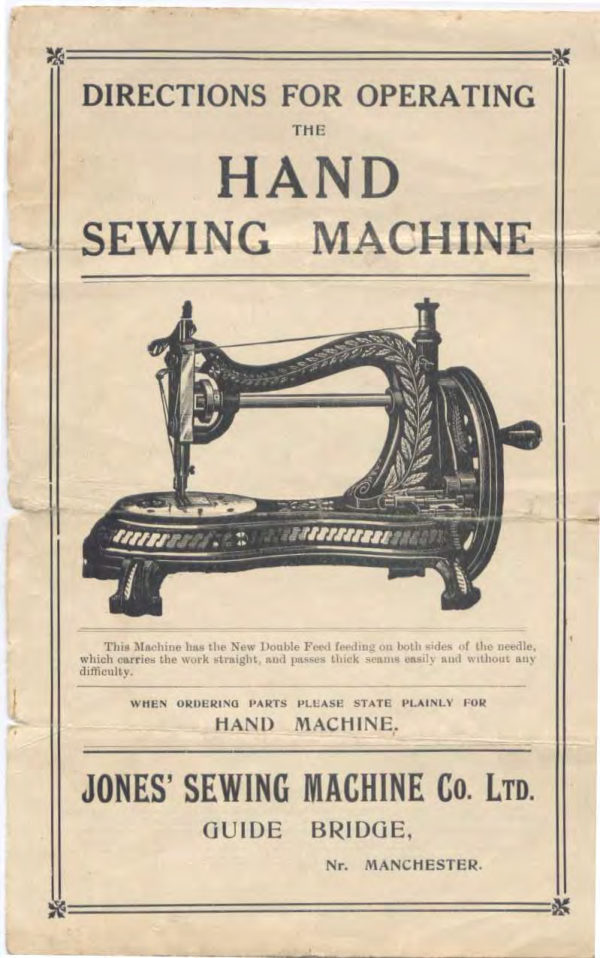

DIRECTIONS FOR OPERATING
                   THE
   HAND
SEWING MACHINE





    This Machine tins the New Double Feed feeding oil lath sides of the needle,
which carries the work straight, slid passes thick senms easi!y slid without ally
difficulty .

      WHEN ORDERING PARTS PLLASE STATE  PLAINLY FOR
          HAND  MACHINE .

JONES' SEWING MACHINE Co. LTD.
        GUIDE  BRIDGE,
                             Nr .  MANCHESTER .

KEPT THOROUGHLY CLEAN AND WELL  OILED.

             TO COMMENCE SEWING .
           Raise the Ifesser-foot by pinllin,_  tltc  lifter R (,-  pa "lc  7,   1~, the right  ; withdraw
        the slide that'ocovers the r+Iitatle-race,  stud hlaeo the ,Ruffle into tile shuttle-carrier,
        leaving about two inches of thread stretched out behind .  Then let the needle descend
         (putting the finger on the end of the thread) .  The shuttle  will then pass through fhe
         loop of tile needle thread, and when th,  iiee die ri"-s  it will briny; tlu  ~hutth   till-,'lid  ul,
        with it through the needle-hole in cloth plate.  Then close the slide. place  tile fabric
       nndor 'lip ,vu"~le  a-d _!O  ths.  ~tz ,rewer-foodAWn upon it.  jin sure that the presser-
         foot  rests upon  tt,e taliric'hefore -ciinmu+nbtfigg  tzs sovt1  - "1'U1arr must t,esome+ tension
       upon the threads . otherwise they trill kiwi or tangle up .
                                                      7
                THE TENSIONS.
        The tension  should  he  so regulated  a,;   t,j draw  both  threads and  lock them
        together  in the centre  of  tile  fabric, thus



        producing a firm neat, and durable  IIOCK-S, rten, which will neither rip nor ravel, but
       has the same appearance on both sides of tilo tlaterial'whetr-Hewn,  if both threads
        are of proper size, and have tile right amount of tension upon them  .
              If the shuttle thread is very tight *nrl tltc upper thread too  loose, thunder thread
         will be straight, thus


~~___~_~be_c_a use there  is nut sufliciw~t unrwr         - r.  :z_!  t!,. ZA f  it, .  vn the
 uo1, e.-uatt, n the "shuttle thread draws oft tn,i it ilc. and tile upper  is too tight, the
       under threrid will be drawn up through  tltu  fahru, and the upper  thread  will  lie
         straight thus   :


        while the under side may look well .  The stitch slmuld he made perfect on both sides.
         It  is, therefore, necessary  to have tile  tension  of  both threads as  nearly  alike as
         possible, and as tight as the threads  will sew without breaking.  The upper  tension
       can be increased or lessened at pleasure by turning the tension thumb nut H (page 3)
        the lower tension by turning the screw  in shuttle to right or left                                                           .

             TO REMOVE THE WORK .
             Note the New, Thread Releasing Arranitement, an
                  Important Improvement  in this Machine .
         When  removing  tile work  fr,on  under tile  machine, immediately  y,ut  lift  the
         presser  bar-foot  lifter yon will  find  that  the thread  or  cotton  in  tile  tension  is
         released, and you call draw the work front under the machine easily without breaking
        the thread or needle .    It  is  always necessary  to leave a few inches of cotton or
         thread when you cut oft  tile work.

             IF THU MACHINI: RUNS  HCAVV,  oil  it  well  with PARAFFIN  Oil., run the
       Machine  tit a quick speed  for a  few minutes,  (lien clean the  paraffin  Oil  off, and
          oil the Machine well with GOOD SPER .%1 Oil. .

NO MACHINE WILL WORK SATISFACTORILY UNLESS KEPT
        THOROUGHLY CLEAN AND WELL OILED.
  TO REGULATE THE LENGTH OF STITCH .
                F





   By turning the thumb screw G to the left hand, the stitch will be lengthened                                                                  .
   By turning the thumb screw G to the right hand, the stitch will be shortened .
    NOTE.-Be careful not to turn the thumb screw (  too much to the
right hand, or you will stop the feed from  acting and carrying the work
forward.
            MISSED STITCHES
Are caused by the needle being too high or toll low, or the cott"Jo being too  fine for
tire  needle, or  tlu' needle po ;ltt being blunt*oi  Ilaotaged.
    If the thread  is irnproperl'v  twisted                                           .
instead  of square into the shuttle race .   In that case the needle should be  slightly
turned in an opposite  direction, to counteract  this tendency  to throw the loop away
from  its proper position .
  When using very fine needles, and also when stitching heavy work, be sure that
the point of the needle is perfect, sharp, and not blunted or turned over .
                      It   is  important the  needle  point   is SHARP.
An imperfect needle may cause the best Machine to miss stitches
     BREAKING OF THREAD OR COTTON
Is caused by the needle being put  iotr, the Alachinc  with the short groove on  the
wrong side   ;                                          4r"  hirttl  I1T dill low ;                       t)r  11  6JIl°  IlCyurtp   o    °"' 4
                                                                                             . being too tight  ;                Or by the tension
                Or by the thread being too large fr needle eye  ;
                Or   if the needle eye be rough or sharp.
   Be sure that the hole in the needle plate is not rough or damaged, but perfectly
smooth .
    If the hole  , in the needle plate  is rough,   it  is sure  to cause the Machine  to  cut
and break the thread                                                              .
      If THE MACHINE RUNS HEAVY,  oil  it  well  with PARAFFIN  OIL,  run  the
Machine at a quick speed for a few minutes, then Clean the  Paraffin  Oil  off, and
oil  the Machine with GOOD SPERM OIL.

NEEDLES, &c.
     Needles and small articles can be sent by post to all parts of the
country, on receipt of Post Office Order  in payment.   Stamps only
for small sums under five shillings                  .


    When any NEW PARTS are required,

whenever practicable, always send the old or'broken . part as sample or
pattern ;  it saves endless time and annoyance.   If you cannot' se'li
the broken  part,  lay the part on a piece of paper and scribe round
with a pencil, so that we may see the exact size and shape of the
article wanted .

     SENDING MACHINES TO BE REPAIRED

    All Machines or parts sent for repair should have the
owner's name and address  attached  to  them, together
with instructions as to the nature of the repairs required .
Unless  this be  strictly attended  to, we  cannot  be  held
responsible for the safe return of any Machine.
