Page 1 · Read text
www.butkus.us

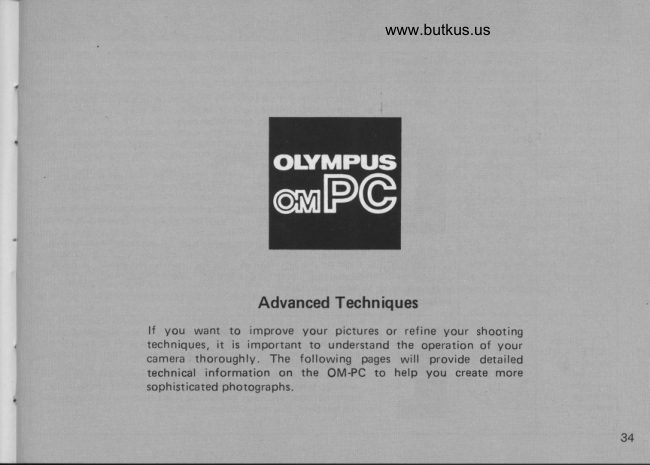

Advanced Techniques
lf you want to improve your pictures or refine your shooting
techniques, it is important to understand the operation of your
camera thoroughly. The following pages will provide detailed
technical information on the OM-PC to help you create more
soph isticated photographs.View original page 1Page 4 · Read text
Merci de faire un don de 2,50 € pour soutenir ce site via E-bay ... www.PayPal.me/butkusView original page 4
Page 5 · Read text
www.butkus.us
ESP Metering is the mode to set for general use. In
this mode. you don't have to worry about how the
picture will turn out. All you need do is press the
shutter release. Even in trickly situations such as
sharp backlighting, the camera responds f lexibly to
give you correctly exposed shots. This mode
assures trouble-f ree shooting even with the kind of
pictures that often turned out as failures because
the exposure was wrong. ln fact, ESP Metering \{
greatly increases the range of auto exposure tech-
nology. The following examples should provide a ,$*"N
useful reference.
* When taking pictures in ESP metering mode, acti-
vate the viewf inder display by pressing the shutter
release button lightly, then shoot.
Subjects for which ESP Metering is Specially Effective
r Backlighting
With center-weighted average metering, this kind of
situation tends to leave the subject's face pitch
black. But ESP Metering assures even the fine
shades of the subject's expression are faithfully
conveyed. For the best results, try to keep the
main subject fairly near the center of the composi-
tion. Check for the ESP Metering symbol (D in
the viewfinder.
37View original page 5Page 8 · Read text
! Notes on ESP metering r When the subject is not in the center of the
The ESP metering mode works properly for the viewf inder
majority of subjects, but it may not be as effective Because ESP metering measures with emphasis on
giveI in the following cases: the center of the viewfinder frame, it will substantially the same result as the center-weighted,
I rlnWhenthis case,the subjectthe meteringis too smallmethod is practically the averagedposure in ESPmetering.meteringIn modethis case,as follows.use manual ex-
same as the center-weighted averaged metering.
r Manual exposure in ESP metering mode
Set the metering mode the shutter speed at the same value as switch to the ESp and the o Set exposure manual. mode to indicated in the viewfinder.
Jr Compose your photograph. Reframe your subject again as you originally
t Aim the camera so that your subject is located did in .9,4, then focus and shoot it by depressing
in the center of the viewf inder. Now, the 0 the shutter release button. mark willturn on.
Digitally signed by Mike Butkus
DN: cn=Mike Butkus, o=Butkus camera manuals, ou=butkus.org,
email=mike@butkus.org, c=US Mike Butkus Date: 2022.02.13 00:55:29 -05'00'View original page 8Page 10 · Read text
GUIDE TO SELECTION OF EXPOSURE MODT
v tewltnoer
lndicatio n F eatu res
1 This is the ideal normal mode for snapshots and general photography.
2 When this mode is set the camera automatically decides both the shutter
speed and the aperture. Fully automatic exposures are possible over a wide
range of subject brightnesses.
3 You can concentrate on following the subject in the viewfinder without
worrying about exposure or shutter speed settings.
4 lf you set an intermediate aperture on the lens, the program a.utomatically
becomes a continuously variable program.
1. This is basically an aperture preferred mode, but it is possible to use it also
as a shutter speed preferred system. This mode is the one to select when you
want to put your creative ideas into the picture.
2. In this mode you can concentrate on special depth of field effects, adjusting
the aperture to determine whether the background, etc., will be blurred or in
clear focus.
r Here the background is blurred to make the main subject stand out. (wide
open lens aperture)
r Here the background is also in sharp focus, giving a feeling of greater spa-
ciousness and expansiveness. (Stopped down aperture)
3. You can concentrate on shutter speed effects (blurring with motion. etc.).
I Here a fast shutter speed arrests the movement of the subject, giving it a kind
of timelessness. (Wide open aperture)
r Here use of a slow shutter speed results in a blurred subject, emphasizing the
sense of speed. (Stopped down aperture)
1. In Manual Mode, both the lens aperture and the shutter speed are set by
hand, giving free reign to your experience and 'feel'for the picture situation.
2. Use when you want to keep the same exposure settings regardless of the
brightness of the subject.
3. Use for "Bulb" photography when the shutter is both opened and closed
manually.
4. Use when you are basing the exposure on the values given by a separate
exposure meter.
42View original page 10Page 11 · Read text
www.butkus.us r Program Exposures with the best possible aperture and shutter speed if you suddenly come from a dark ln this mode the camera automatically selects the settings. Even ideal lens aperture and shutter speed for the sub- place out into bright sunlight' the camera responds both ject brightness, making you highly responsive even immediately, assuring you fine photos in to unexpected shots. In Program Mode, the photo- situations. Better still, when you use the Program grapher can forget about exposures and shutter exposure mode together with the ESP Metering speeds completely, and give f ull concentration to mode, even raw beginners are assured of great shots the subject in the viewfinder. The only settings in every situation - including tricky backlit or high needed are to turn the Mode Selector Dial to contrast shots that used to stump the experts too! general and snapshots for mode is the perfect ring to the This set the aperture Program @ , and as fields special such as for as well photography, number)' (largest F aperture available smallest Whether the subject is extra bright or unusually news photography, where being ready for every- dark. you can still rely on fully automatic shots thing at all times is the most important require- 43 ment.View original page 11
Page 12 · Read text
! PROGRAM DIAGRAMS
Continuously Variable Program Program Diagram with Use of T
Regular Program Diagram Diagram Series Flash Unit
This program shows the regular The special OM-PC program The OM-PC assures you ,,OTF.,
Program settings that will be system also allows yOu to Inten Program Auto flash perform-
obtaaned with a somm F'l .8 lens tionally set different lens aper- ance when Vou use an OMon the camera. From dim light tures for a continuouslv variable System T Series flash unit. The
conditions up to a shutter speed program able to assure precise flash will fire automatically at
ot 1/60 sec. the lens aperture depth of field effects, etc. For a program shutter speeds ot 'l/6eremains wide open. At {aster quick unexpected shot. the sec. or slower, whenever the
speeds than 1/6O sec. the shurrer program will assure a correct flash unit is switched ON. lnspeed and lens aperture settings exposure providing the shutter this situation the camera prochange in coordination at a ratio speed you need is not over 1/ gram automatically shifts threeof 6/5 as shown. Thus the pro 10OO sec. lf the lens aperture settings to the special Flashgram as designed to assure setting calls for a shutter speed Program. The final exposure is
adequate shutter speeds and faster than 1 /1 0OO sec., this made precisely accurate bV theminimize the risk of camera lr?)symbol and the 1OO0 in- camera computer, which shutsshake spoiling the picture. With dicator in the viewfinder will off the flash the instant the rightstill brighter subjects, the pro flash on and off, and will warn amount of light has reached thegram concentrates on closing You to reset the aperture to the f ilm.down the lens aoerture suffi- largest number.
ciently to assure sharp and clear
depth of field effects. 44View original page 12Page 14 · Read text
Preferred) SELECTING THE ExPosuRE MODE - AUTO (Aperture -
r Auto Exposures
This is an aperture preferred auto mode in which When you want the background to appear sharply
the shutter speed is set automatically by the camera too, close the aperture down. In this way you can
to give the correct exposure for the aperture which precisely adjust the lens depth of f ield for just the
the photographer has set after considering the kind effect you want. Although this mode is basically
of picture desired. Settings are simple. First set the aperture preferred, you can also use it as a shutter
Mode Selector Dial to AUTO. Then set the desired speed preferred mode by adjusting the lens aperture
aperture on the aperture ring. In this mode you to get the shutter speed you require in the view-
have a creative freedom to select desired depth of finder display. Used in this way it is also highly
field and other effects, for the kind of results it is suitable for getting the effects you want with mov-
hard to obtain in Program Mode. For example, if ing subjects.
you want to eliminate the background in a portrait
shot, o.pen up the lens aperture as far as you can.
46View original page 14Page 16 · Read text
PREVIEW BUTTON
When you wish to see which objects
fall within the acceptable zone of
sharpness (depth of field), press the
prevrew button on your lens. The dia-
phragm of the lens will stop down to
the preset F stop enabling you to see
the depth of field in the viewfinder.
In PROG RAM mode, it is impossible to check
the depth of field with the preview button.
CAUTION: . Do not take pictures in the pro-
grammed exposure mode with the preview button
dep ressed.
48View original page 16Page 18 · Read text
lf you press the shutter release button lightly while
looking through the viewfinder, you will see the
automatic shutter speed in the left side of the
frame. However, if the "1000" blinks, it means
overexposure and you will have to close down the
apertu re.
lf the "1000" does not disappear even when the beBlinksstoppedto warndownlens toapertureavoid mustover-lens is set to its minimum aperture, the subject is exposure,
outside the range of automatic exposure control.
In this case use an ND (neutral density) filter or
shoot with film having a lower ISO number.
Shutter speed indications. Appro-
priate figure lights up.
Shutter speed of 1 sec. or slower.View original page 18Page 19 · Read text
www.butkus.us
The OM-PC also provides manual exposure con-
trol. With the exposure mode dial set to MANUAL,
you can choose your desired aperture and shutter
speed combination. You will see the following
display in the viewfinder. Lights to Show Manual Mode Set-
As you adjust the aperture ring, the appropriate ting.
shutter speed for the aperture you have set will be
displayed in the viewfinder. Set the shutter speed
dial to that value.
lf you are shooting fast moving subjects such as
sports scenes, you may prefer to set your shutter
speed first. lf so, then adjust your aperture until
the preselected shutter speed is indicated in the
viewfinder. This technique is useful when a specific Shutter speed indications.
shutter sPeed is needed. Appropriate f igure lights up.
Shutter speed of 1 sec. or slower,
51View original page 19Page 21 · Read text
SELECTING THE FILM SPEED SETTING MODE www.butkus.us
Mode Finder Featu res Mode Selector Dial lndication
1 lf you use f ilm that has the DX code and set the selector
dial to this mode, the film speed is set automatically on
the camera. (The range of auto settings available is f rom DX ISO ISO 25 to 3,200.) AUTO
SET
1 For when you use f ilm without the DX code.
(The range of settings is from ISO 25 to 3,20O.)
2 For when you prefer to set a different film speed ac-
cording to your own experience or preference.
3 For when you plan to use forced or under-developing of
the film.
tso You can make this setting manually according to your
MANUAL own experience in order to prevent darkening of theSET model's face, etc., in backlit or strong contrast situa-
tions. (The exposure compensation range is from -2 to +2 stops, in 1/3 stop increments.)
When using a super wide angle lens in situations where
the sky unavoidably forms a large part of the composi-
tion, it may be useful to set a plus exposure compensa-
tio n.
When using together with ESP Metering mode, exposure
compensation set by the ESP Metering system are added
to those that are manuallY set.View original page 21Page 22 · Read text
! DX ISO AUTO Film Speed Setting r ISO Manual Setting
Film speed information is recorded in the digital The OM-PC also allows marrual setting of the f ilm
pattern imprinted on the cassette of DX type film. speed in exactly the same way as previous cameras.
The OM-PC reads this information through the Also use this mode at times when you wish to set
electrical contacts located at six positions in the an exposure compensation on the dial.
film chamber, and conveys it to the camera's
computer. On reading this information, the film r Exposure compensation
speed is automatically set on the camera. In .other Whether it is in the programmed exposure mode,
words, when you turn the OM-PC film speed dial automatic exposure mode, or manual mode, the
to the DX lSO AUTO SET position, whatever the OM-PC permits exposure compensation with the
film speed it is automatically set on the camera. exposure compensation dial. (Remember, exposure
There is no risk of getting a mistaken setting when compensation is not possible in the film speed
you change to a different film speed ... a common auto-set mode.) For example, if the background is
disaster in the Fast! When using the DX ISO AUTO brighter than the subject (backlighting), turn and
setting, first make sure that you are using DX set the dial to the (+) side. This will provide more
film. Also note that if there is any damage to the light for the subject.
digital pattern on the film cassette, this could re- As you turn the dial, the EE sign will blink in the
sult in a mistaken film speed setting. viewfinder and the displayed shutter speed will
shift depending on the amount of compensation.
The dial can also be set
at the intermediate click +:
positions providing
+I StoP accurate 1/3 stop
exposure com-
pensations.
0
- 1 StopView original page 22Page 23 · Read text
BULB EXPOSURE www.butkus.us
lf you require long exposure,
set the shutter speed dial at
"B" (bulb). This is useful for
night exposures or other spe-
cial effects.
* When taking pictures with
the shutter speed dial set at
"8", it is recommended that
you use a tripod and cable
release to prevent camera
shake.
55View original page 23Page 24 · Read text
MULTIPLE EXPOSURE INFRARED PHOTOGRAPHY
By tripping the shutter several times on the same
frame, multiple images are produced on the same
frame.
This is how to do:
@ After the f irst exposure is ended, erect the re-
wind crank and turn it clockwise as far as it
will go to take up f ilm slack.
@ While holding both the rewind knob and rewind
button with your fingers to prevent them from
moving, wind the f ilm advance lever.
In fact, the film is not wound and the shutter is
cocked by this operation.
@ Press the shutter release as you would do normal-
ly, and double exposure will occur.
O BV repeating the steps @ anO @, the frame When shooting infrared pictures with infrared film
will be exposed as many times as you want. How- and a red filter, the point of focus will slightly dif-
ever, the fr:ame counter advances each time the fer if you focus visually. The amount of shift varies
shutter release is pressed. with the lens and a red line or red dot is marked on
@ After ending the multiple exposure, put the the lens' depth of f ield scale to compensate for it.
front lens cap on and make a bl ind shot. First, focus the lens without a red filter on as you
Note: The frame may shift slightly. would do normally. Next, read that distance on the
dastance scale and shift it opposite the infrared
mark, then put on a red filter and shoot. (The above
picture was taken with the distance at inf inity.)
56View original page 24Page 26 · Read text
The OM-PC is designed to provide "OTF" Auto- matic Exposure with Olympus T-Series electronic flashes. There is nothing to set since exposure is determined by the sensors in the camera body itself . You can even adjust exposures using the compensation dial on the camera. Because it directly measures the light at the film plane, it does not allow for flash exposure error utilizing the sensor built into the flash. Such special techniques as bounce flash,diffused illumination and ultra closerps can now be ac- complished with full automatic ease. Combined with T-Series flashes, the OM-PC per- mits flash exposure in three modes: "OTF" pro- grammed exposure mode, "OTF" automatic ex- posure mode and manual mode.View original page 26
Page 27 · Read text
T-Series Flashes Mounting the Flash www.butkus.us
Electronic flash T20 (small-size flash with a guide
number of 20)
Electronic f lash T32 (high-capacity flash with a
guide number of 32)
Slide the flash into the camera's accessory shoe and
lock it by turning knob until the flash is tight.
Make sure the flash is pushed fully forward, to
insure proper electrical contact.
* The electronic flash T45 and other flashes that lf the flash unit switch is Ieft on, the camera
have no direct hot shoe contact cannot be used. batteries will be drained. Make sure to turn off
the flash switch after taking pictures.
59View original page 27Page 29 · Read text
How to Use T-Series Flashes
www.butkus.us
With a T,Series f lash on the camera. the f lash mode
will be automatically set to match the camera,s ex Lights to show full flash charge, posure mode. To take pictures programmed lhe in and blinks no less than 2 sec. to mooe, swrtch the mode selector dial of the OM_pC confirm correct exposure, flash to PROGRAM, set the lens,aperture ring to its
minimum aperture and turn on the flash. The Lights to Show Program Mode
camera will determine the appropriate aperture Sett i ng
depending on the brigh tness rhe subjecr. of To take pictures \ r-ights to Show Manual Mode Set- in the mode. auto st the mode
selector dial to AUTO and choose your desired trng
aperture.
To shoot in the manual mode, switch the camera,s
mode selector dial to MANUAL and set the shutter
speed dial at 1,/6O sec, or slower. Select the aopro_prate aperture based on existing conditions. In
MANUAL mode, the flash wilt alwavs fire at fullpower output.
* When the power switch of a T-series flash is
turned on in the programmed mode, the camera,s
exposure mode wjll switch to the flash program
if the light intensity is below the specified l-evel. You will see it because the indicated shutter speed is "8" or slower. In this case, the shutter willtrip at l/60 sec.
" In the "OTF" auto flash mode, T,Series flashes
will f ire when the shutter speed is 1,/6O sec. or
slower. lf you want to ensure that the flash will
fire, however, adjust the aperture so that the
shutter speed in the viewfinder becomes 1/30 sec.
o r slowe r.
60View original page 29Page 30 · Read text
Bounce Flash Close-up Flash
The T32 has an adjustable flash head that tilts On the T32. the flash head also can be adjusted as
all as much as 90" upward. As it operates on "OTF" much as 'l 5" downward. As it operates with
auto, it allows you to use bounce f lash automati- available apertures on "OTF" auto, this feature
cally by simply activating the f lash switch. allows you to take close-ups automatically by sim-
* Set the tilting angle so that the subject is ilumi- ply activating flash switch.
nated by reflected light.
olView original page 30Page 31 · Read text
Using Electronic Flashes Other Than Olympus T-Series Units www.butkus.us
(1) Mount the flash on the accessory shoe.
The OM-PC does not accept flash units with-
out direct hot shoe contacts.
(2) Setting the aperture
lf you are using an automatic flash, check the
specifications on the flash and set the aperture
accordingly.
lf you are using a manual flash, determine the
required aperture by the following formula.
You can also use the flash's calculator panel
and set the aperture based on this information.
Flash guide number Aperture =
F lash -tosubj ect d ista nce
(3)Switch the camera's mode selector dial to
MANUAL and shoot with a shutter speed of
1/60 sec. or slower.
* Read the instruction manual of your flash
carefully.View original page 31Related documents and language editions
From the M. Butkus archive. Original publisher and archive notices are retained.
Check the model and edition against your equipment.
PDF verified 2026-10-10.
