N6 1iles
    The needles used in Mahine No. 20 areof   Class and
Variety 24 X 1; the size of nee fdle best to be used with cotton
threads Nos. 60 to 80  is. No. 14? but finer or coarser needles can
be obtained for other sizes of thread; it must be remembered
that the thread must pass freely through the eye of the needle
to ensure good res1l.ts                                                                                                                                                                                                                                       »                                "

               To Set ”rfie Needle
    Loosen the needle set screw, take out the old needle, and
push the shank of the new one1 1p into the needle bar as far as it
will go, having the long groove fin theblade at the left, and the
flat part of theshank  atthe  right; fasten itfirmly   with the set
screw.                     , ,                                                          ”3, "411-11
             To Thread he Machine

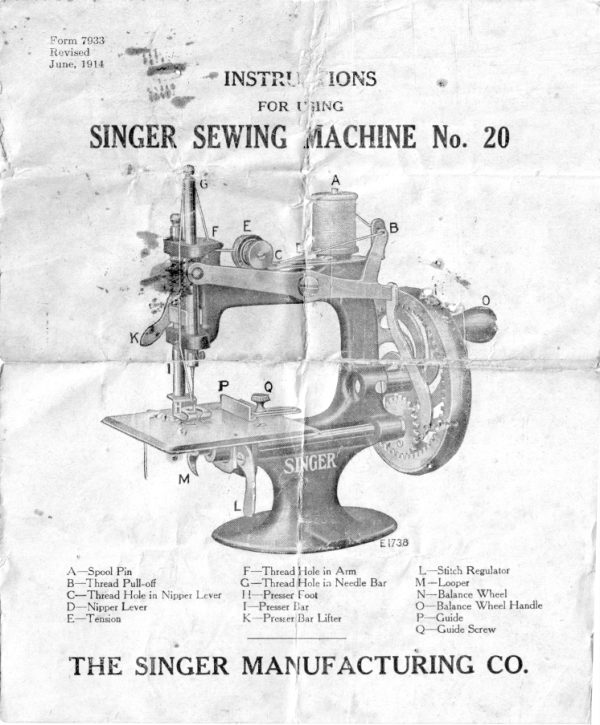

   lee the spool of thread on the spool pin  (A), pass the
end  111 the thread toward you through the two holes in the
pull- off (B), to the left and doWn through the hole (C) in the
nipper lever (D), draw it to theleft under the end of (D), and
over between the tension discs (E), up through tl’fe hole (F) in
the arm near the needle bar, through the hole (G), near the
upper end of the needle bar, down and from left to right through
the eye of the heedle.                                       1

                    To $ew
    Raise the presser bar and presser foot by turning up the
presser bar lifter (K) place the work under the needle1n the
position in whicr1 you wish to cognmence stitching; let down the
presser foot (H) upon it; hold t e end of the thread loosely by
the left hand until the needle ba has descended and risen again
once, then hold it firmly until      1  few stitches are made,  after
which it may be placed under thE presser foot, and the stitching
continued; the balance wheel 1111813 turn over from you.

.,     - ll ;    ..


                                                                                                                                                                                                                                                                                                                                                                                           I

                                                                                                                                                 i

            To Remove the Work
                                                                                                      --  ”6                                                 i                                                                             -
     Stop the machine with the-(needle at  its highest point,
raise the presser foot by presser bar lifter (K) and draw the
work out back from you, brea} ing the thread in so doing;
this fastens the thread, but the seam can be readily pulled
out if the end of the thread is withdrawn from the last loop on
the" under side, and pulled upon].
                  The Tension
    The tension on the thread is automatic and rarely requires
alteration; the thread is held beltween the nipper (D) and the
tension (E). except when the needle is at its highest point when
it is released afld sufficient thread drawn for eaCh succeeding
stitch; if necessary the tension can be changed by turning the
tension thunrb‘hut to the right Or left.                     "’«. W.
         To Change the Length of Stitch
    The stitch regulator is lever"(L); when moved backward or
from you the st1tch 1s made longer, and toward you, shorter.
           a,  p       The Guide
    The guide (P) is used for making a seam parallel with, and
at a certain distance from the edge of the work; it is used only
for straight or convex edges.   (Set it at the reqiiired distance
from the needle and fasten firmly by thumb screw (Q).  It may
be removed entirely if not required for use.
              To on the Machine
          ” The machine should be oiled occasionally with the specially
prepared sewing machine oil soid for this purpose at all Singer
shops; a small drop of oil at the end of a broom splint, or a small
splinter of wood, should be applied at each place where a part of
the mechanism moves through  or.“ against another part while the
machine is in motion.                                                                                 .,
