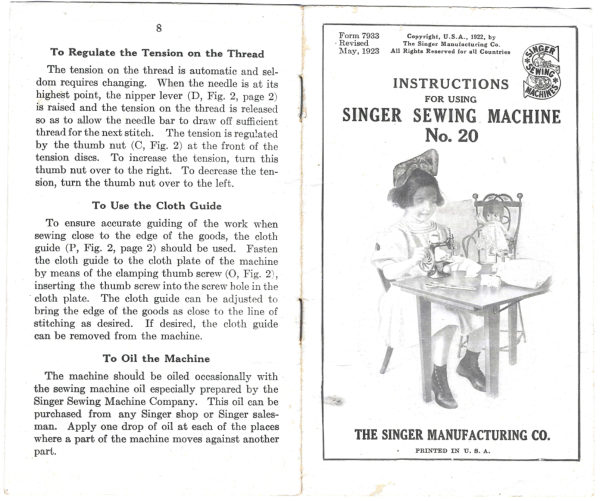

Form 7933        Copyright, U.S.A., 1922, by
                                                                                              • Revised          The Singer Manufacturing Co.
                                                                                                             All Rights Reserved for all Countries   To Regulate the Tension on the Thread               May, 1923

   The tension on the thread is automatic and sel-
dom requires changing. When the needle is at its           INSTRUCTIONS
 highest point, the nipper lever (D, Fig. 2, page 2)                         FOR USING
 is raised and the tension on the thread is released
so as to allow the needle bar to draw off sufficient       SINGER SEWING. MACHINE
thread for the next stitch. The tension is regulated                                          No. 20by the thumb nut (C, Fig. 2) at the front of the
tension discs. To increase the tension, turn this
thumb nut over to the right. To decrease the ten-
sion, turn the thumb nut over to the left.

        To Use the Cloth Guide

  To ensure accurate guiding of the work when
sewing close to the edge of the goods, the cloth
guide (P, Fig. 2, page 2) should be used. Fasten
the cloth guide to the cloth plate of the machine
by means of the clamping thumb screw (0, Fig. 2),
inserting the thumb screw into the screw hole in the
cloth plate. The cloth guide can be adjusted to
bring the edge of the goods as close to the line of
stitching as desired. If desired, the cloth guide
can be removed from the machine.

          To Oil the Machine
  The machine should be oiled occasionally with
the sewing machine oil especially prepared by the
Singer Sewing Machine Company. This oil can be
purchased from any Singer shop or Singer sales-
man. Apply one drop of oil at each of the places
where a part of the machine moves against another          THE SINGER MANUFACTURING CO.
part.                                                                                      PRINTED IN U.S. A.

To Thread the Needle                           To Commence Sewing

                         (SEE FIG. 3)                               Raise the presser foot (N, Fig. 2, page 2) by
  Turn the hand wheel (G, Fig. 2, page 2) over          turning up the presser bar lifter (R, Fig. 2). Place
from you until the needle bar (T, Fig. 2)moves          the material beneath the presser foot, lower the
                                                        presser foot and commence to sew, turning the
                                                  hand wheel (G, Fig. 2) over from you in the direc-
                                                                 tion indicated by the two arrows on the hand wheel
                                                            at the right.

                                                          To Remove the Work
                                          Sew two stitches past the end of the seam and
                                                        stop the machine with the needle bar (T, Fig. 2)




                            E 4091


              FIG. 3. THREADING THE NEEDLe
up to its highest point. Place the spool of thread
on the spool pin (1), pass the thread from the  1spool toward you through the two holes (2 and 3)

in the thread pull-off, to the left and down through
the hole (4) in the nipper lever.Draw the thread
to the left under the end of the nipper lever and pass
it over between the tension discs (5), up through
the hole (6) in the machine, from right to left                                                       139092
through the hole (7) near the upper end of the needle                FIG. 4. DRAWING THE THREAD THROUGH THE
bar, down and from left to right through the eye                            NEEDLE BAR
of the needle (8). Draw about two inches of thread           at its highest point, then with the left hand draw
through the eye of the needle with which to com-         a finger length of thread to the left through the hole
mence sewing and lay the thread back under the          near the upper end of the needle bar as shown in
presser foot.                                               Fig. 4. With the right hand, using a pair of seis-

sors, draw the slack thread to the right through
 the eye of the needle as shown in Fig. 5, then pull       To Fasten Off the Stitching in the Work
                                         When it is necessary to fasten off the last stitch
                                                           in the work, stop the machine with the needle in
                                                        the work, place the fingers on the material close
                                                             to the presser foot to prevent the work from mov-
                                                               ing, raise the presser foot and take one more stitch
                                                          in the last hole made and stop the machine with
                                                    needle bar at its highest point, then with the left
                                             hand draw a finger length of thread to the left
                                                                  • through the hole near the upper end of the needle
                               E 4093               bar as shown in Fig. 4, page 5. With the right
                                                        hand, using a pair of scissors, draw the slack thread    FIG. 5. DRAWING THE THREAD THROUGH THE NEEDLE
                                                              to the right through the eye of the needle as shown the thread upward from the work, the presser toot
 being down, and cut the thread close to the goods        in Fig. 5, then pull the thread upward from the
as shown in Fig. 6.  Raise the presser foot, pull      work and cut the thread close to the goods as
                                            shown in Fig. 6. Pull the work from you and the
                                                end of the thread will be drawn through the loop
                                                          as shown in Fig. 8.





                                                                    FIG. 8. STITCHING FASTENED OFF IN THE WORK


                                E 4094                    To Change the Length of Stitch
    FIG. 6. CUTTING THE THREAD CLOSE TO THE GOODS          The length of stitch is regulated by the lever
the work from you and the end of the thread will                                                     (K, Fig. 2, page 2) under the cloth plate.To makebe drawn through the loop as shown in Fig. 7.                                                   a longer stitch, move this lever away from you.
                                            To make a shorter stitch, move the lever toward
                                                  you.

    FIG. 7. STITCHING FASTENED AT THE END OF A SEAM
