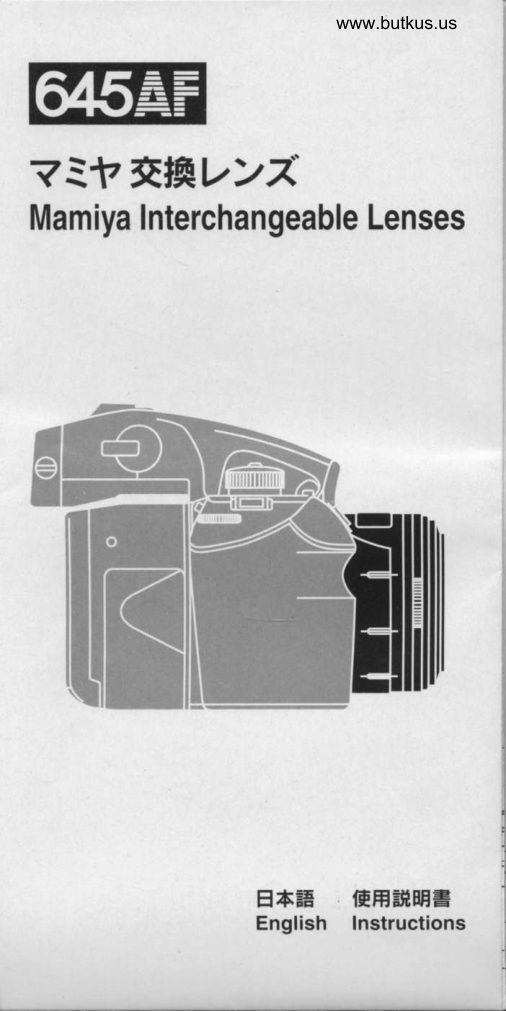

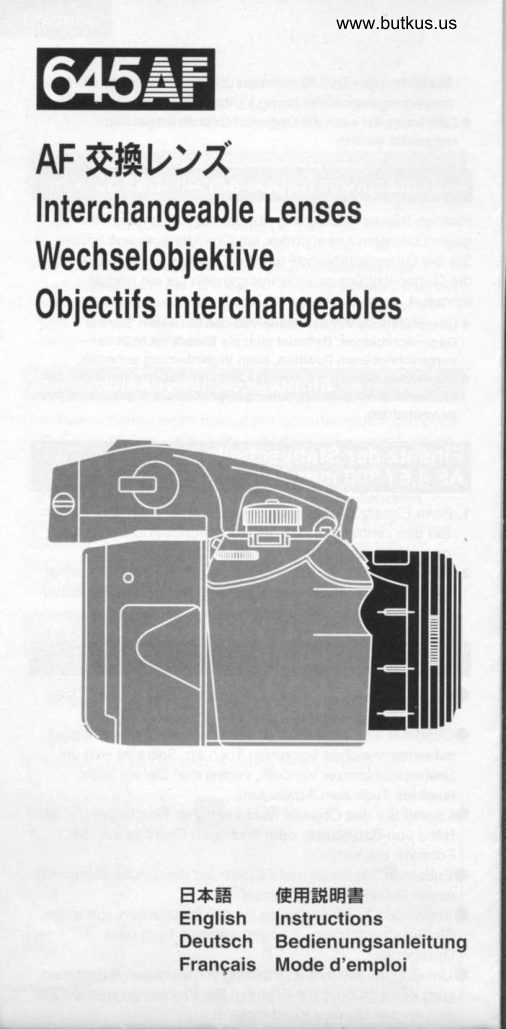

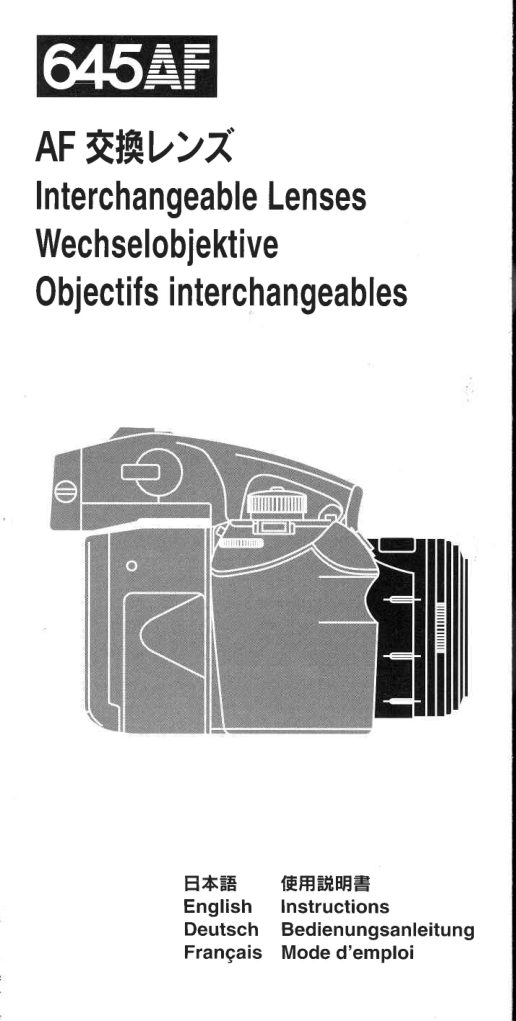

Mamiya 645AF Interchangeable Lenses User manual

aYl
AFTIFV}{
InterchangeableLenses
Wechselobjektive
0bjectifsinterchangeables





              EfiEE    ftH.EHEE=
              English  Instructions
             Deutsch Bedienungsanleitung
              Frangais Mode d'emploi

creased(f/8..11..16..22)and decreaseswhen the apertureis
increased(f/8..5.6..4..2.8).(Fig4)
The Depth-of{ieldvalue is indicatedby the Depth-of-field         The macro lens shouldbe focusedin manual mode so that the
scale engravedon both the left and right-handsides of the           focus mark lightson the externalliquidcrystaldisplaypanelin
referencemark on the lens.                                     the viewfinder.
                                                       *The focusmarkmay not lightundercertainshootingcondi-
                                                                        tions.
                                                                                                                                                                                                                                                                                         'l
                                                            Magnification
Autofocus  Use:                                      The abbreviationMAG G) standsfor magnification.
The manual-focusingcollarof these lenseshas a double           The MAG numberis a reciprocalone,whichmeansNo.20shows
function.When it is in the forwardpositionon the lens barrel,         the objectis shot in the size of 1/20,No.10 in the size of 1/10
the engraving"AUTO FOCUS"will be visibie.This is the           and No.1 in the lifesize.(FigE)
autofocusmode when the Focus Mode SelectorLever is on
the "S" or "C".The focusingcollarcannotbe turnedmanually
in this position.
Manual Use:                                                       1. Align Mark i  on the hood with the IndicatorLine (l on the
The collarmustbe pulledbackward,to coverthe engraving.            lens,and fit the hood to the lens front ring.
When the focus ring is pulledbackward,the mode switchesto          2. Fix the Lens Hood by rotatingit in the directionof the arrow.
the manualfocusmode,and "@"  is displayedon the                (The Lens Hoodcan be removedby rotatingit in the opposite
externalliquidcrystaldisplaypanelwhenthe shutter buttonis           direction.)(FigE)
half-pressed.(Fig E)


                                                                        Align the matching marks on the lens and hood, and push and
The 35mm lens changesthe focus mode betweenauto (AF)           turn the hood in the direction of the arrow until a click sound is
and manual(MF) by turningthe AF/MFselectorring(D of the          heard.
lens. (FigE)                                                             'tBefore taking photos, check the installation position of the
*Before selectingautofocusmode,turn the focusmodeselector          hood. lf the hood position has deviated from the correct
  leveron the camerabodyto the "S" or "C" position.Whenit is              position, vignetting may occur.
   in the "M" position,the lenscannotenterautofocusmodeby         *When using a polarizingfilter, choose a wide-circularpolarizing
  turningthe AF/MFselectorring.                                                        filter.

,,

1. To use in the horizontalposition,line up the center of the
  distancescale@ with the lens support'smount mark (D and
  fastenin place.(Fig E)
2. To use in the verticalposition,line up the centerof the dis-
  tance scale@ with the gap in the lens supportO and fasten
   in place.(Fig IItr)



O A frequentlyused productshouldbe inspectedperiodically
  at your nearestMamiyaservicecenter.
O Handlethe lens carefully,takingcare not to drop it or hit it
  againstan object.
O te  lens is not waterproof.When it is moistened,wipe with
  a clean,dry cloth.lf it is exposedto a salt breeze,moistena
  cleancloth,wringit well and wipethe lenswith it.
O to preventaffectingthe mechanismand film, do not leave
  the equipmentin a placewherechemicalgas of naphtha-
  lene,formalin,etc. is produced.The surfacefinish may be                                                      i  deterioratedif it comes in contactwith a solvent.
O When the lenssurfaceor viewfinderis stainedwithdirtor dust,  removeit with a bloweror sweepgentlywitha lensbrush.  WN:.
O When the lens surfaceor viewfinderis stainedwith a                                                         l-t-
  fingerprintor greasyobject,wipe it gentlywith a clean,soft
  pieceof gauze.lf the staincannotbe removedor the glass
  componentbecomesmoldy,pleaseconsultyour nearest
  Mamiyaservicecenter,
O When the equipmenthas not been used for a long period
  or beforetaking an importantpicture,alwaystry shootingto                                                                                       *b make sure that they functionnormally.In case of a problem,
  have your nearestMamiyaservicecenterinspectthem.
O Wnen the equipmentwill not be usedfor a longperiodof                F
  time, removebatteriesto preventmalfunction.
                           www.orphancameras.com                                                                            liv

@nr ULD210mmil4lF





  @nr 55-110mm il4.5





@nr ULD105-210mm114.5





@nr APo 300mmil4.5 lF
