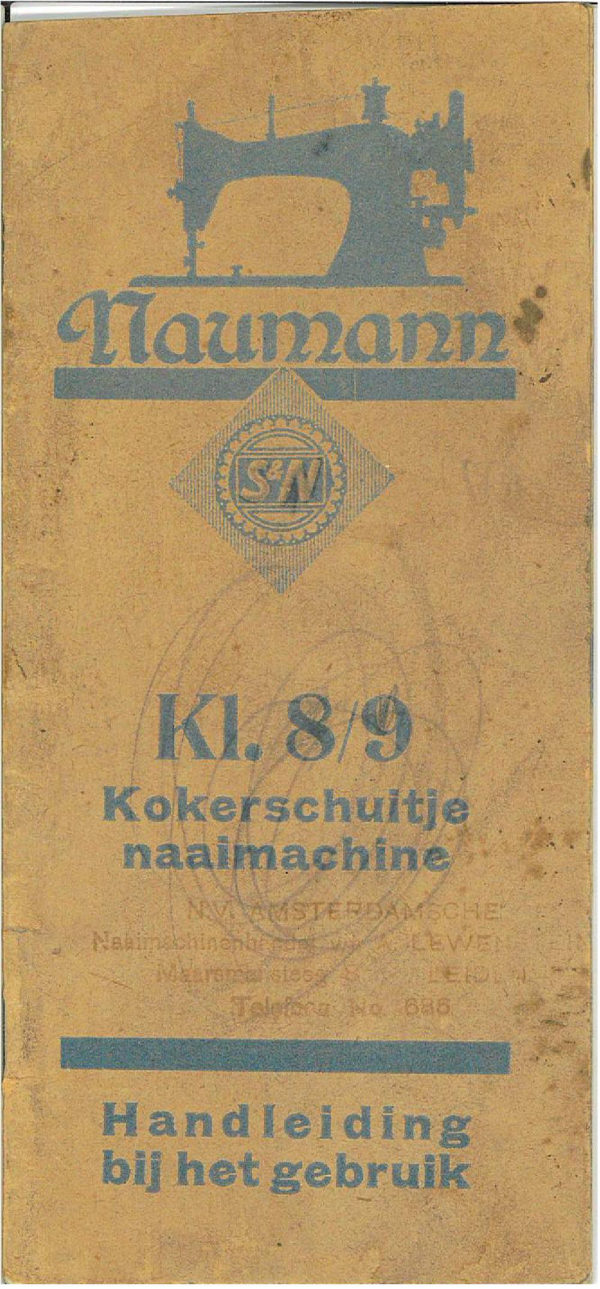

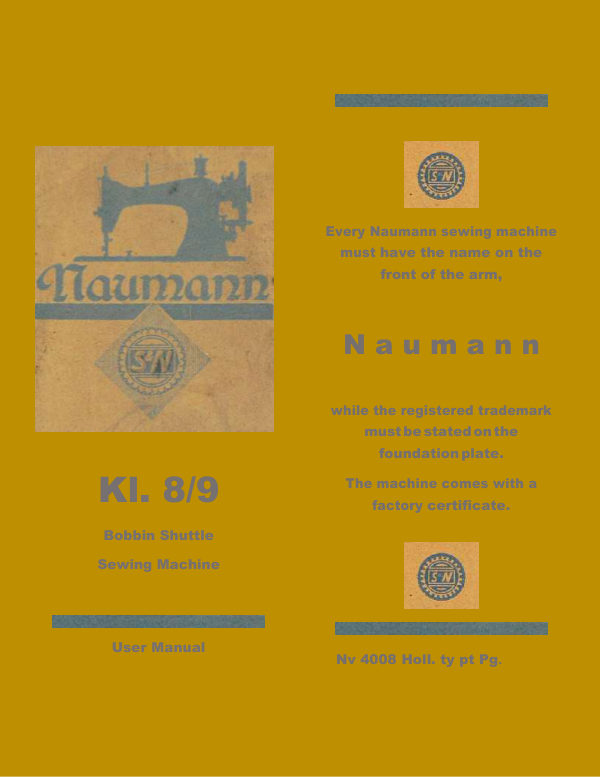

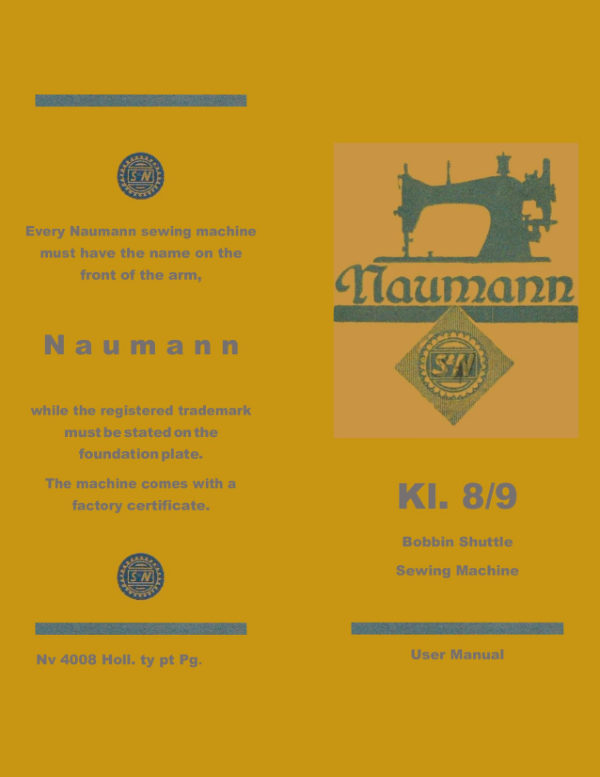

Page 1 · Read text
Every Naumann sewing machine
must have the name on the
front of the arm,
N a u m a n n
while the registered trademark
must be stated on the
foundation plate.
The machine comes with aKl. 8/9 factory certificate.
Bobbin Shuttle
Sewing Machine
User Manual
Nv 4008 Holl. ty pt Pg.View original page 1Page 3 · Read text
1. General Hints
Read this manual carefully and perform every movement on
the sewing machine. One should never use force. To lubricate
them, only use the prescribed sewing oil. Good results can
only be obtained if you use the needles prescribed for this
machine (see article 10).
If the machine should no longer run properly due to the
passage of time or due to improper handling, one should not
call in some mechanic, but go to our representative where
this machine was bought. He knows them best and has an
interest in keeping them in good order.
Shuttles, bobbins and other parts must always be purchased
from our representative.
2. The Drive Belt
When the packaging is removed from the machine, place the
belt in the belt slot of the flywheel and pass it through the
holes in the table top around the axis of the undercarriage
flywheel, then hook it together and turn the wheel one or
more times around.
Page 3View original page 3Page 4 · Read text
This is where the drive belt comes to rest on the drive wheel. The loosened again and can then be placed around the wheel,
belt should not be too tight, otherwise the machine will not run otherwise the box would not go over the top part of the
smoothly. If the belt becomes too loose after a while, it should be machine.
shortened proportionally.
3. Disengaging the Mechanism
If the knob "a" is turned in the direction of the arrow 1 (hold the
driving wheel), the mechanism is switched off. If the knob "a" is
turned in the direction of the arrow 2 (hold the drift wheel), the
mechanism moves with you when you pedal.
Figure 1a
Oiled through holes 1, 2, 3.
4. Treadle Exercise
Figure 1
3a. The Handcrank
The handcrank is only supplied with hand or treadle machines on
special order. It is attached behind the arm of the sewing machine
and is connected to the machine by a pawl "a" which engages in the
spokes of the wheel. By pressing a finger on "a", from the inside
out, the connection with the wheel can be broken again. The wheel
must be turned in the direction of the arrow. The crank 5 is held by a
spring-loaded pin 4 and is closed by retracting the pin-knot 4
Figure 2
The sewing is switched off, the driving wheel turns towards
oneself and the feet follow the movement of the treadle.
Then one practices pedaling and begins to learn nothing new,
until one has complete control over the movement of the
machine.
If one starts or
Page 4
Page 5View original page 4Page 5 · Read text
stops, the mechanism must never run in the wrong direction. takes out the shuttle. The bobbin will fall out of the shuttle by
The thread is threaded into the needle, the presser foot is itself.
raised by pressing the press lever "b" (Figure 2) upwards.
Place a scrap of fabric under it (some scrap, not actual
sewing) and lower the presser foot again. Care must be taken: After the shuttle has been placed in the
handles, both slides of the shuttle compartment must be
Now one begins to pedal and practices this until one has
closed before the machine is set in motion. Otherwise the
mastered the material. It is wrong to pull on the fabric, as this
shuttle may jump out and render the work useless. (Figure 4.)can bend the needle. The machine should never be started
with the presser foot down, without fabric underneath.
One should pay attention to the noise the machine makes
when it is running. The size of the kick should not
dominate.The tone of the machine should be a regular
whirring tone.
5. Removing the Shuttle
The sliding plate "c" (Figure 3.) is opened by turning the gear
wheel and the shuttle is brought into the forward position to
see exactly the places and how the thread has been inserted.
This will be useful in the following exercises.
Then one presses on the spring, which ejects the shuttle "d"
(Figure 3), and
Figure 4
6. Winding a Bobbin
The thread runs from the spool of thread through the rear
guide hole 1 (Figure 5.) between the two tension discs 2
through the slot in hole 3 of the lever, of the thread guide 4
and
Figure 3
Figure 5
Page 6 Page 7View original page 5Page 6 · Read text
is then inserted into the hole of the copper disk of the coil bobbin comes out.
from the inside out. Now the spring bolt 5 is pulled back
slightly and the disc with holes is placed in the thread winder
6 in such a way that it engages in one of the holes of its disc Hold the bobbin and the shuttle and guide the thread up to
and the thread is gripped thereby at the same time. Now you the end of the slot (Figure 7), then again vertically until the
start pedaling, after releasing the mechanism and pressing thread has slipped under the pointed part of the tension
lever 7 from below. The thread is now evenly rolled onto the spring and check the tension of the shuttle by pulling the
bobbin. When the bobbin is full, the thread winder will jump thread (Figure 8).
out of the drive wheel by itself.
8. Loading the Shuttle
7. Inserting a New Bobbin
Please make sure that the tray for the shuttle is fully forward,
One holds the shuttle with the left hand, with the point place the shuttle in it and close the slide c. (Afb.9)
turned towards oneself [Figure 6] and insert the bobbin in
such a way that the thread can be unwound from top to the
right so the blunt part of the
Figure 6 Figure 7
Figure 9
9. The Presser Foot
If you are sewing thin fabrics, it will be effective if you turn
screw "K" (Figure 10) back slightly (turn it counterclockwise)
to reduce the pressure on the fabric.
Figure 8 10. The Needle
To insert a new needle, raise the needle bar to its highest
point and insert the needle,
Page 9
Page 8View original page 6Page 7 · Read text
(flat side to the right) until she strikes from above. Then the (place in front) and is inserted from left to right through the
screw of the needle holder is tightened. eye of the needle. The thread should hang about 10 cm from
the hole.
Only needles 705 are used.
__________________________________________________
Type Cotton Yarn
No. 705 No.
Batist, netting, tulle No. 7 100 - 150
Very fine linen, fine
kaliko, fine silk fabrics No. 8 80 - 100
Linen, silk fabrics No. 9 60 - 80
Chunky linen, heavy
fabrics No. 10 50 - 60
Fine woolen fabrics,
Leather stitching No. 11 30 - 50
Woolen fabrics, Sheets No. 12 20 - 30
11. The Stitch Plate
The regular stitch plate should be exchanged with the small
hole stitch plate, which is provided when sewing with a thin
needle and thin thread.
When inserting the stitch plate, make sure that the needle is
positioned exactly in the center of the hole in the plate.
Figure 10
12. Threading the Upper Thread
13. Raising the Lower Thread
The upper thread runs from the thread spool 1 through the
The upper thread is held in the left hand, the gear wheel isthread eye 2 (hook in) between the two tension discs 3
turned and turned (towards oneself) and the thread is(insert in) through the spring 4 (hook in) through the hole in
tightened slightly, causing the lowerthe lever 5 through the hole 6 in the front plate (hook in from
behind) through the hole of needle holder 7
Page 10 Page 11View original page 7Page 8 · Read text
thread is raised. Now put both thread ends to the back and If there are loops on the underside (Figure 13), the tension of
hold them in your hand until the first stitches have been the upper thread is too weak.
sewn.
14. Sewing
Figure 13
Place a piece of fabric underneath for a trial sewing and begin
to sew. Do not pull or slide the work with your hands,
Which of both is the case can easily be determined by
otherwise the needle could easily break.
checking the tension of the threads by hand (that of the
upper thread with the presser foot loosened).
15. Thread Tension
16. Upper Thread Tension Adjustment
Look closely at the sewn seam. It should be the same as
Figure 11, i.e. the threads should join each other in the
If it is too strong, the nut "g" must be turned in direction 1
middle of the fabric. A stitch is perfect if it looks the same
(Figure 2) according to arrow.
from both sides.
17. Lower Thread Tension Adjustment
Figure 11 If the tension spring is too strong, the screw of the tension
spring is turned out slightly by means of the screwdriver that
is provided, but not so far that it protrudes outwards,
The tension of the upper thread is then equal to the tension otherwise the wire will get stuck on it and can break. If it is
of the lower thread. too weak, you must loosen the tension spring screw slightly.
The machines are always regulated before they are delivered.
Figure 12
If there are clear loops at the top (Figure 12), then the
tension of the upper thread is too strong or the tension of the
lower thread too slight.
Figure 14
Page 13Page 12View original page 8Page 9 · Read text
18. Stitch and Reverse Sewing Regulator 20. Skipped stitches
The cause can be:
The adjuster (Figure 15) allows precise control of the stitch
length.
a) that the machine has been twisted due to improper
handling,
b) the needle is bent, too low, or misplaced,
c) the thread is too thick, the needle is too fine.
21. An Uneven Seam
occurs when:
a) the bobbin is wrong and set, so that the thread is pulled
away in the wrong direction,
b) the top and bobbin threads are not precisely controlled by
the tensions (see Article 15 Side 12-13),
Figure 15
c) Fabric, thread and needle do not match, so needle or
If the knob screw "i" is set to 0 -- the fabric will not be fed at
thread is too thick or too thin,
all, if you press it down, the stitches will become longer and
longer. d) the bobbin is not evenly wound.
If you want to sew backwards with the same length of stitch, 22. Machine Maintenance
then screw in the screw "i" until it stops and it is knocked
upwards over the zero point.
The machine must always be kept clean and well oiled.
19. The Thread
can break, when
a) the stitch plate hole is rough or the needle is bent,
b) if the thread tension is too great,
c) the thread is too thick or not evenly thick or the needle is
too fine,
d) the slide tension screw has been unscrewed too far,
Figure 16
e) if instead of the large-hole needle plate, the small-hole
plate is taken using thick needles and thick thread. The lasts, where lubricated must be modern, are indicated by a dot
and a. To
f) if the wrong type of needle is used,
g) the needle is not seated properly.
Page 15
Page 14View original page 9Page 11 · Read text
24. Attachments For the Sewing Machine the cove of the hemmer, to the needle. Then one takes the
fabric, pulls it in the seamer as the picture shows, and
carefully begins to sew.
The Sewing Machine
The fabric should be guided in this way during sewing. That
To sew over, place two pieces of fabric on top of each other, the hemmer is completely filled and the seam in the cove is
but leave the edge of the piece underneath to protrude about turned sufficiently. But there should never be too much walk
4 mm. The protruding side alone must match the hemmer. in. This happens very lightly when the fabric in front of the
Walk through the sewing machine. In this way the two pieces hemmer's cove is pressed in too much by hand. By training
are sewn together. one will soon learn the right way.
The Wide Hemmer
Then the fabric is laid out, the seam is smoothed and the lace
that is now formed is passed one more time through the
sewing machine to sew it flat.
It is used for hemming very thick fabrics or two fabrics at
once. The use is exactly as described above. Also beautiful
seams can be achieved with the broad seamer, as described
The Hemmer for Narrow Hems
above with the sewer.
After the hemmer has been screwed on in place of the
The Sliding Hemmer
normal presser foot, bring the beginning of the fabric to be
hemmed and which has been turned 1 mm wide with a
pointy object as far as it will go.
The sliding hemmer is closed when the ruler is tightened with
the knob screw.
Page 18 Page 19View original page 11Page 12 · Read text
screwed and is used for sewing particularly wide or thick
seams. One proceeds exactly in the same way as with the
narrow seamer, by bringing the bent beginning of the fabric
into the cove under the needle and making sure that there is
always enough fabric in the seamer, so that the edge turns
twice.
eyelet for thread to presser foot. This has, as shown, an
oblique opening through which the braid is pulled
downwards, so that it lies just under the needle during
sewing. With some practice one will quickly become familiar
with the use, as with the other feet.
The Ruler and Knob Screw
To use this hemmer for hemming of different widths, loosen
the screw in the groove. The plate and division can then be When a seam has to be made that must run parallel to one
side, the ruler is screwed onto the plate with the appropriatemoved. The narrowest hem is obtained when the pointer is
set to 0; the higher the number one takes, the wider the screw, which fits into the hole to the right of the stitch plate.
seam becomes. The loosened screw must be retightened
before sewing.
The Sliding Braider
The braid is wound smoothly on a bobbin, put it on top of the
pin and the braid through the
Depending on the desired distance from the side of the
fabric, the fabric, one puts the
Page 20 Page 21View original page 12Page 13 · Read text
straight side of the ruler less or more away from the needle. The ruffler
The ruler is also useful for sewing pleats and folds or for With the help of this simple tool one can catch up on the
sewing one seam next to another in the same direction or in a bottom one of two fabrics placed on top of each other, while
straight direction. This saves time-consuming drawing lines. the top one remains smooth. The fabric to be drawn up is
placed under the ruffler on the fabric slider and that which is
to remain smooth, scrub in the slide of the inhaler. The fabric
slider only reacts to the bottom fabric, leaving the other The Sliding Ribbon Trimmer
behind. The bottom fabric will then lie in small pleats. The
larger the stitch is made, the larger the pleats become. You
get dense folds when you put on the outer fabric. For large
The ribbon trimmer is used to trim clothes and laundry.
tailoring companies and for the manufacture of laundry it is
recommended to purchase the self-inhaler and the self-
folder, which can be ordered from the seller of the machine
or from the factory.
Pinning on the tape is saved. The band is placed between the
two hooks (holders) in such a way that it moves loosely
between them and the borders are made in this position (like
the ruler) with the screw on the plate. The fabric is now
placed under the presser foot, between the two hooks that
The Quilteralready hold the band, so that it lies around the fabric and
can thus be sewn.
This is important when sewing quilted pieces. With the help
of these, one can sew rows and squares of equal width,
without
Page 23
Page 22View original page 13Page 14 · Read text
they need to be signed in advance. The quilter, a bent piece 25. Notes on Embroidering and Darning
of metal, is passed simultaneously through the lateral holes in
the quilting bracket and into the conveyor rod, as shown in
the drawing, and fastened to the conveyor rod with the screw Preparation of the Machine
in the back of the bracket. It can be set wide or narrow.
At the highest position of the needle, the presser foot with
the screw is removed. Then the conveyor rod is lowered so as
not to preclude the tension of the upper thread. In order to
be able to manually control the movement of the embroidery
frame when embroidering and darning and thus change the
length and direction of the stitches as necessary, the needle
plate is exchanged for the embroidery stitch plate (see Fig.
19).
Thread and Needle
When darning, use good machine darning thread No. 50 or
First make a straight seam, which has been drawn, then slide no. 60.
the fabric as far to the right of the seam as the rows should
be apart, and then fasten the quilt so that the bottom part
just falls on the first seam. When sewing further, you should
make sure that the seam in question is guided exactly along
the quilter. The same is done with the following seams and
square.
Figure 19
For embroidering, the best machine silk or colorfast
embroidery thread is used for the upper thread,
Page 24
Page 25View original page 14Page 15 · Read text
while for the bobbin thread also machine thread No. 50 or held by hand until the first stitches are done. The needle is
no. 60 takes. The gauge of the needle should be in proportion inserted about 1/2 cm in front of the hole and now with quick
to the thread, about No. 7 or no. 8. pedaling and slow, regular sliding of the window (Figure 20),
short stitches are sewn across the hole, also 1/2 inch past the
hole.
Embroidery Frame
The fabric that one wants to darn or embroider is stretched in
an embroidery frame and then it is smoothed out. If the
window does not close properly, one can make do by moving
the outer frame, by means of a screw or by wrapping the
inner frame with fabric.
Figure 20
The Darning
also serves as a preliminary exercise for embroidering. The
Figure 21lower thread is pulled upwards and both ends of the threads
are
Thus, by sliding the window forwards and backwards, one
lays seam after seam in the same weaving threads (Figure
21), until the whole hole is evenly covered. Now one turns
the window a quarter of a turn, and stops in the same way
across it until the hole is completely covered. If the hole is
very large, the hole can be tightened, which is darned on both
sides and then darned across the hole across the darning
cotton.
Embroidery Flowers
If one has obtained some certainty by darning, then
Page 26
Page 27View original page 15Page 16 · Read text
to start embroidering simple and easy patterns. Open Hem (Fig. 25)
Figure 22 Figure 23
The pre-drawn outline must be exactly followed, the threads Figure 25
somewhat direction and position are treated exactly as with
the hand embroidery. can be made not only faster with the machine, but also much
finer than by hand. After the necessary threads have been
drawn out, at the simple open seam the threads that remain
are tied together at the edge by means of cross-stitching. The
order of the stitches is shown by the arrows on 25. If the
threads are gathered in the middle, one goes ahead with a
normal stitch and summarizes the necessary number of
threads with grappling stitches. If you want to create a special
embellishment, you can draw another wave-shaped sewing
stitch through the open seam when it's finished.
Embroidery
The fabric is first sewn with small stitches and then cut out
according to the pattern. Then begin the lace stitch and draw
the longitudinal seams in equal distances over the cut fabric,
moving the steps and the fabric back at the same time, after
Figure 24 which the longitudinal seams are crossed with transverse
seams.
The bobbin thread should always be fine, (yarn No. 100 to
150). Each transverse thread must be connected to the longitudinal
thread by crossing over.
Page 28 Page 29View original page 16Page 17 · Read text
small, round buttons are obtained. If you let these places go embroidered over with even, closely spaced cross stitches.
around the needle several times. After finishing the pattern,
make
Figure 26
Figure 28
a thin cord around the cut places and embroider over that
cord. In this work one should use embroidery silk of the same
color and the
You can also use ordinary thread as bobbin thread for
embroidering letters.
Prick Patterns
Finally, the machine can also be used for pricking patterns as
a direct substitute for a special machine and even the most
difficult drawings can be pierced. For this, however, a special
needle without an eye must be used, which can be obtained
from the dealer or the manufacturer.
Figure 27
tighten the tension of both threads a little more than with
normal embroidery.
Embroidery Monograms
The pre-drawn letters are first worked with long stitches, as
appropriate, and then
Page 30 Page 31View original page 17Related documents and language editions
From the ISMACS International. Original publisher and archive notices are retained.
Check the model and edition against your equipment.
PDF verified 2026-10-11.
