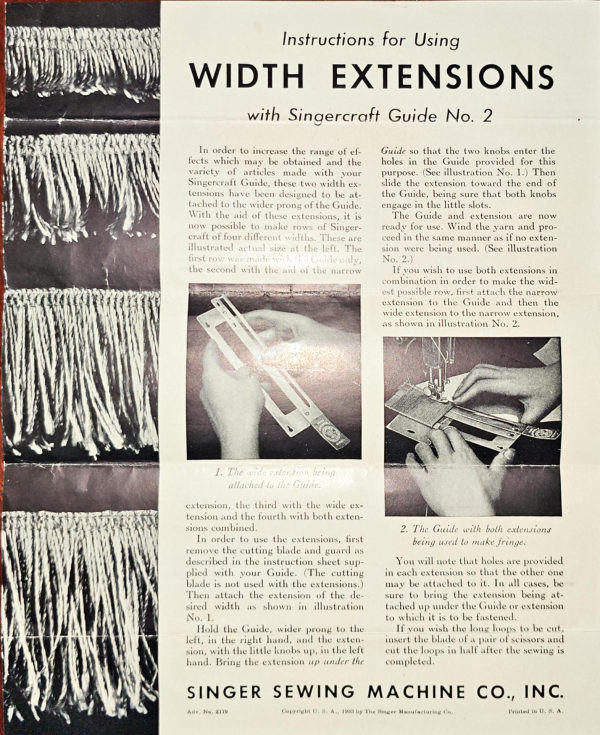

Instructions for Using
  WIDTH EXTENSIONS
        with Singercraft Guide No. 2

   In order to increase the range of   et     Guide so that the two knobs enter the
 fects which may be obtained  and the     holes in the Guide provided   for  this
                                                                                                            1.) Then variety  of   articles  made  with  your    purpose.  (See illustration   No.
 Singercraft Guide,these two width  ex      slide the extension  toward  the end  of
 tensions have been  designed tobe  at     the Guide, being sure that both knobs
 tached  to the wider prong of the Guide.     engage in the little  slots.
 With the aid of these extensions,  it  is     The Guide and extension  are now
 now possible to make rows of  Singer      ready  for use. Wind  the yarn and pro
 craft of four different  widths. These are     ceed in the sane manner as if no exten
 illustrated    actual  size at the left. The     sion were being used.  (See illustration
 first  rowy was made with   eGuide only,    No. 2.)
 the second with  the aid of the narrow            If you wish  to use both extensions  in
                                              combination   in order to make the   vid
                                                      est possible row,first  attaclh  the narrow
                                              extension  to the Guide and then the
                                        wide extension to the narrow extension,
                                    as shown in illustration No. 2.





           1. The wide cstrnston bsing
            allachedto lie Guide.

extension,  the third with  the wide   ex
tension and the fourth with both   exten
sions combined.                            2.The Guide with bolh extensions
  In order  to use  the extensions,   first            being used  to make fringe.
remove the cutting  blade and guard as
described   in  the instruction sheet sup      You will note that holes areprovided
plied  with your Guide. (The cutting      in each extension  so that the other one
blade  is not used  with the extensions.)    may be attached  to  it. In all cases, be
Then  attach  the  extension  of the de     sure  to bring  the extension  being at
sired   width   as shown  in  illustration     tached up under tlhe Guide or extension
                                                                                                    it  is to be fastened.No.                                           to which
  Hold the Guide, wider  prong  to the           If  you wvish  the long loops to be  cut,
left,  in the right hand, and the  exten       insert the blade of a pair of seissors and
sion, with  thelittle knobs up, in the left     cut the loops  in half after the sewing is
                                              the     completed.hand. Bring the extension p under
 SINGER SEWING MACHINE CO., INC.
 Adv. No,  2179                  Copyright  U, 8. A,, 1938 by 'The Singer  Manufacturing   Co,                       Printed   in U. S. A.
