Page 2 · Read text

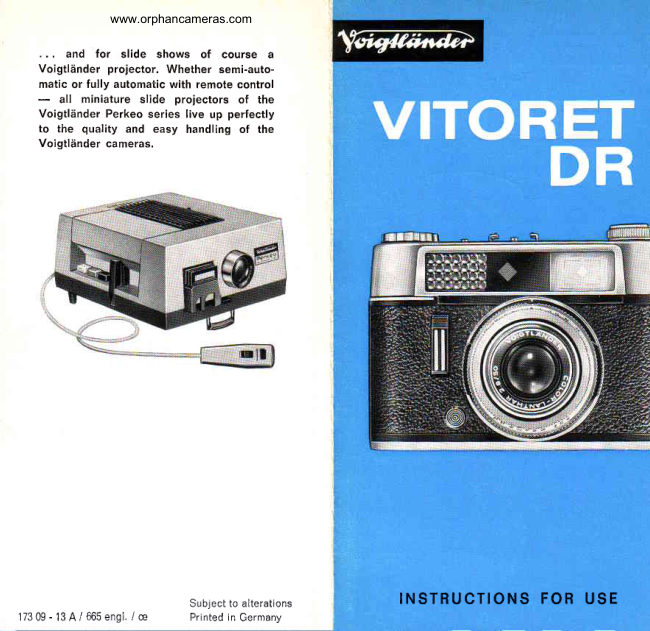

www.orphancameras.com

       . . .  and  for  slide shows  of  course a
   Voigtl?inder projector. Whether semi-auto-
   matic or fully automatic with remote control
     -    all  miniature slide proiectors of  the
    Voigtliinder Perkeo series live up perfectly
    to the quality and easy handling of the
    Voigtliinder cameras.





                                Subject to alterations                         I N S T R U C T I O N SF O R U S E
1 7 3 0 9 - 1 3 A / 6 6 5 e n g /l e          Printed in Germany

View original page 2

Page 4 · Read text

www.orphancameras.com
The built-in Lightmeter Setting the distance
makes it easier for you to get the correct aperture In the centre of the crystal-frame finder you can
for whatever shutter-speed is used. see the bright circular field of the coupled range-
finder. As long as the subject is not correctly
Instructions:Move scale, by pushing the milled focused, the latter appears with double image in
square (e), to either left or right until the film- the rangefinderfield.speed (for instance 1B DIN or 50 ASA) appears in
either window (d) or (f). Now focus on the subject Turn focusing (1) until the double outlines fuse
and turn the setting ring (b) until the two pointers into one image. Now the camera is set for the
in the lightmeter window (a) precisely cover each correct distance.
other. Now you can read off any combination of
shutter-speed-aperture(c) and transmit both to the
setting rings on the lens barrel.

i+:E

Of course, you can also use the footage scale
or the red snapshot markings for focusing:
O (4112feet) = Portraits, V (11 feet) = GrouP,
O (33 feet or more) : landscapes.

Shutter-speed setting
Turn shutter-speedring to the selected speed. The The crystal-frame inside the viewfinder
correct speed 1/soo,1/'tzs,1/ao,1/towill then be pro-
perly set off in the shutter mechanism when the outlinesclearly in life-sizethe pictureyou will get.
shutter is released. On short subject distance the two small lines
within the finder witl indicate the limitations of "8"On setting the shutter will stay open as long the picture area - between 3 and 7 feet either
as the release is kept depressed. For this purpose horizontallyor vertically.
the camera has to be put on a tripod and a cable
release has to be used (12).

The Rapid-wind
Setting the aperture Always turn one full swing, thus cocking the
shutter, transporting the film, and advancing the
Turn aperture ring (4) by using the two black frame-counter.There is also an automatic double-
handles and set the selected lens opening opposite ex.posureprevention in connection with the shutter
the index marking. release.

View original page 4

Page 5 · Read text

The Shutter release
Press quickly and smoothly - do not jerk, this
may otherwise result in blurred pictures.

Aperture and Depth of Field
The depth of field is that zone of the picture which
is sufficiently and sharply rendered' in front, as
well as behind the focused distance. lt is taken
from the distance in feet opposite the selected
aperture on the depth of field scale (2) to the
distance setting opposite the same aperture value
on the other side of the A mark.
Please remember: When using a large aperture
(2.8 or 4) you will get a short depth of field. When
using a smaller aperture (11 or 16) you will get
a large depth of field.

Flash shots
The camera is X-synchronized.The flash unit is
connected with the camera thru the flash contact
(19). When using flash bulbs (Type XM-1/PF-1 or
AG-1) the shutter-speed must be 1/so(not above).
When using electronic flash units, all shutter-
speeds up to 1/roocan be used.
The Guide number of the respective flash bulbs
or unit has to be used in order to figure out the
correct aperture.This guide number can usually be
found in the instructionscoming with the equipment.

Practical Accessories
o For black and white or color film there is a range
of Voigtlrinderf ilters in various colors and densitiel.
o For close-up shots there is the Voigtliinder
PROXIMETER.
o The Voigtliinder sun-shade not only keeps out
all stray light,which may spoil thecontrastand the
picture sharpness,but is also useful for protecting "badthe lens in weather" shots.

View original page 5

Page 6 · Read text

www.orphancameras.com
Loading the camera
o Press spring catch (5), open camera back and
pull knob all the way out (6). See No. I
r Attach film to the take-up spool (16) with one
hole of the perforation.Pull the film across the
film channel, drop film casette into place, and
push the rewind knob all the way back. See No. ll
. Press down button (11) and turn take-up spool
at the milled edge until both sides of the perfora-
tion are engaged on the sprocket of the transport
spindle (17). Now close camera back. See No. lll
. Turn film counter (14) until the diamond mark I
on the 36 exposure, respectively the O on the
20 exposure, appears opposite the red dot. Now
operate rapid wind (10) and release (7) alter-
natively until the counter is set to either 36 or 20.
Now the counter will automatically show the
number of frames left each time the film is
advanced.

Film advance control
Once the film has been properly loaded, the
rewind knob should turn anti-clockwisewith every
advance stroke. The turning of the rewind knob
will start after about 3 to 6 frames depending on
the film tension in the cartridge.

Unloading the camera
Press down button (11) and hold in that position.
Swing out crank and return film (6)until the I mark,
respectively O mark, appears once again in the
counter window. Release button, open camera
back, pull rewind knob all the way out, and remove
cartridge.

Changing partly exposed film
Make a note of the last frame taken, then remove
and reinsertfilm, partly exposed,just as described
above. Then press down shutter release, let go,
press again and keep depressed. Now wind the
film thru the camera until the counter shows once
more that f rame number last exposed. Let go
shutter release and advance one frame. Now the
lllustr.lll rest of the film can be exoosed in the usualfashion.

View original page 6

Page 7 · Read text

Guarantee
In common with all other Voigtliinder products, a               and  for  slide  shows  of  course  a
guarantee certificate is enclosed with this camera.             Voigtllinder projector. Whether semi-auto-
Please check that your dealer duly fills in and                                                            matic or fully automatic with remote controlstamps this certificate. Only then will you be sure                                                                                                 -    all  miniature slide  projectors  of  thethat   if  the camera needs attention within the
duration of the guarantee -   as shown on the             Voigtldinder Perkeo series live up perfectly
certificate -  that this will be given free of charge              to  the  quality and easy handling of  the
by one of our appointed service agents or by the                                                               Voigtldinder cameras.factory itself.
Keep the guarantee certificate even  after the
expiry date. ln case of loss you will need to refer
to the camera and lens numbers registered on
the certificate.





                                                                                              Subject to alterations
                                                        17309 - 13 A  / 665 engl. / e         Printed in Germany
